RACKTEL RL-4506WR armario de pared de 19 pulgadas 6U 600x450 mm negro

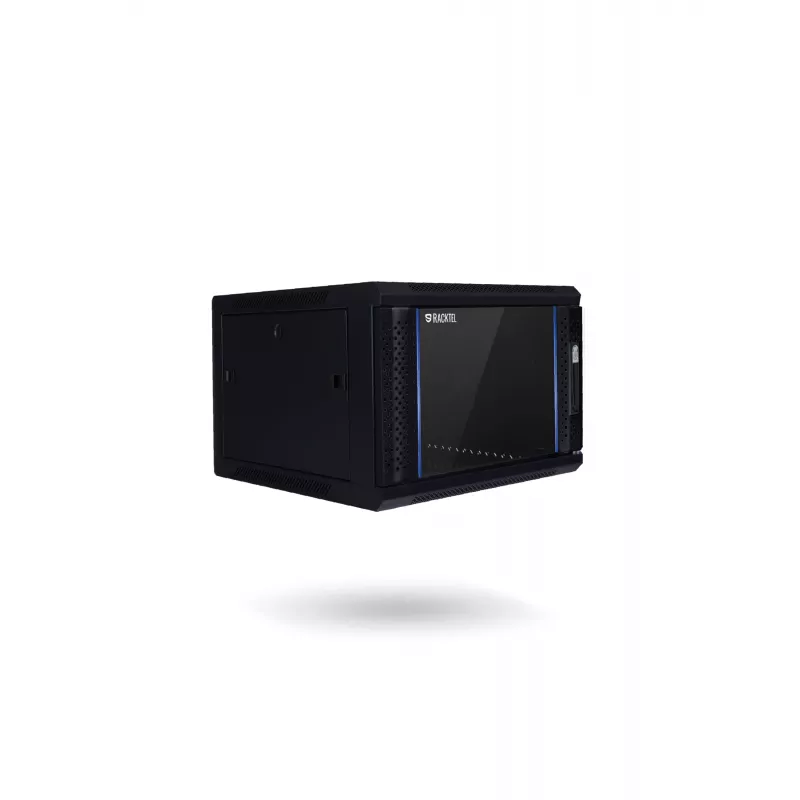

The RACKTEL RL-4506WR is a high-quality 6U wall-mount rack cabinet designed for secure and organized installation of 19-inch network and IT equipment. With a compact external size of 600x450x360 mm (WxDxH), it is ideal for small to medium-sized setups where space is limited. The cabinet is supplied as a flat-pack for easy assembly and features a tempered glass front door with lock, removable lockable side panels, and adjustable depth mounting profiles. Constructed from durable SPCC cold rolled steel with a black powder-coated finish (RAL 9005), it offers a load capacity of up to 60 kg. Cable entry is provided at top and bottom with knockouts/brush strips, and the top panel is fan-ready for active ventilation. The cabinet meets IP20 protection rating.

Advantages

Space-saving wall-mount design with 6U capacity, robust steel construction, lockable glass door for equipment visibility and security, adjustable mounting profiles for flexible equipment installation, and easy cable management with top/bottom entry.

Suitable for

• Network switches, patch panels, and routers
• Small server and AV equipment
• Telecom and IT closets
• Retail, office, and home network installations

Key specifications

• Rack Units: 6U
• Rack Standard: 19-inch
• Mounting Type: Wall-Mount
• External Dimensions: 600 x 450 x 360 mm (WxDxH)
• Material: SPCC Cold Rolled Steel
• Door: Tempered glass front door with lock
• Side Panels: Removable, lockable
• Load Capacity: 60 kg
• Color: Black (RAL 9005)
• Protection Rating: IP20
• Assembly: Flat-pack (unassembled)
• Included: Mounting hardware, 2 keys for front door, 2 keys for side panels

Recommendations

Ensure the wall is capable of supporting the cabinet's weight (up to 60 kg fully loaded). Use appropriate wall anchors (not included). For optimal airflow, consider installing optional fans in the top panel.
