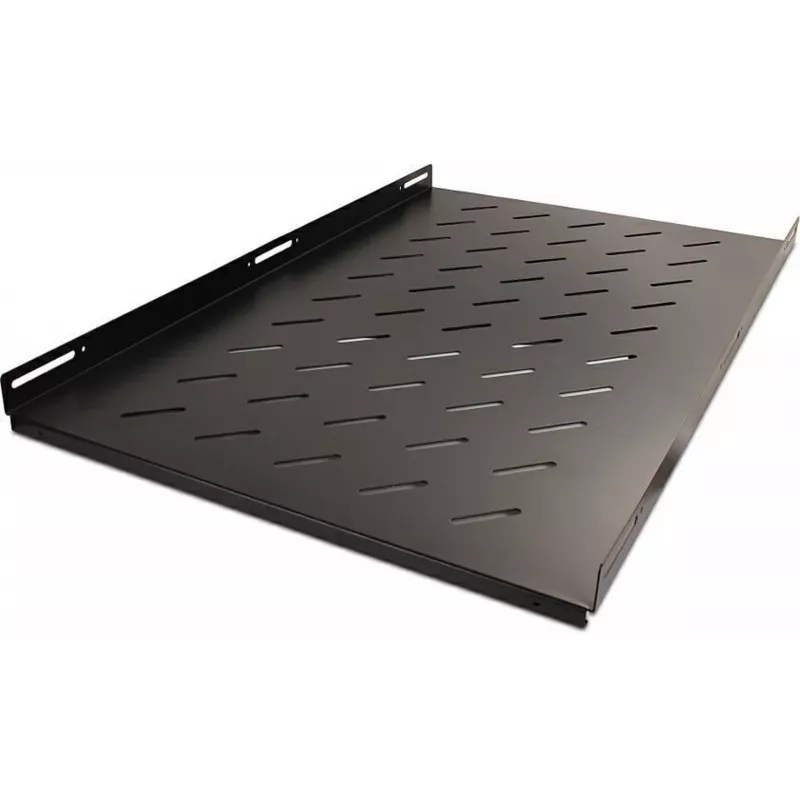

RACKTEL RL-P1000S Bandeja fija 19" 1U fondo 1000 mm capacidad 80 kg negra

The RACKTEL RL-P1000S is a robust 19-inch 1U fixed shelf designed for professional server and network cabinets. With a depth of 1000 mm and a load capacity of 80 kg, it provides reliable support for heavy equipment such as servers, switches, and patch panels. The shelf is made from high-quality steel with a powder-coated black finish (RAL 9005), ensuring durability and a sleek appearance.

Advantages

This shelf offers a sturdy, non-vented surface ideal for mounting equipment that requires solid support. The 4-point mounting system ensures secure attachment to front and rear rack posts, compatible with square holes for cage nuts. Its 1U height maximizes space utilization in standard 19-inch racks.

Suitable for

• Server cabinets and network cabinets
• Mounting heavy network equipment, servers, and UPS units
• Data centers, server rooms, and IT installations

Key specifications

• Rack Standard: 19 inch
• Rack Unit Height: 1U
• Shelf Depth: 1000 mm
• Load Capacity: 80 kg
• Material: Steel
• Colour: Black (RAL 9005)
• Finish: Powder coated
• Usable Width: Approx. 450 mm
• Mounting Hole Type: Square (for cage nuts)
• Installation Position: Front and rear rack posts
• Product Series: RL Series

Recommendations

For optimal performance, ensure the rack cabinet is securely anchored and the shelf is mounted using appropriate hardware (cage nuts and screws, not included). Verify that the total weight of installed equipment does not exceed 80 kg.
