Reely XT150 Set de conectores chapados en oro, 150A, negro XT150 negro

Handle up to 150 A continuous and 200 A peak with gold-plated copper contacts that keep resistance below 0.4 mΩ. This XT150 set gives you a secure snap-on connection for high-power RC models, drones, and LiPo battery setups.

Overview

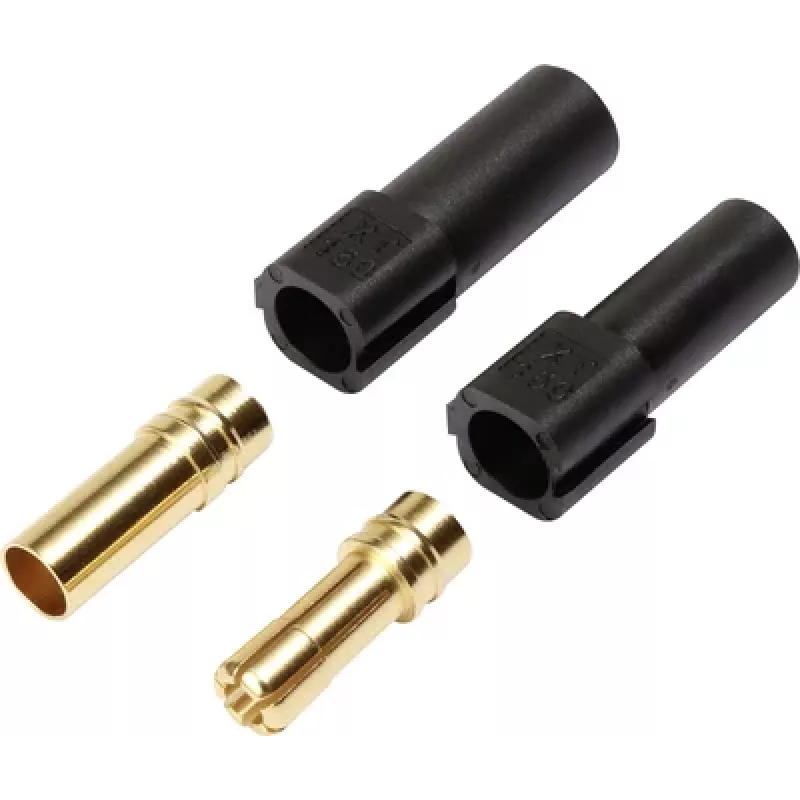

The Reely XT150 connector set includes one male plug and one female socket, both with gold-plated copper contacts for maximum conductivity. The high-temperature nylon housing withstands -20°C to 120°C and meets UL94 V-0 flammability standards. Solder terminals accept wire up to 6 AWG (16 mm²), making it suitable for demanding current loads.

What stands out

• Gold-plated contacts for low contact resistance and corrosion resistance
• Secure snap-on locking mechanism prevents accidental disconnection
• High-temperature nylon housing with UL94 V-0 rating
• Supports up to 500 V DC and 200 A peak current

Technical details

• Connector type: XT150
• Gender: Male & Female (set)
• Contact material: Gold-plated copper
• Housing material: High-temperature nylon
• Max continuous current: 150 A
• Max peak current: 200 A
• Max voltage: 500 V DC
• Wire gauge compatibility: Up to 6 AWG (16 mm²)
• Colour: Black
• Number of poles: 2
• Connection method: Solder
• Temperature resistance: -20°C to 120°C
• Contact resistance: < 0.4 mΩ
• Insulation resistance: > 2000 MΩ
• Quantity per pack: 1 set (1x male plug, 1x female socket)
• Locking mechanism: Secure snap-on design
• Flammability rating: UL94 V-0

Our verdict

For high-current RC applications, the Reely XT150 connector set delivers reliable low-resistance connections with a robust, heat-resistant build.
