Refrigeración líquida THERMALTAKE - TH360 V2 Ultra ARGB Sync All-In-One

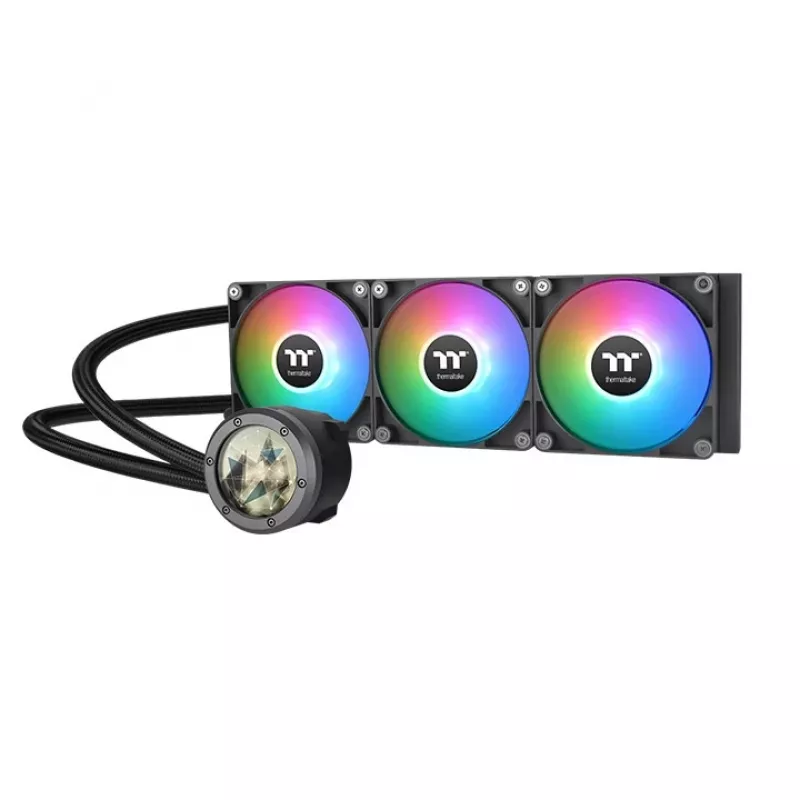

The Thermaltake TH360 V2 Ultra ARGB is an all-in-one liquid cooler with an industrial cap that integrates a 480 x 480 resolution LCD display. It comes fitted with three CT120 ARGB 120 mm fans and is designed for medium to large PC cases that support 360 mm AIO radiators. The unit features a black finish and supports a wide range of CPU sockets, offering a balance of cooling performance and customizable lighting.

Advantages

The TH360 V2 Ultra ARGB combines an LCD display on the pump cap for visual customization with three high-speed CT120 ARGB fans that operate between 500 and 2000 RPM, delivering up to 2.23 mmH2O air pressure. Its all-in-one design simplifies installation compared with custom loops, and the included ARGB lighting provides synchronized aesthetics with compatible motherboards and controllers.

Suitable for

• Gaming desktops and enthusiast builds requiring 360 mm AIO cooling
• PC cases that can accommodate 360 mm radiators
• Users who want an LCD display on the pump cap for custom graphics or system information
• Systems using supported Intel and AMD sockets (LGA 1700, LGA 1200, AM4, AM5, etc.)

Key specifications

• Type: All-in-one liquid cooler

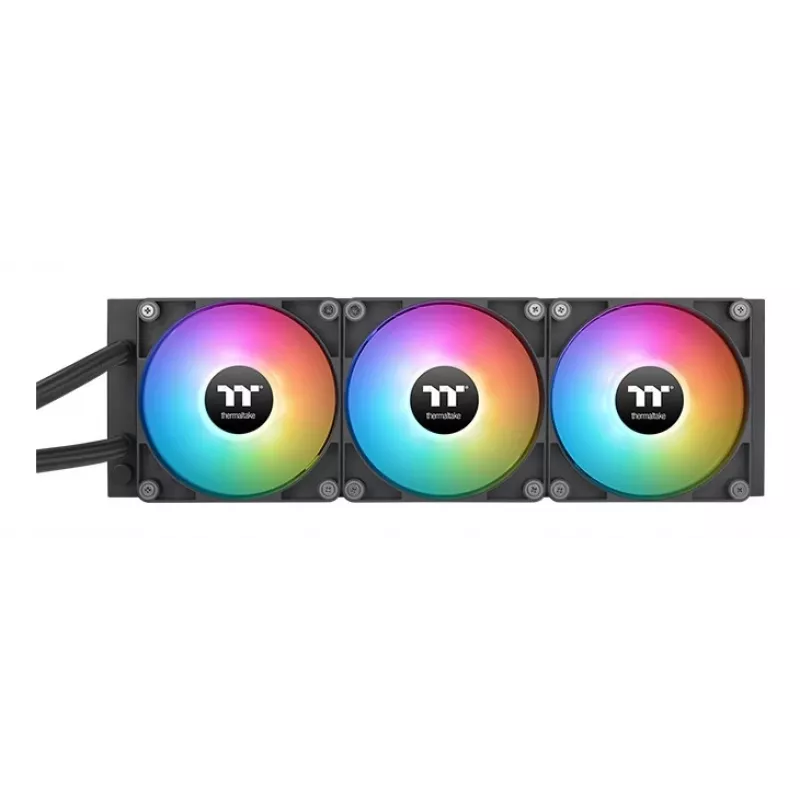

• Fan diameter: 120 mm (three CT120 ARGB fans)
• Fan speed: 500–2000 RPM
• Maximum air pressure: 2.23 mmH2O

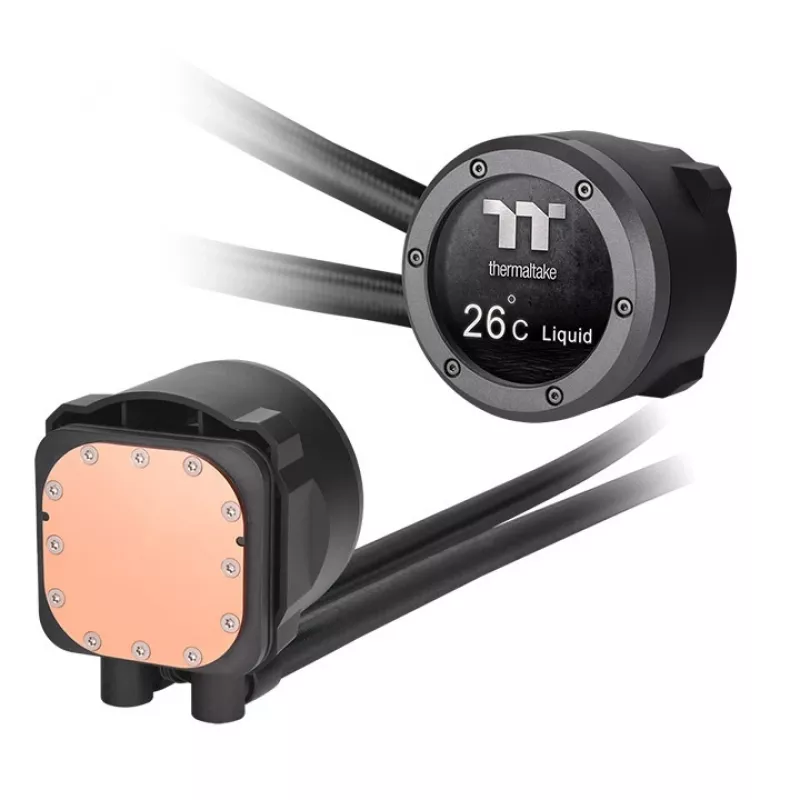

• LCD display: 480 x 480 resolution on pump cap
• Colour: Black
• Supported sockets: Intel LGA 1150/1151/1155/1156/1200/1700/2011/2011-v3/2066; AMD AM2/AM2+/AM3/AM3+/AM4/AM5/FM1/FM2
• Brand / MPN / EAN: THERMALTAKE / CL-W384-PL12SW-A / 4713227537940

How to use

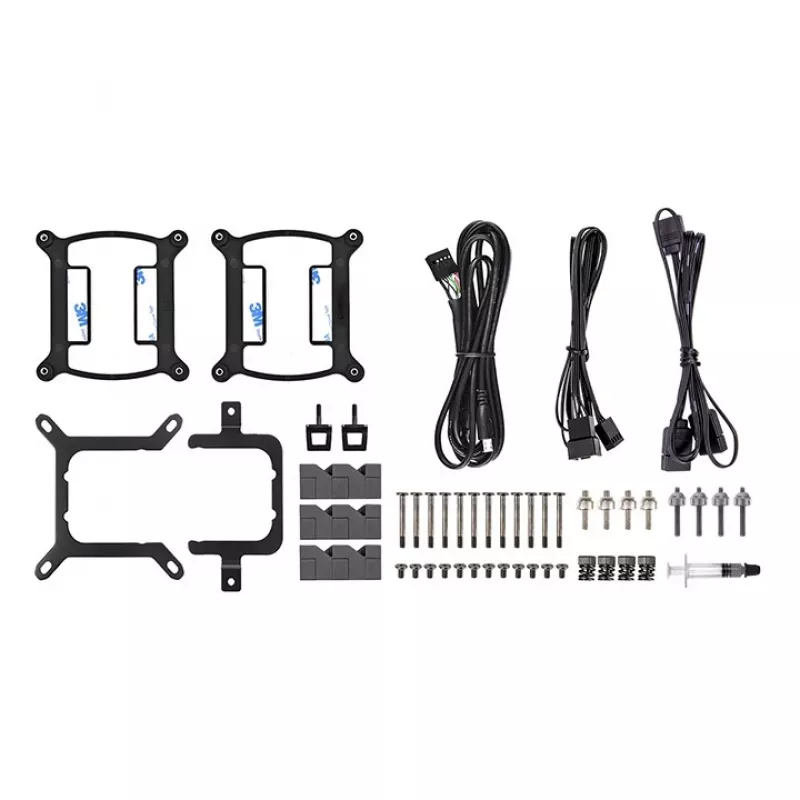

Follow the included installation manual for mounting the radiator, fans and pump unit. Position the 360 mm radiator in a compatible case location (top, front or side per case support), attach the three 120 mm CT120 ARGB fans in the recommended airflow orientation, and secure the pump to the CPU using the appropriate bracket for your socket. Connect the pump power and ARGB and fan headers to the motherboard or compatible controllers, then verify pump operation and fan speeds in BIOS or with monitoring software.

Recommendations

Ensure your case supports a 360 mm radiator before purchase and verify clearance around memory modules and VRM heatsinks. Use motherboard ARGB synchronization or a controller for consistent lighting, and periodically check fan and pump connections and tubing for secure fit and proper operation.
