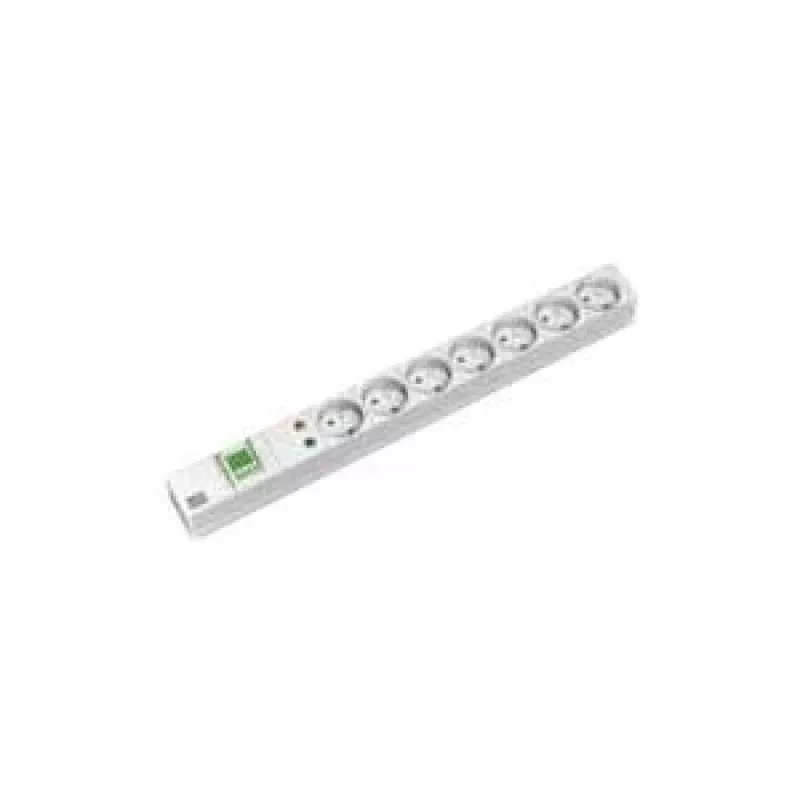

Regleta de enchufes Bachmann 333.838 7 salidas AC 1U gris

The Bachmann 333.838 is a 1U power distribution unit designed for reliable and compact rack-mounted power management. It provides seven AC outlets and a 2.0 m H05VV-F 3G 1.5 mm2 supply cable with a right-angle earthed plug and an integrated switch, and includes over-voltage protection for safer operation in IT and AV installations.

Advantages

This power distribution unit combines a compact 1U form factor with seven AC outlets, enabling multiple devices to be powered from a single rack position. The 2.0 m H05VV-F 3G 1.5 mm2 cable with right-angle plug facilitates installation in tight spaces, while the built-in switch allows convenient local control. Over-voltage protection increases equipment safety and reduces risk of damage from electrical transients.

Suitable for

• Rack-mounted network equipment and servers in 19" cabinets
• AV racks and professional audio/video setups
• Workstations or lab benches requiring centralized, compact power distribution

Key specifications

• Brand: Bachmann
• Model / MPN: 333.838
• Form factor: 1U rack-mount
• Number of AC outlets: 7
• Cable: 2.0 m, H05VV-F 3G 1.5 mm2
• Plug: right-angle with earthing contact
• Switch: integrated on/off switch
• Protection: over-voltage protection
• Colour: Grey
• EAN: 4016514031917

How to use

Mount the unit in a standard 19" rack occupying 1U of vertical space and secure it with appropriate screws. Connect the 2.0 m supply cable to a suitable earthed mains socket using the right-angle plug. Plug devices into the seven AC outlets and operate the integrated switch to control power to connected equipment. Verify that the rack and connected devices conform to the unit's specifications and that earthing is present.

Recommendations

Install the Bachmann 333.838 in a well-ventilated rack environment, avoid overloading the unit beyond the rated current of connected outlets, and ensure reliable earthing. For critical equipment, consider using this PDU together with surge protection devices and an uninterruptible power supply (UPS) for enhanced power continuity.
