Regleta de enchufes LogiLink PDU8C01

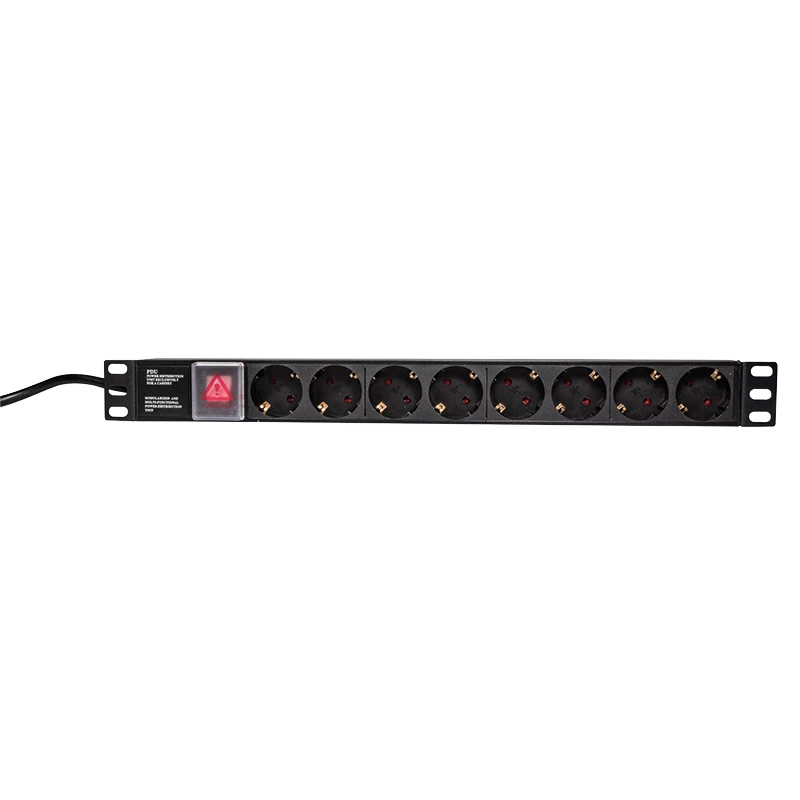

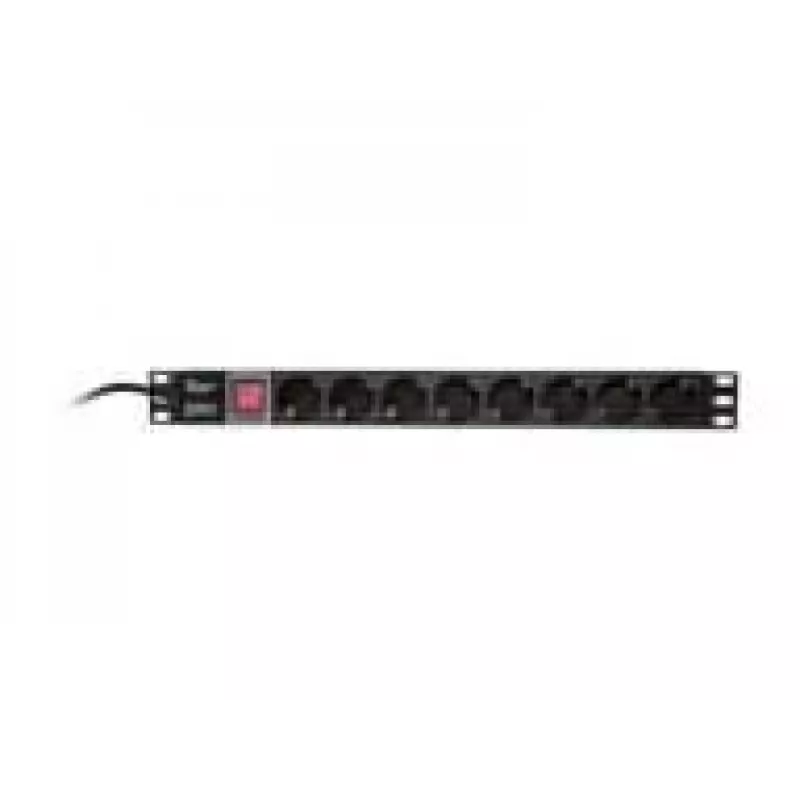

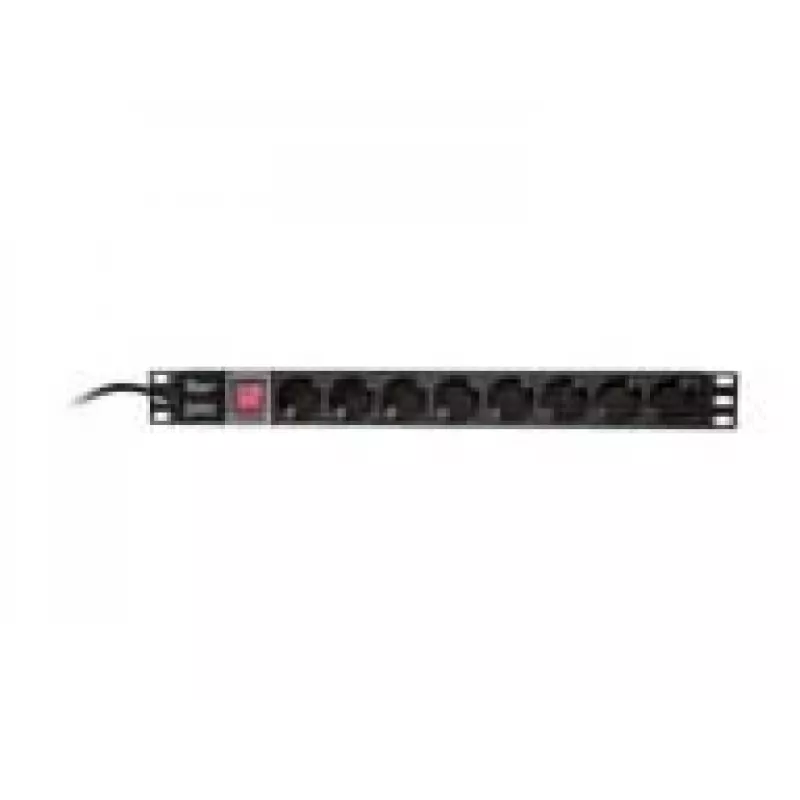

The LogiLink PDU8C01 is a 1U power distribution unit for 19" racks, offering eight grounded AC outlets in a durable aluminum alloy housing finished in black (RAL 9005). Designed for rack-mounted power management, it includes a 2 m H05VV-F 3x1.5 mm² power cord with a CEE7/7 plug and supports a nominal voltage of 250 VAC and a maximum current of 16 A. The unit is RoHS compliant and suitable for 50–60 Hz mains frequency.

Advantages

The PDU8C01 provides compact, rack-ready power distribution with eight DIN 49440 / Type F outlets that meet VDE0620-1 requirements. Its aluminum profile offers a robust, lightweight construction (approx. 0.9 kg) and professional appearance for server cabinets and installation racks. The 2 m cable with a CEE7/7 plug allows straightforward connection to standard European mains.

Suitable for

• 19" server racks and network cabinets
• IT equipment such as servers, switches and routers
• Audio/video racks and studio installations
• Workshops or technical rooms requiring consolidated power distribution

Key specifications

• Model: LogiLink PDU8C01
• Form factor: 1U, 19"
• AC outlets: 8 x DIN 49440 (Type F), VDE0620-1 compliant
• Cable: 2 m H05VV-F 3x1.5 mm² with CEE7/7 plug
• Rated current / voltage: 16 A, 250 VAC
• Frequency: 50–60 Hz
• Material / colour: Aluminum alloy shell, black (RAL 9005)
• Weight: approx. 0.9 kg

How to use

Mount the unit into a 19" rack at the desired 1U position using appropriate rack screws. Route the 2 m power cord to a suitable mains outlet and insert the CEE7/7 plug into a compatible socket. Connect equipment to the eight Type F outlets as required, ensuring the total connected load does not exceed 16 A at 250 VAC. Arrange cables to avoid strain on outlets and maintain ventilation around rack-mounted devices.

Recommendations

Do not exceed the rated current of 16 A. For sensitive or critical equipment consider additional surge protection or power conditioning devices. Install in a dry, ventilated environment and ensure proper earthing of the rack and connected devices. Periodically inspect the cord and outlets for damage and replace the unit if any safety defects are found.
