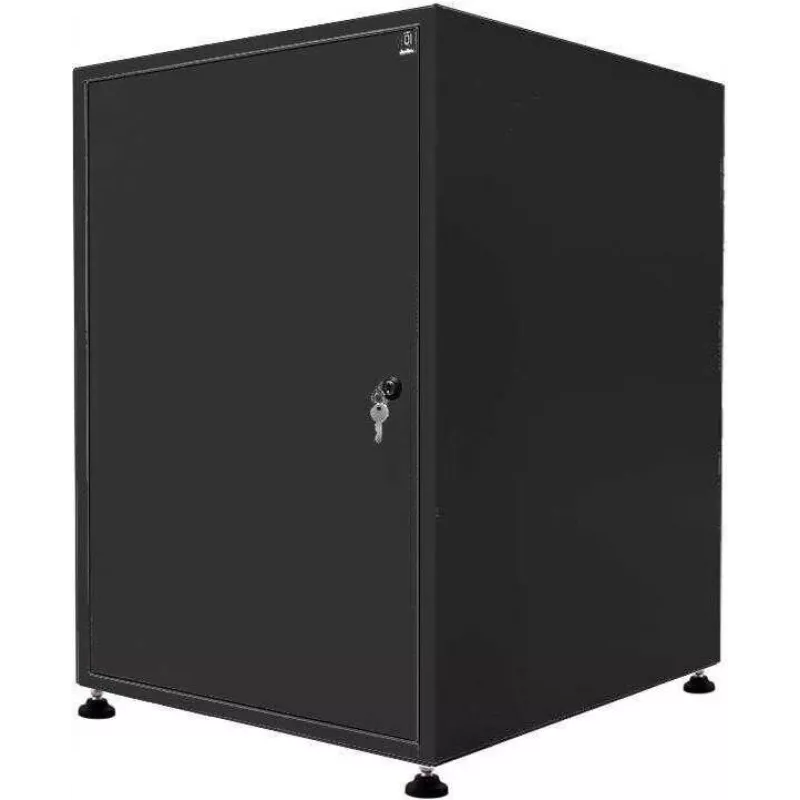

RESISTER Armario de 19 inch - Mayor protección contra el polvo - 15 HE - Puerta de acero - 600x800 mm - Negro (99RRSJ1568BVT)

The RESISTER 19-inch cabinet offers enhanced dust protection and robust construction for secure installation of 19-inch rack equipment. With 15 rack units of space, a solid steel door, and dimensions of 600x800mm (WxD), this cabinet is ideal for network, server, and AV applications in environments requiring reliable equipment housing.

Advantages

Enhanced dust protection with brush strips at cable entries; solid steel door for security; removable side panels for easy access; pre-assembled for quick deployment; static load capacity up to 60 kg.

Suitable for

• Network switches, patch panels, and servers
• Audio/Video equipment installation
• Industrial and office environments requiring dust protection

Key specifications

• Rack Units: 15U
• External dimensions (WxDxH): 600 x 800 x 770 mm
• Front door: Solid steel with single-point lock
• Side panels: Removable, lockable
• Material: Steel sheet, black RAL 9005
• Protection class: IP20
• Static load capacity: 60 kg
• Mounting rails: 19-inch profile rails, depth adjustable
• Cable entry: Top and bottom with brush strips
• Ventilation: Passive, prepared for fan unit
• Assembly: Pre-assembled
• Standards: IEC 60297-2, DIN 41494 Part 1 & 7, EN 60950-1

Recommendations

For optimal cable management, use with RESISTER cable management panels and patch panels. Ensure adequate ventilation for high-density equipment.
