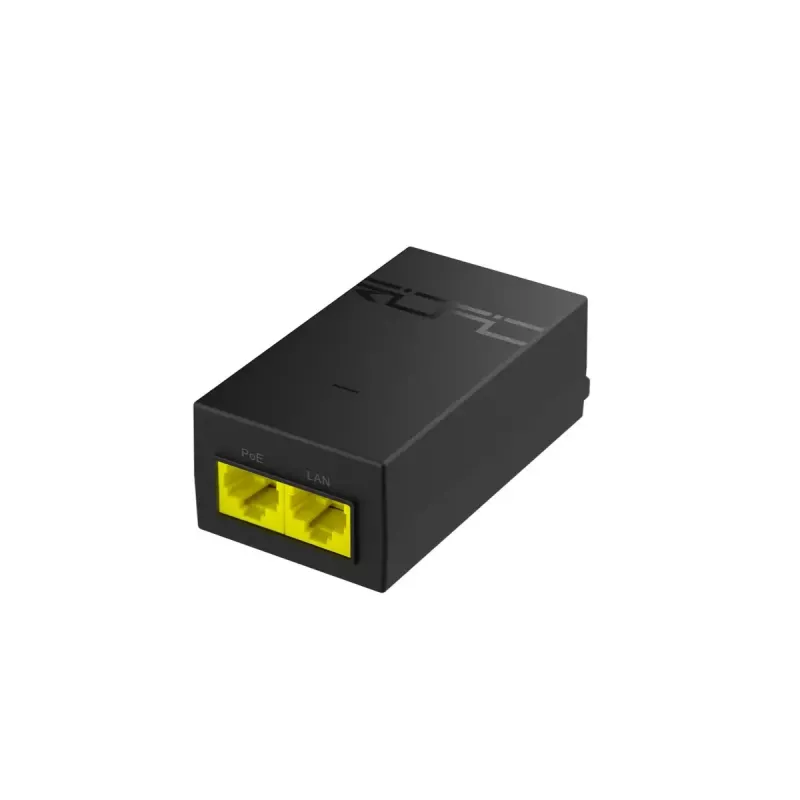

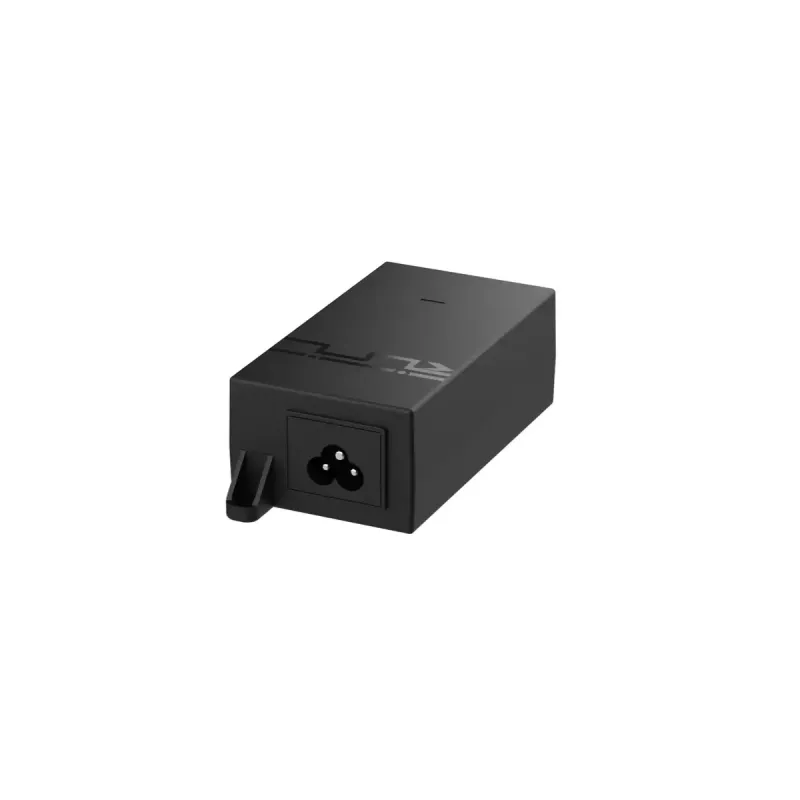

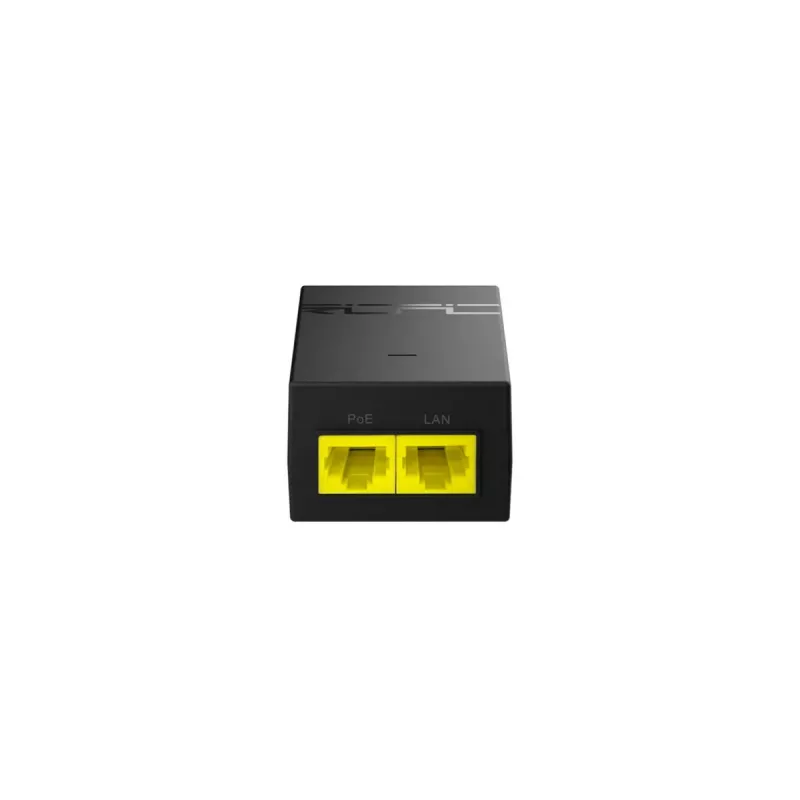

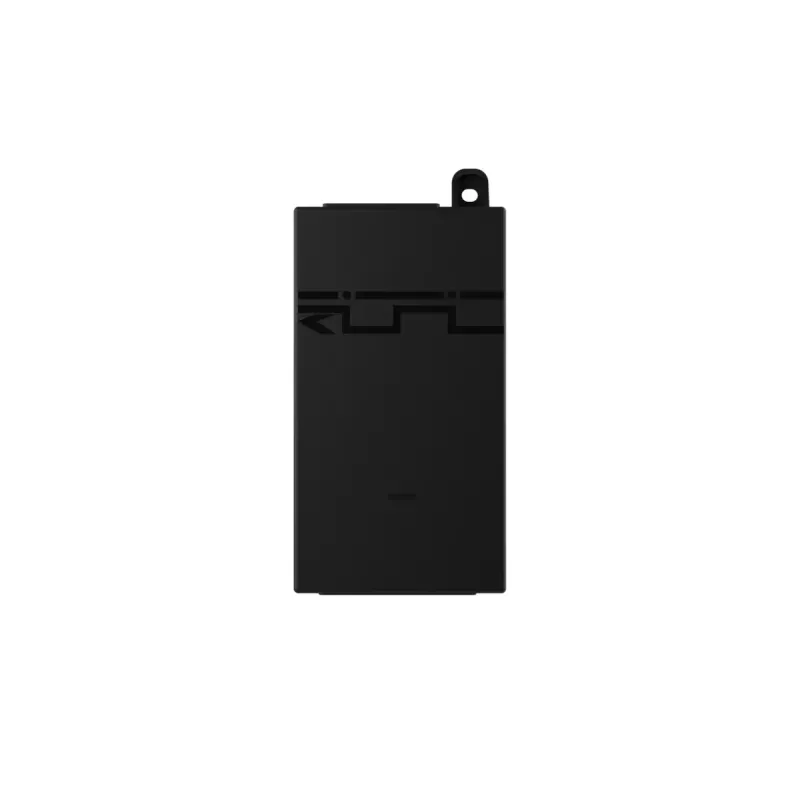

Adaptador PoE Ruijie Networks RG-POE-AF15 Gigabit Ethernet 52 V 15,6 W

The Ruijie Networks RG-POE-AF15 PoE adapter is a compact power injector designed to deliver 52 V and up to 15.6 W over Gigabit Ethernet. It accepts a wide input voltage range of 100–240 V AC and provides two Ethernet LAN (RJ-45) ports to connect a network device and an upstream switch or router. Housed in a black enclosure and weighing approximately 0.095 kg, the adapter is intended for basic PoE power delivery where space is limited and standard PoE power levels are sufficient.

Advantages

The RG-POE-AF15 offers a straightforward way to add PoE capability to non-PoE switches or to power PoE endpoints without needing a dedicated midspan. Its Gigabit Ethernet support preserves network throughput while supplying power. The compact form factor and universal 100–240 V input make installation flexible in different locations and power environments. The unit's two RJ-45 ports separate data+power output and data input, simplifying cabling for deployment.

Suitable for (tasks / use cases)

• Powering single PoE endpoints such as wireless access points, IP cameras, or VoIP phones that require up to 15.6 W.
• Adding PoE to a Gigabit network segment where the upstream switch does not provide PoE.
• Small office or home network installations with limited space for additional networking equipment.

Key specifications

• PoE output voltage: 52 V
• Maximum output power: 15.6 W
• Ethernet interfaces: 2 × RJ-45 (Gigabit Ethernet)
• Input voltage range: 100–240 V AC
• Product colour: Black
• Weight: 0.095 kg

How to use

Connect the adapter's data input RJ-45 port to your network switch or router using a Cat5e or higher Ethernet cable. Connect the data+power RJ-45 port to the PoE device that requires power. Plug the adapter into an appropriate AC outlet within the 100–240 V range. Verify that the connected device powers up and that network connectivity is present at Gigabit speeds where supported. Ensure cables are properly seated and routed to avoid strain on the ports.

Recommendations

Use shielded or unshielded Cat5e/Cat6 cables for reliable Gigabit performance, and confirm that the powered device's required power does not exceed 15.6 W. Install the adapter in a dry, ventilated location away from heat sources and moisture. For deployments requiring multiple devices or higher power budgets, consider a dedicated PoE switch or higher-power midspan solution.
