Rittal KX caja de bornes de acero inoxidable 200x200x120mm IP66 NEMA 4X, sin placa de montaje 1569000

Electrical connections in harsh industrial environments demand robust protection against dust, water, and corrosion. The Rittal KX terminal box, model 1569000, delivers exactly that with a fully welded stainless steel 1.4301 (AISI 304) enclosure rated IP66 and NEMA 4X. Its brushed, grain 240 finish resists chemical and weather exposure, making it ideal for food processing, pharmaceutical, marine, and outdoor installations. The single door with foamed-in PU seal opens 130° and locks securely via a cam lock with 3 mm double-bit insert. A gland plate with foam gasket simplifies cable entry while maintaining the seal. This enclosure comes without a mounting plate, allowing you to choose the internal layout that fits your components.

Who is it for

Panel builders, system integrators, and maintenance teams who need a compact, corrosion-resistant enclosure for terminal blocks, relays, or small control circuits in washdown areas, chemical plants, or coastal sites. It suits applications where stainless steel is mandatory and space is limited.

Main features

• Stainless steel 1.4301 (AISI 304), brushed grain 240 for superior corrosion resistance
• IP66 and NEMA 4X protection against dust, powerful water jets, and corrosion
• External dimensions 200 x 200 x 120 mm, material thickness 1.25 mm for body and door
• Single door with 130° opening angle and cam lock (3 mm double-bit insert)
• Foamed-in PU seal ensures long-term gasket performance without adhesive failure
• Gland plate with foam gasket included for easy cable entry and sealing

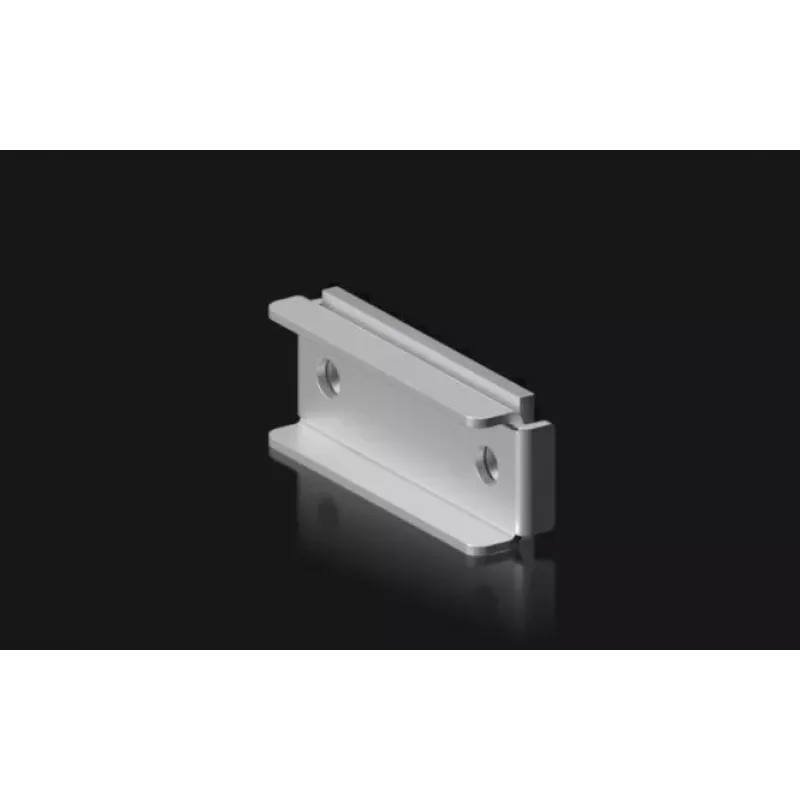

• Wall-mountable design; mounting brackets available separately
• Certified to UL, cUL, TÜV, and EAC for global compliance

Specifications

• Brand: Rittal
• Model: KX 1569000
• MPN: 1569000
• EAN: 4028177919211
• Enclosure type: Terminal box / small enclosure
• Material: Stainless steel 1.4301 (AISI 304)
• Surface finish: Brushed, grain 240
• Protection rating: IP66 / NEMA 4X
• External dimensions (W x H x D): 200 x 200 x 120 mm
• Material thickness (enclosure): 1.25 mm
• Material thickness (door): 1.25 mm
• Door type: Single door, opening angle 130°
• Lock: Cam lock with 3 mm double-bit insert
• Seal: Foamed-in PU
• Gland plate: Yes, with foam gasket
• Mounting plate included: No
• Mounting type: Wall-mountable (brackets sold separately)
• Certifications: UL, cUL, TÜV, EAC

Tips

Pair this enclosure with Rittal mounting brackets and a gland plate of your choice for a complete installation. For internal component mounting, select a compatible mounting plate or DIN rail kit. Regularly inspect the door seal and lock mechanism in high-vibration environments to maintain IP66 integrity.
