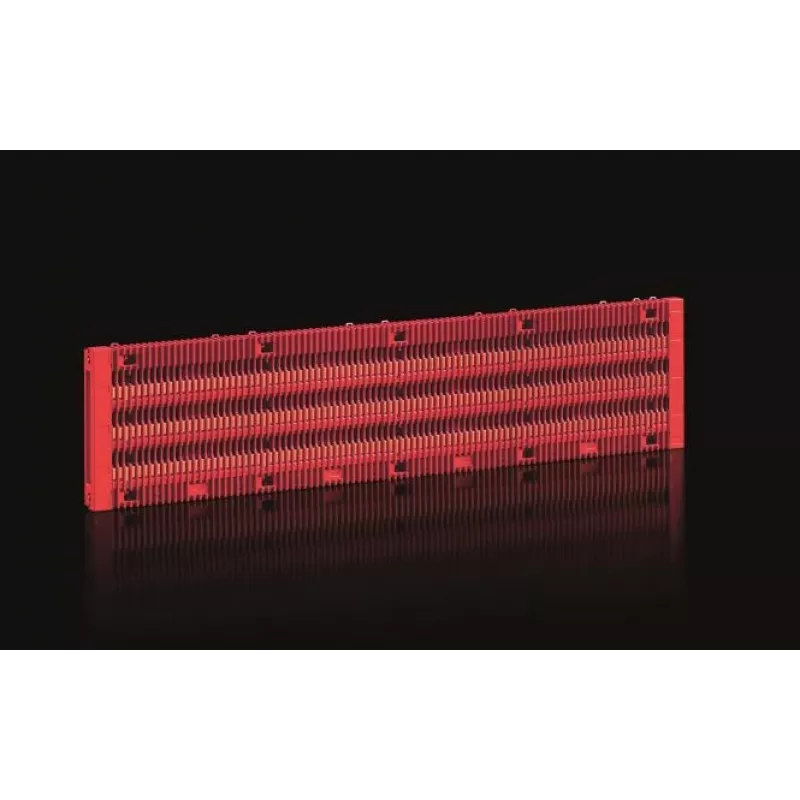

Rittal RiLineX Board 3p RX 9360008 860 mm con barras conductoras trifásicas 30×10 mm

Rittal RiLineX Board 3p RX 9360008 is an 860 mm distribution board designed for three-phase RiLineX busbar systems. Fitted with 30×10 mm copper busbars, this board provides a compact and organized solution for power distribution inside switchgear and distribution cabinets. The design enables straightforward attachment of protective devices and circuit connections while maintaining clear phase separation and reliable conductive paths for industrial electrical installations.

Advantages

The distribution board features solid 30×10 mm copper busbars, offering low-resistance current paths and consistent mechanical stability. Its 860 mm width fits standard cabinet layouts and supports a neat arrangement of modular protective devices. The RiLineX system compatibility simplifies integration and reduces assembly time during installation or maintenance. Materials and dimensions are selected to support robust electrical performance under typical industrial load conditions.

Suitable for

Key specifications

How to use

Mount the RiLineX Board 3p RX on the designated support rails or mounting points inside the cabinet following the cabinet manufacturer's instructions. Securely fasten the board and ensure correct alignment with the RiLineX busbar system. Connect incoming and outgoing cables to the busbars using appropriately rated connectors or terminal devices, and install modular protective devices onto the busbars according to electrical design and safety regulations. Verify torque settings and clearances, and perform insulation and continuity checks before energizing the system.

Recommendations

Use appropriate personal protective equipment and follow local electrical codes during installation. Select protective devices and connection hardware that match the busbar cross-section and anticipated load. Periodically inspect connections for tightness and signs of overheating to ensure long-term reliability.
