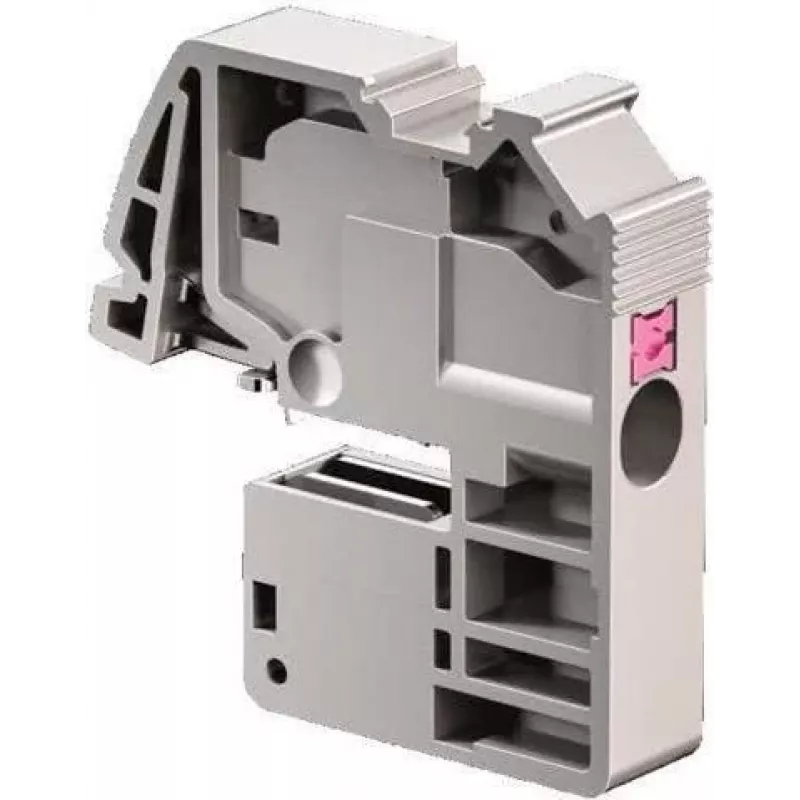

Rittal SV 3450505 Borne de conductor para sistema de barras colectoras RiLine60, conexión por tornillo, 1,5-50 mm², 160 A, 690 V, negro

Conductor terminal for the RiLine60 busbar system, providing a reliable screw connection for conductors from 1.5 to 50 mm². This terminal is designed for direct mounting on RiLine60 busbars, enabling efficient power distribution in switchgear and controlgear assemblies.

Advantages

The terminal features a robust screw connection technology that ensures secure and maintenance-free clamping of conductors. Its polyamide insulation offers excellent electrical insulation and mechanical strength, while the copper/brass conductor material guarantees high conductivity and low contact resistance.

Suitable for

• Power distribution in low-voltage switchgear and controlgear assemblies
• Connecting cables and conductors to RiLine60 busbar systems
• Industrial applications requiring a rated current up to 160 A and operating voltage up to 690 V AC/DC

Key specifications

• Connection technology: Screw connection
• Conductor cross-section: 1.5 - 50 mm² (solid, flexible with/without ferrule)
• Rated operating voltage: 690 V AC/DC
• Rated current: 160 A
• Number of poles: 1
• Mounting: Direct on RiLine60 busbar
• Insulation material: Polyamide (PA)
• Conductor material: Copper / Brass
• Colour: Black
• Operating temperature range: -25 °C to +70 °C

Recommendations

For optimal performance, ensure that the conductor cross-section and tightening torque comply with the specifications of the RiLine60 system. Use appropriate tools for screw connection and verify that the busbar is de-energized before installation.
