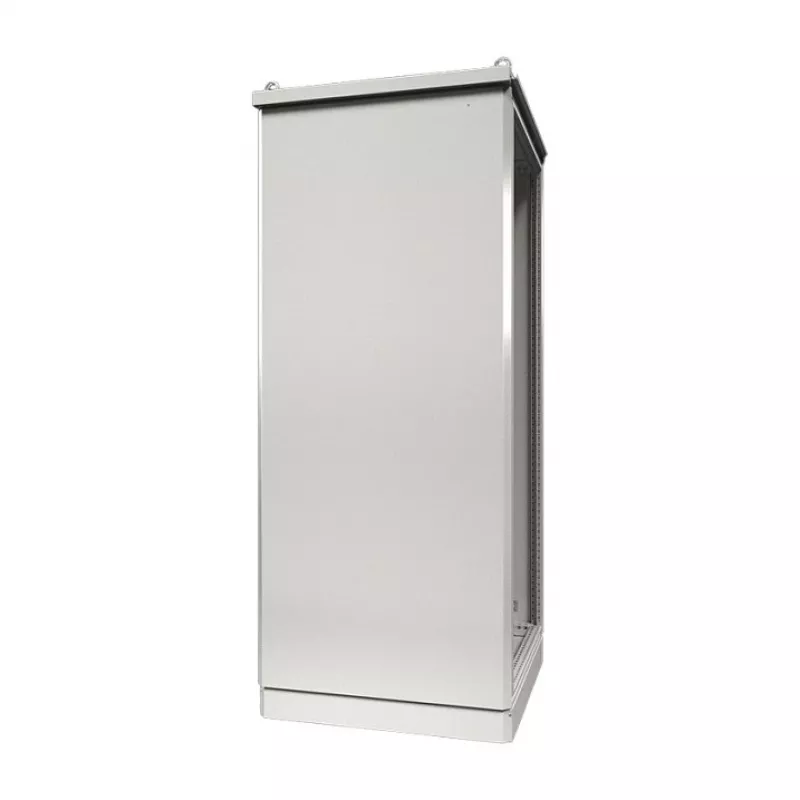

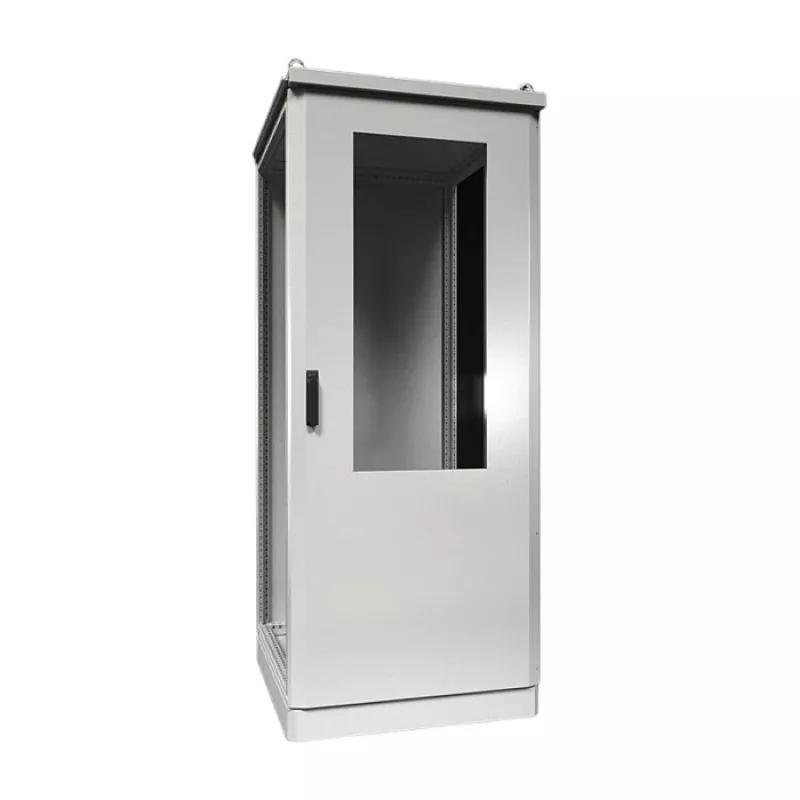

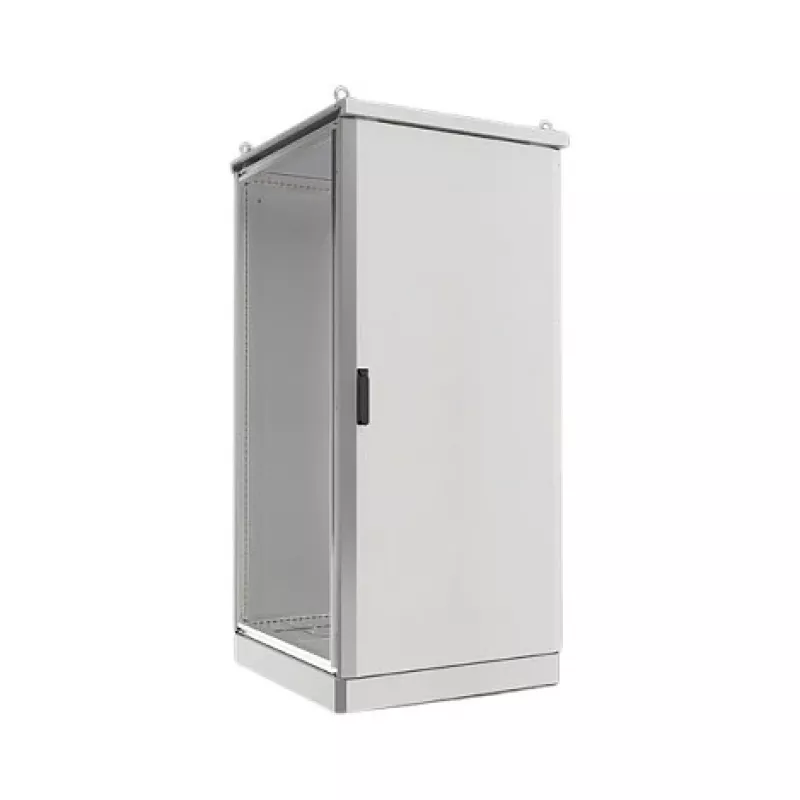

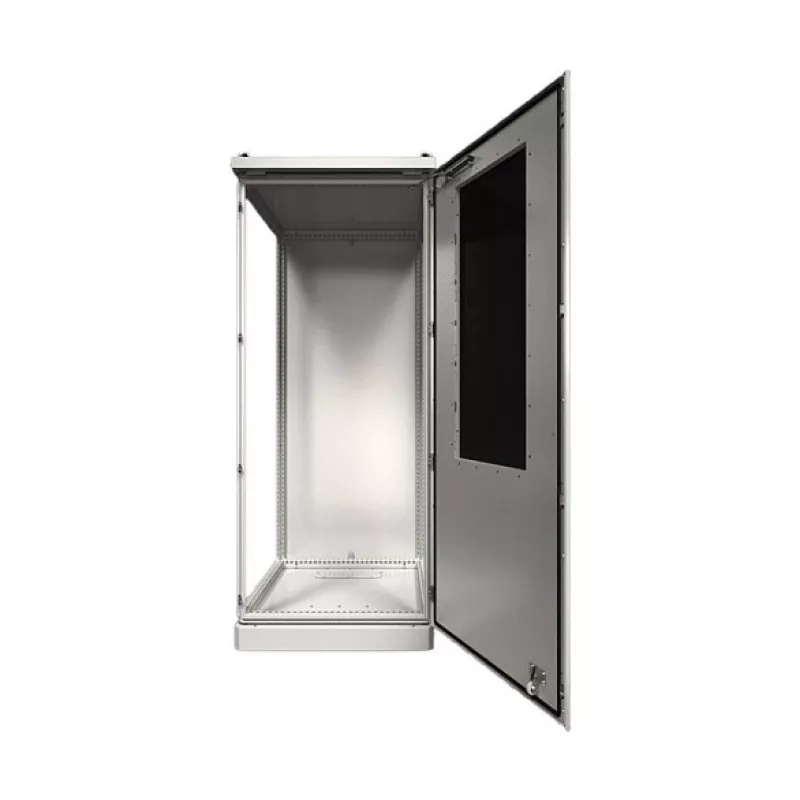

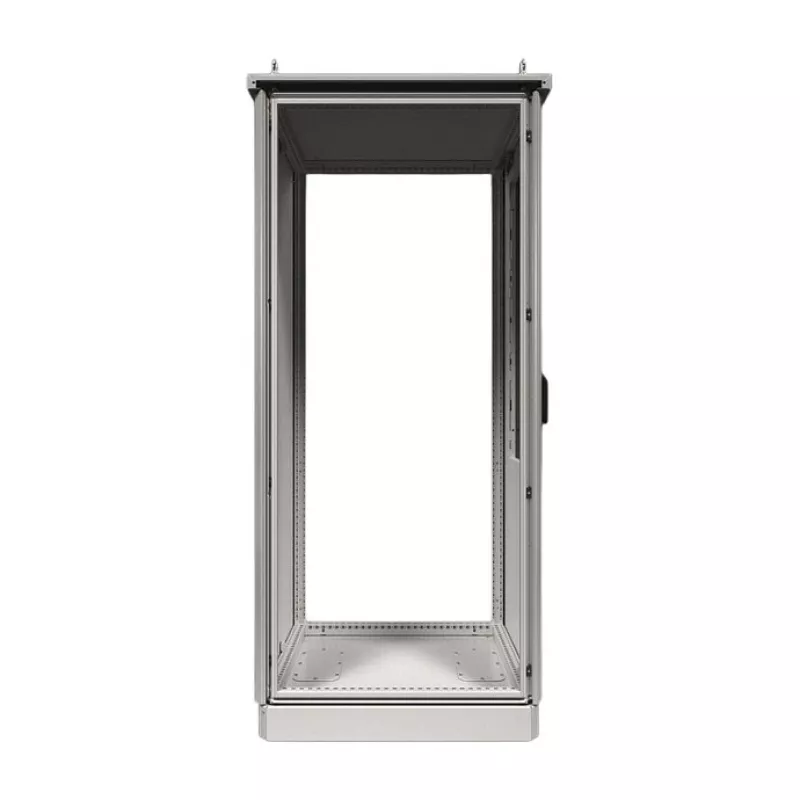

Rittal Toptec carcasa de exterior CS 9781866 - 800x1600x600mm, IP55, IK10, aluminio, RAL 7035

The Rittal Toptec Outdoor Enclosure CS 9781866 is a compact floor-standing cabinet engineered for harsh outdoor conditions. Its double-walled aluminium construction provides natural ventilation and reduces solar heat gain, while the IP55 rating shields internal components from dust and water jets. With an IK10 impact rating, this enclosure resists vandalism and accidental damage, making it a reliable choice for telecom networks and industrial automation systems.

Advantages

Built from high-grade AlMg3 aluminium with a powder-coated RAL 7035 light grey finish, the Toptec CS 9781866 delivers excellent corrosion resistance and durability. The double-walled canopy roof and side panels promote passive climate control, minimising condensation and temperature extremes. The single front door features a 3-point locking system with a comfort handle, ensuring secure access. Side-by-side baying capability allows multiple enclosures to be aligned for larger installations.

Suitable for

• Outdoor telecommunications equipment and network components
• Industrial automation systems in exposed locations
• IT and network cabinets requiring weatherproof protection

Key specifications

• Dimensions (W x H x D): 800 x 1600 x 600 mm
• Material: Aluminium (AlMg3), powder-coated
• Colour: RAL 7035 light grey
• Protection rating: IP55
• Impact protection: IK10
• Door: single front door with 3-point locking and comfort handle
• Roof: double-walled canopy roof
• Baying capability: yes, side-by-side
• Internal mounting: suitable for 19" mounting angles (accessories required)
• Material thickness: frame 2.5 mm, door/panels 2.0 mm

Recommendations

For a complete outdoor installation, use a suitable plinth/base to raise the enclosure and avoid direct ground contact. Optional 19" mounting angles and cable glands can be ordered separately to fit your specific equipment layout.
