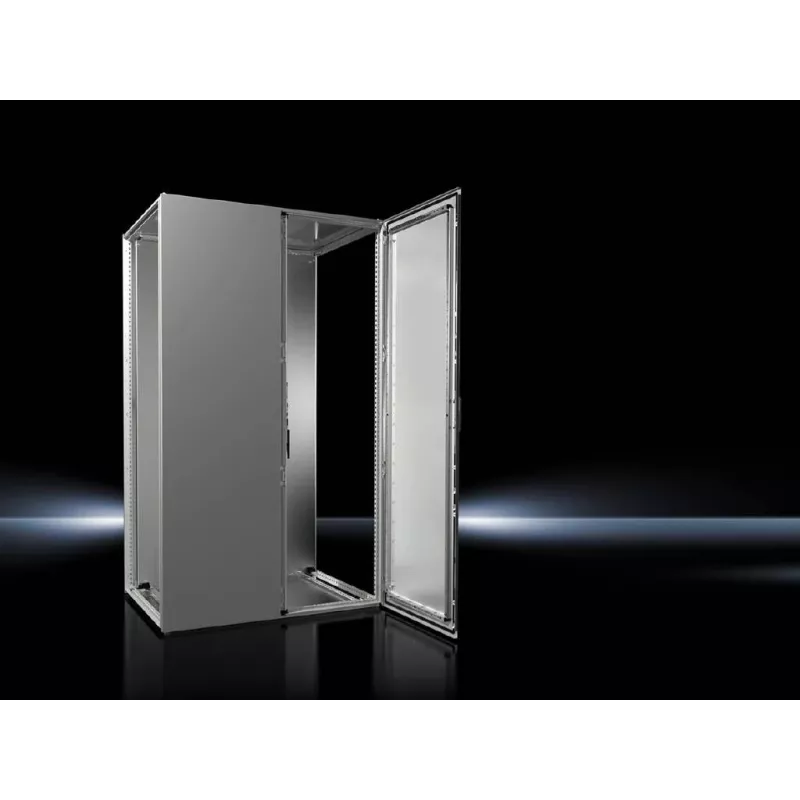

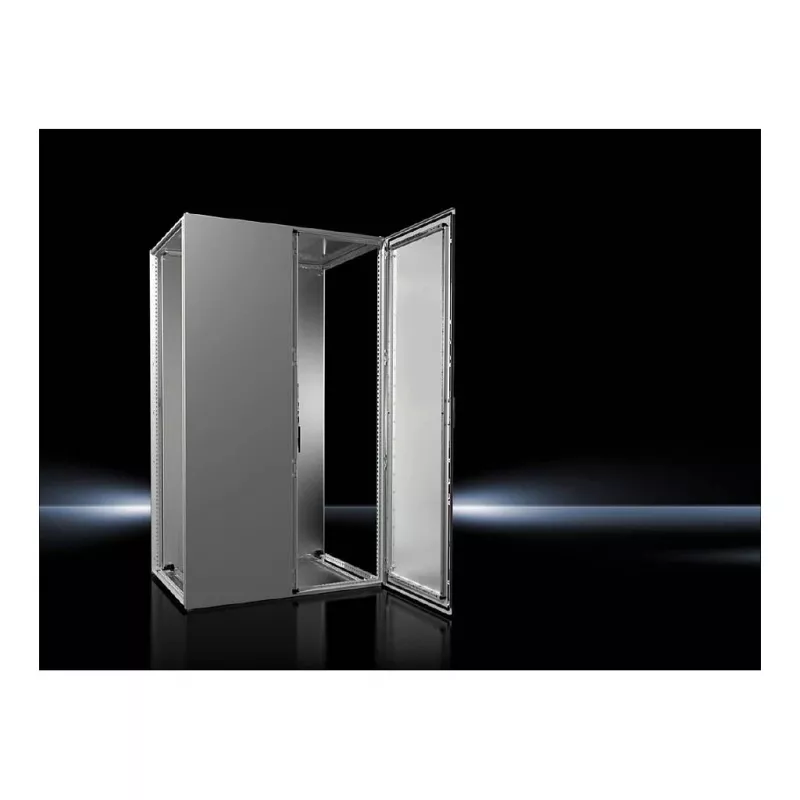

Rittal VX sistema de armario modular, 2 puertas, 1200x2000x800 mm, gris claro

In a busy industrial control room, technicians need a robust enclosure that can be seamlessly integrated into a row of cabinets. The Rittal VX baying enclosure system with two solid front doors offers exactly that, providing a secure and organized housing for electrical and electronic components. Its welded frame profile with integrated system grid ensures easy baying and internal installation, while the IP 55 protection rating safeguards equipment from dust and water jets.

Key specifications

• System type: VX baying enclosure system
• Material: Sheet steel with dip-primed, powder-coated textured finish
• Colour: RAL 7035 light grey
• Protection: IP 55, NEMA 12
• Static load capacity: 1800 kg
• Two solid front doors with 3-point locking system and comfort handle
• Door opening angle: 130°
• Includes depth-adjustable mounting plate, removable rear panel and roof plate, modular gland plates
• Approvals: UL, cUL, TÜV, Germanischer Lloyd, RMRS, VDE, CSA, EAC

Why choose it

This enclosure is engineered for flexibility and durability in demanding environments. The baying capability allows multiple units to be joined without gaps, saving space and ensuring a professional appearance. The high load capacity and robust construction make it suitable for heavy equipment, while the modular design simplifies cable entry and maintenance.

Ideal use cases

• Industrial control panels and automation systems
• Power distribution and motor control centers
• IT and network infrastructure in factory settings
• Machine building and plant engineering

Good to know

Mounting plate is zinc-plated and depth-adjustable. Base/plinth is not included and must be ordered separately as an accessory.
