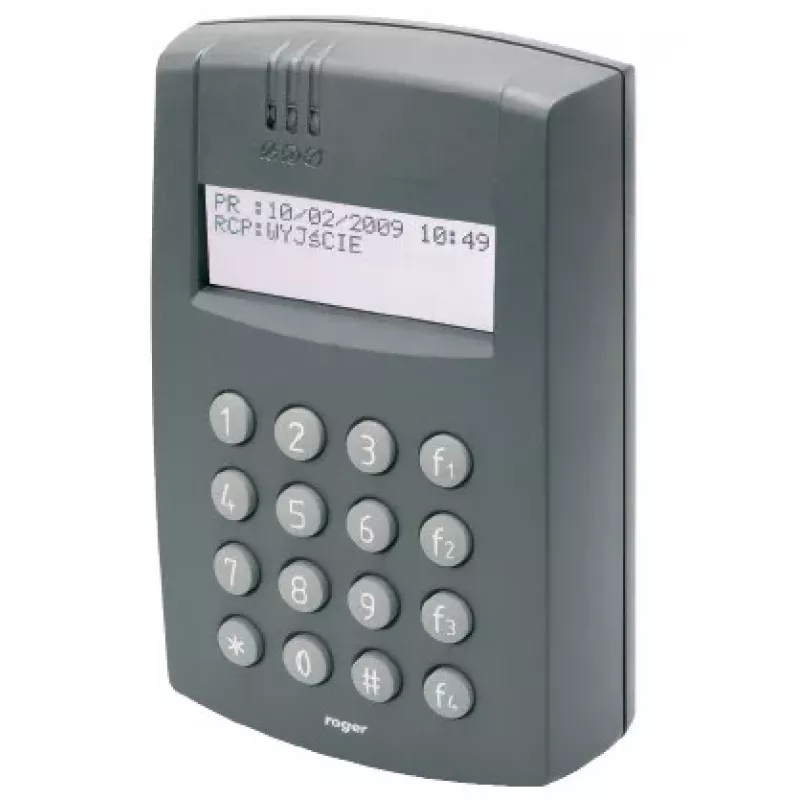

ROGER MCT68ME-IO-I lector de proximidad

The ROGER MCT68ME-IO-I is a proximity reader designed for use in the RACS 5 system with MC16 controllers. It supports both 125 kHz and 13.56 MHz standards, allowing card and code identification.

Key features

• Identification by card and code
• Operation at 125 kHz and 13.56 MHz
• Card reading distance up to 7 cm
• Three LED indicators
• Four function keys
• Indoor use
• Built-in relay output
• LCD display
• Three NO/NC inputs
• Relay output 1.5A/30V
• Two transistor outputs 1A/15V
• Speaker with adjustable volume
• Keypad with adjustable backlight
• Four programmable function keys
• Tamper detection (enclosure opening and detachment from surface)
• Configuration via RS485 (RogerVDM)
• Firmware update via RS485 (RogerISP)

Specifications

• Brand: Roger
• MPN: MCT68ME-IO-I
• Proximity cards: ISO14443A, reading card serial number (CSN): MIFARE® ULTRALIGHT, MIFARE® Classic 1K and 4K, MIFARE® Plus, MIFARE® DESFire EV1
• Proximity cards: EM 125 kHz
• Read range: up to 7 cm
• Communication interface: RS485
• Display: LCD
• LED indicators: three
• Inputs: three NO/NC, internally polarized to supply plus via 15kΩ resistor, switching threshold approx. 3.5V
• Relay output: (REL1) with single NO/NC contacts, load capacity 30V/1.5A DC/AC
• Transistor outputs: two (IO1, IO2) open collector type, max load 15VDC/1A
• Tamper: (TAMPER) isolated NO/NC contact, 50mA/24V, contacts closed when enclosure is closed
• Max distance between controller and reader: up to 1200 m of cable
• Environmental class: (per EN 50133-1) Class IV, general outdoor conditions
• Operating temperature: -25°C to +60°C
• Operating humidity: 10 to 95% (non-condensing)
• Power supply: 12VDC
• Current consumption (average): ~100 mA
• Dimensions (W x H x D): 170 x 110 x 42 mm
