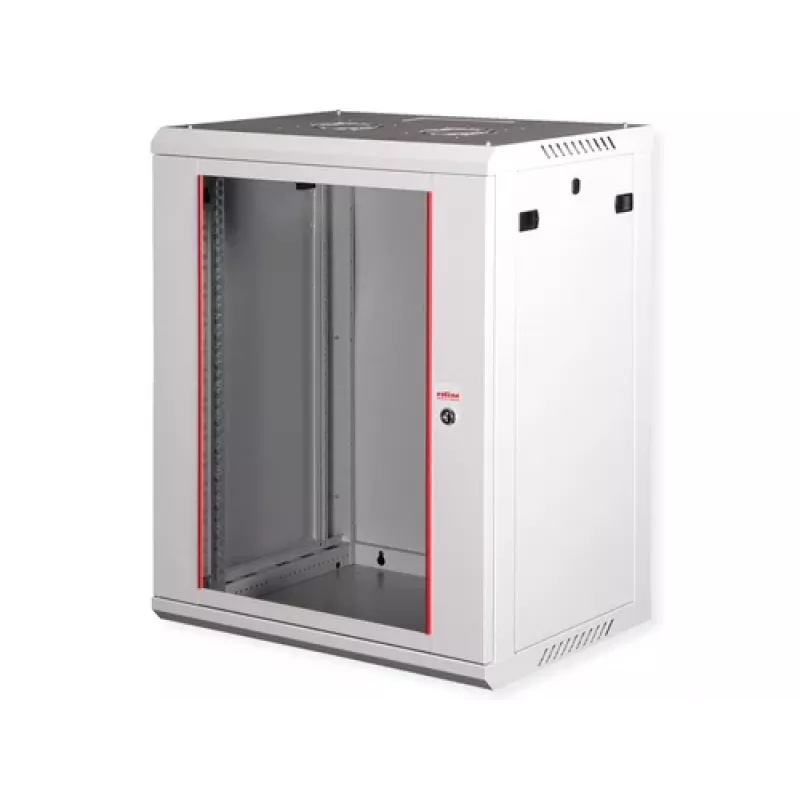

ROLINE Basic Plus armario de pared de 19 pulgadas 6U 600x450 gris

Network administrators in small offices, branch locations, and industrial settings need a secure, space-saving solution for housing 19-inch IT equipment. The ROLINE Basic Plus wall-mount enclosure answers that need: a robust steel cabinet with a 6U capacity, 600 mm width and 450 mm depth, finished in light grey (RAL 7035). It keeps switches, patch panels, and servers protected, organized, and accessible without occupying valuable floor space.

Key specifications

• 6U rack capacity, 19-inch standard mounting rails
• External dimensions: 600 mm width x 450 mm depth x 370 mm height
• Safety glass front door with key lock
• Removable side panels for easy access
• Pre-punched cable entry on top and bottom
• Adjustable mounting rails (depth range 205–345 mm)
• Maximum load capacity: 60 kg
• IP20 protection rating
• Prepared for 1–2 optional cooling fans
• Pre-assembled, ready for wall mounting

Why choose it

This enclosure combines durability with practical features. The steel construction and lockable glass door safeguard your equipment from unauthorized access and dust, while the removable side panels simplify installation and maintenance. Its compact footprint and wall-mount design free up floor space, making it ideal for tight environments. The adjustable rails accommodate various equipment depths, and the pre-punched knockouts reduce setup time.

Ideal use cases

• Small office network hubs and server rooms
• Industrial control cabinets and automation systems
• Retail back offices and point-of-sale installations
• Educational facilities and laboratories
• Security and surveillance equipment housing

Good to know

The enclosure is delivered fully assembled, so you can mount it on the wall immediately. It includes a wall mounting kit and is compatible with standard 19-inch rack equipment. Optional cooling fans can be added to manage heat in active installations. The light grey finish (RAL 7035) blends well with most office and industrial environments.
