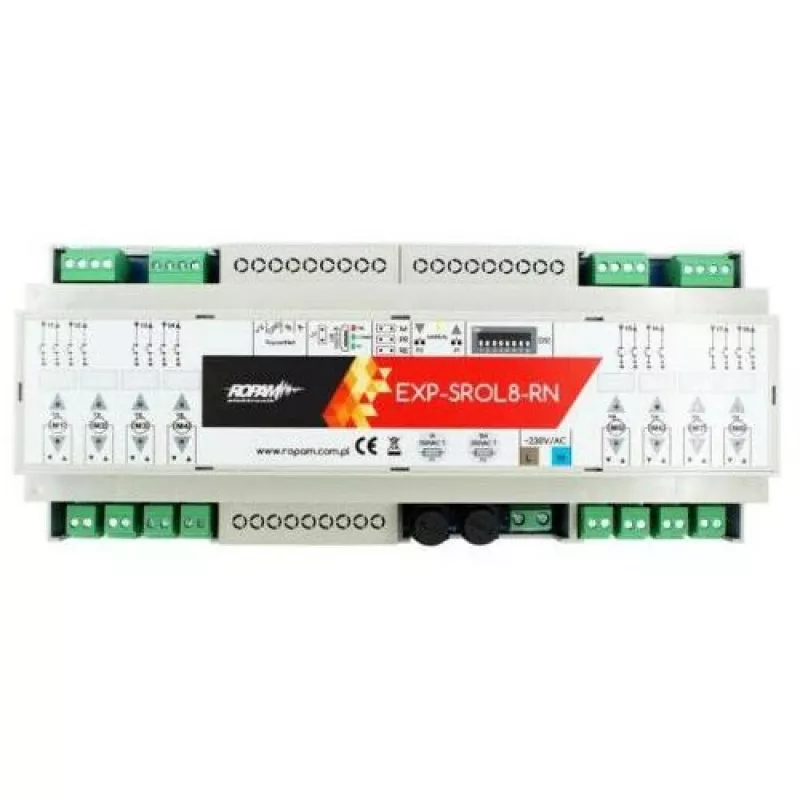

ROPAM Controlador de persiana enrollable EXP-SROL8-RN

The ROPAM Roller Shutter Controller EXP-SROL8-RN is an expansion module designed to control up to 8 roller shutters or blinds. It communicates via the Ropam RN-BUS (RS-485) and integrates seamlessly with Ropam alarm panels such as NeoGSM-IP, OptimaGSM, MultiGSM, and BasicGSM 2 series. This module allows individual and group control, programmable scenarios, and status feedback, making it ideal for smart home and building automation systems.

Advantages

Expand your Ropam system with 8 additional roller shutter channels. Each channel features two potential-free relay outputs for Up/Down control, supporting both individual and group operation. The module is powered directly from the main Ropam panel (12V DC) and consumes only 100 mA with all relays active. DIN rail or surface mount installation offers flexibility.

Suitable for

• Residential and commercial buildings requiring centralized roller shutter control
• Integration with Ropam alarm systems for event-triggered automation
• New installations or retrofitting existing Ropam systems

Key specifications

• Product Type: Roller Shutter Control Expansion Module
• Number of Channels: 8
• Communication Bus: Ropam RN-BUS (RS-485)
• Compatibility: Ropam NeoGSM-IP, OptimaGSM, MultiGSM, BasicGSM 2 series
• Control Inputs: 8 dedicated inputs for local manual control
• Output Type: Potential-free relay outputs
• Output Configuration: 2 relays per channel (Up/Down)
• Max. Output Current (per relay): 3A / 250V AC
• Power Supply: 12V DC (from main Ropam panel)
• Max. Current Consumption: 100 mA (all relays active)
• Mounting: DIN rail or surface mount
• Operating Temperature: -10°C to +55°C
• Enclosure Material: Plastic
• Protection Class: IP20
• Features: Individual and group control, programmable scenarios, status feedback, integration with alarm system events
• Firmware Update: Via main Ropam panel

Recommendations

For optimal performance, ensure your Ropam panel firmware is up to date. This module is designed for indoor use only. Professional installation is recommended.
