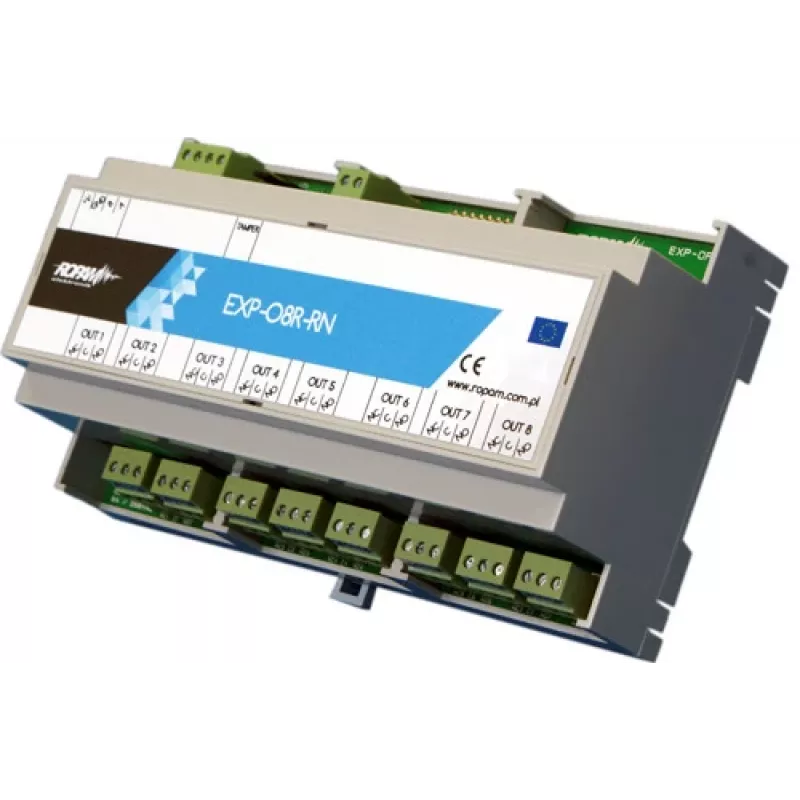

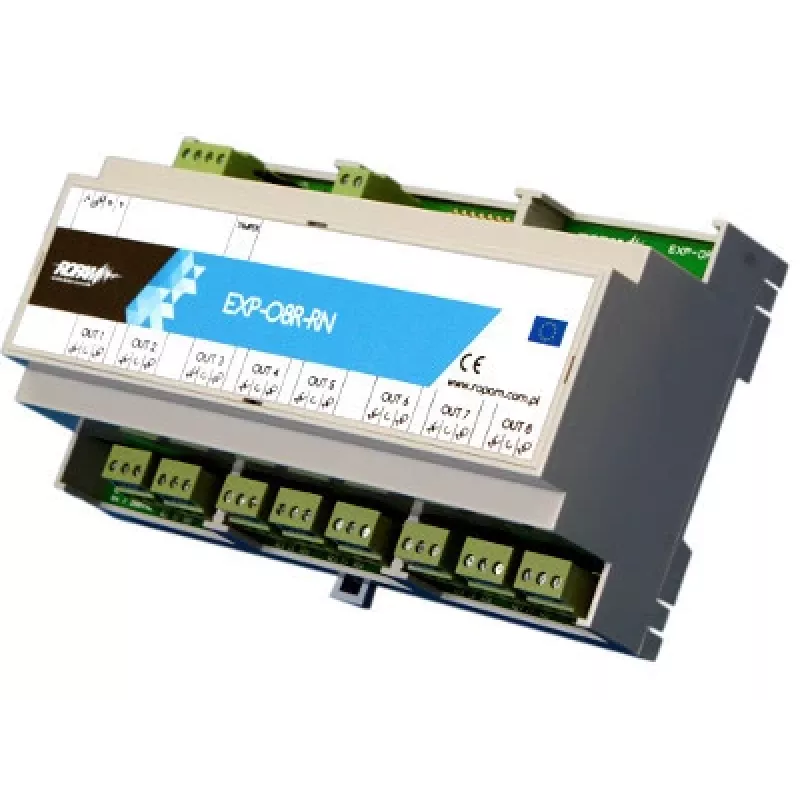

ROPAM EXP-O8R-RN-D9M módulo de expansión de salidas con 8 salidas de relé

The ROPAM EXP-O8R-RN-D9M is a high-quality output expansion module designed to extend the relay output capacity of compatible Ropam alarm and automation systems. With 8 relay outputs (NO/NC), it provides reliable switching for various devices such as sirens, lights, locks, and other actuators. The module communicates via the Ropam Bus and is powered directly from the bus, simplifying installation. Ideal for use in alarm systems, home automation, and access control applications.

Advantages

Easy expansion of output capacity without additional power supply; supports both normally open and normally closed configurations; compact design for DIN rail or wall mounting; LED indicators for quick status monitoring.

Suitable for

• Alarm systems requiring additional relay outputs
• Home automation projects
• Access control systems
• Integration with Ropam NEO, OptimaGSM, MultiGSM, BasicGSM 2 and other Ropam Bus compatible systems

Key specifications

• Module Type: Output Expansion Module
• Number of Outputs: 8
• Output Type: Relay (NO/NC)
• Max. Output Load (per relay): 2A / 30V DC
• Communication Interface: Ropam Bus
• Power Supply: 12V DC (from Ropam Bus)
• Current Consumption (Standby): Approx. 30mA
• Current Consumption (Max): Approx. 150mA (all relays active)
• Mounting Type: DIN Rail / Wall Mount
• Operating Temperature: -10°C to +55°C
• Protection Rating: IP20
• Indicators: LEDs for Power and Relay Status
• Terminal Type: Screw Terminals
• Housing Material: Plastic

Recommendations

Ensure compatibility with your Ropam system before purchase. The module is powered via the Ropam Bus; verify bus power capacity. For outdoor use, additional enclosure may be required due to IP20 rating.
