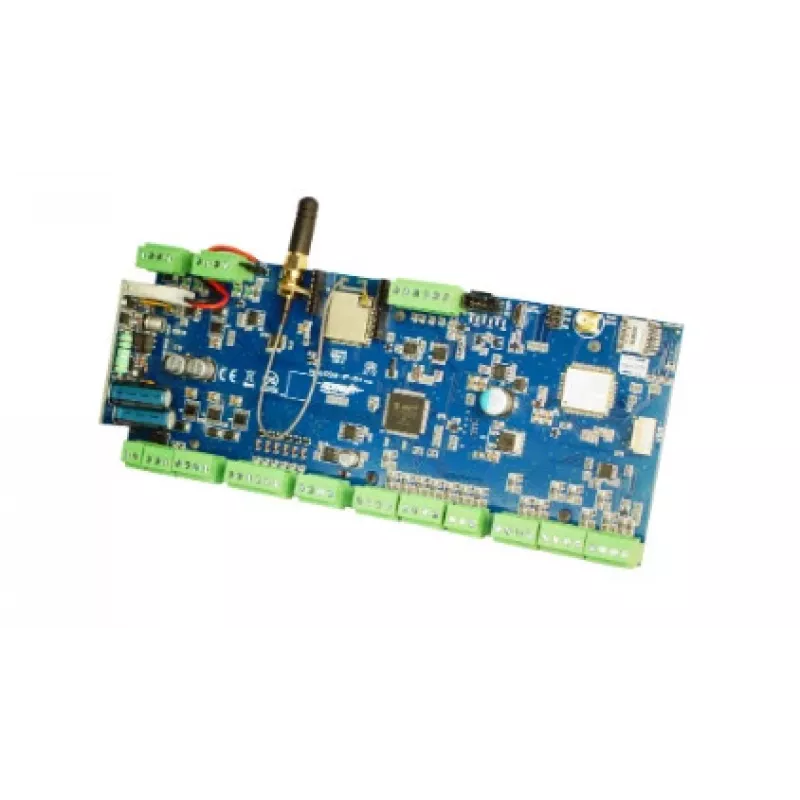

ROPAM NEO-IP-64-PS central de alarma antirrobo con 64 zonas y fuente de alimentación integrada

The ROPAM NEO-IP-64-PS is a professional intruder alarm control panel engineered for comprehensive security management in residential and commercial environments. Its standout capability is the support for up to 64 zones, providing extensive coverage and scalability for complex installations. With integrated Ethernet and optional GSM/GPRS communication, the panel ensures reliable connectivity for remote monitoring and control via mobile app, web browser, SMS, or voice calls.

Advantages

The panel features a built-in 13.8V/2A switching power supply, simplifying installation and reducing external components. It supports up to 64 users with different access levels, enabling flexible permission management. The system is EN 50131 Grade 2 compliant, ensuring adherence to European security standards. Its ARM Cortex-M3 processor delivers fast and reliable performance, while the 10,000-event log provides detailed history for auditing. The RopamNET bus allows connection of up to 8 keypads and expansion modules, making the system highly adaptable.

Suitable for

• Residential properties requiring multi-zone intrusion detection
• Small to medium commercial buildings needing partitioned security
• Installations where remote management via IP or GSM is essential
• Security integrators looking for a scalable and certified control panel

Key specifications

• System type: Intruder alarm control panel
• Maximum zones: 64 (wired/wireless)
• Partitions: 4
• Users: 64 with access levels
• On-board inputs: 8 (expandable)
• On-board outputs: 8 OC type + 2 relay type (expandable)
• Communication: Ethernet (IP), optional GSM/GPRS, optional PSTN
• Power supply: Built-in 13.8V/2A switching
• Battery backup: Supports 12V/7Ah battery
• Keypad support: Up to 8 RopamNET keypads
• Event log: 10,000 events
• Compliance: EN 50131 Grade 2
• Processor: ARM Cortex-M3
• Bus type: RopamNET
• Housing material: Plastic
• Operating temperature: -10°C to +55°C
• Firmware update: Via USB or Ethernet
• Home automation features: Yes (output control, schedules)
• Tamper protection: Yes (enclosure tamper)

Recommendations

For optimal performance, pair this panel with RopamNET keypads and expansion modules. Ensure a stable network connection for IP-based remote access, and consider adding a GSM module for redundancy. Mount the panel in a secure, indoor location within the specified temperature range.
