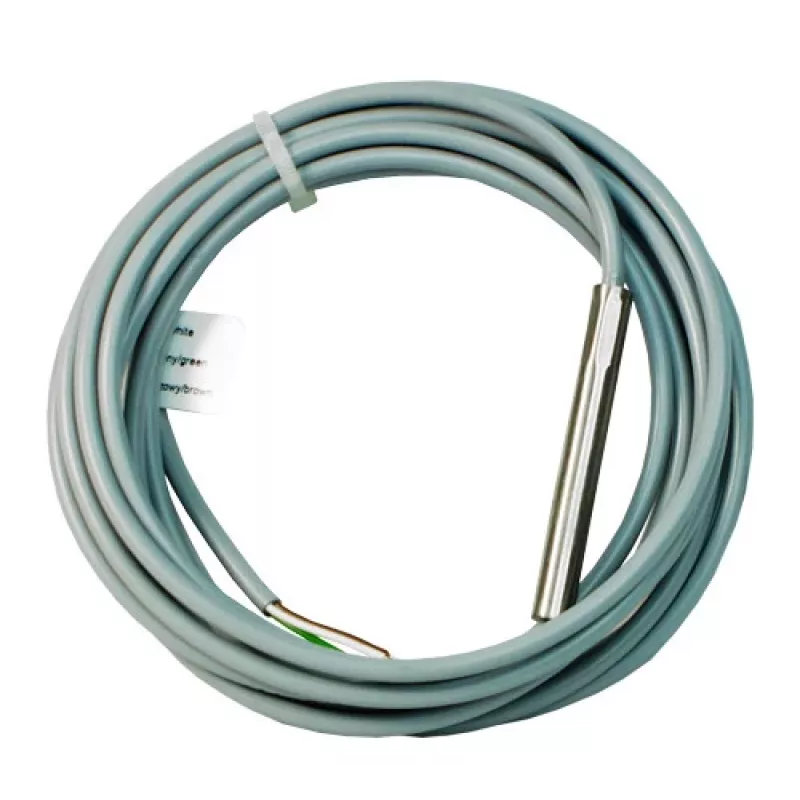

ROPAM TSR-1 sensor de temperatura DS18B20 1-Wire blanco

The ROPAM TSR-1 is a high-precision temperature sensor based on the DS18B20 chip, designed for indoor use with ROPAM control panels that support the 1-Wire bus. It provides accurate temperature readings over a wide range and is ideal for monitoring environments in home, office, or industrial settings.

Advantages

High accuracy of ±0.5°C in the typical range, configurable resolution from 9 to 12 bits, and a long cable length of 1 meter for flexible placement. The sensor uses the robust Dallas 1-Wire protocol, allowing multiple sensors to be connected on a single bus.

Suitable for

• ROPAM control panels with 1-Wire bus (e.g., NeoGSM-IP, OptimaGSM, MultiGSM)
• Indoor temperature monitoring in smart home systems
• HVAC control and environmental monitoring

Key specifications

• Sensor Type: DS18B20
• Interface: 1-Wire Bus
• Temperature Range: -55°C to +125°C
• Accuracy: ±0.5°C (-10°C to +85°C)
• Resolution: 9 to 12 bits (configurable)
• Cable Length: 1 meter
• Power Supply: 3.0V - 5.5V DC
• Connection: 3-wire (VCC, GND, Data)
• Housing Material: ABS Plastic
• Color: White
• Mounting: Surface mount (wall)

Recommendations

For best performance, use with ROPAM control panels that support 1-Wire sensors. Ensure proper wiring (VCC, GND, Data) and avoid exposure to moisture or extreme temperatures beyond the specified range.
