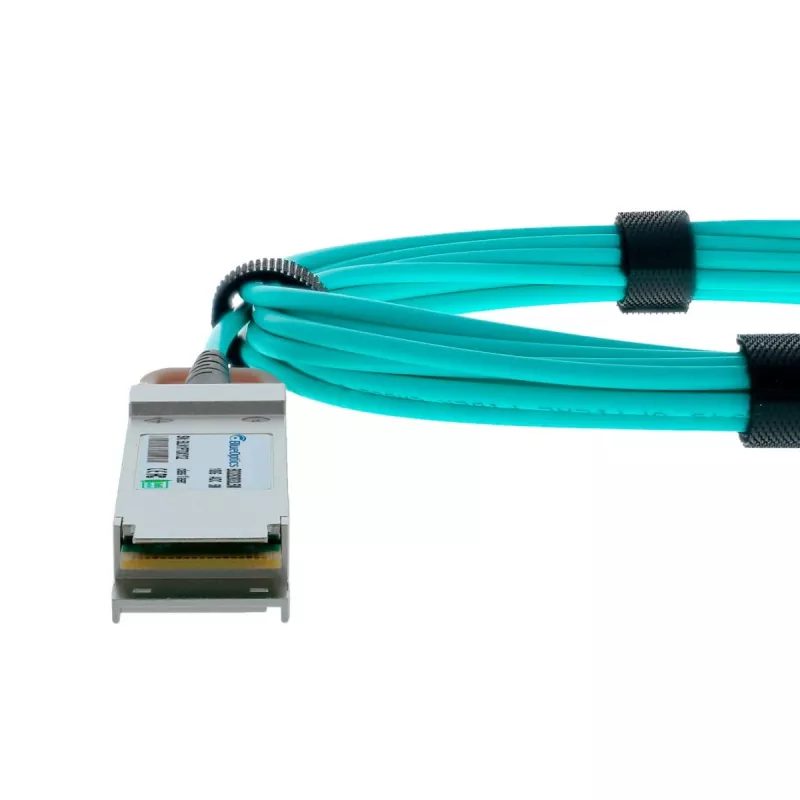

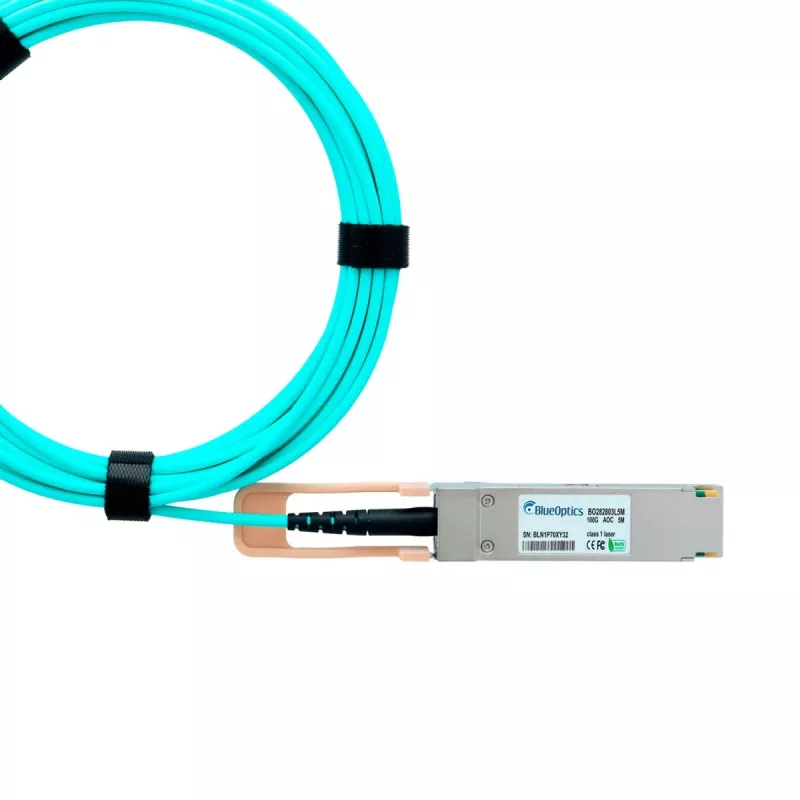

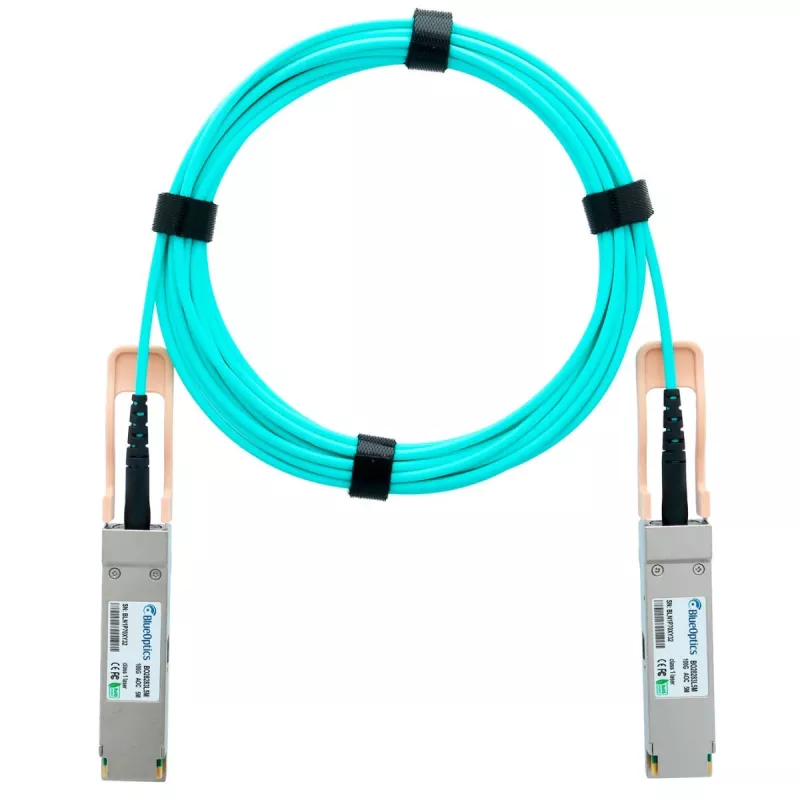

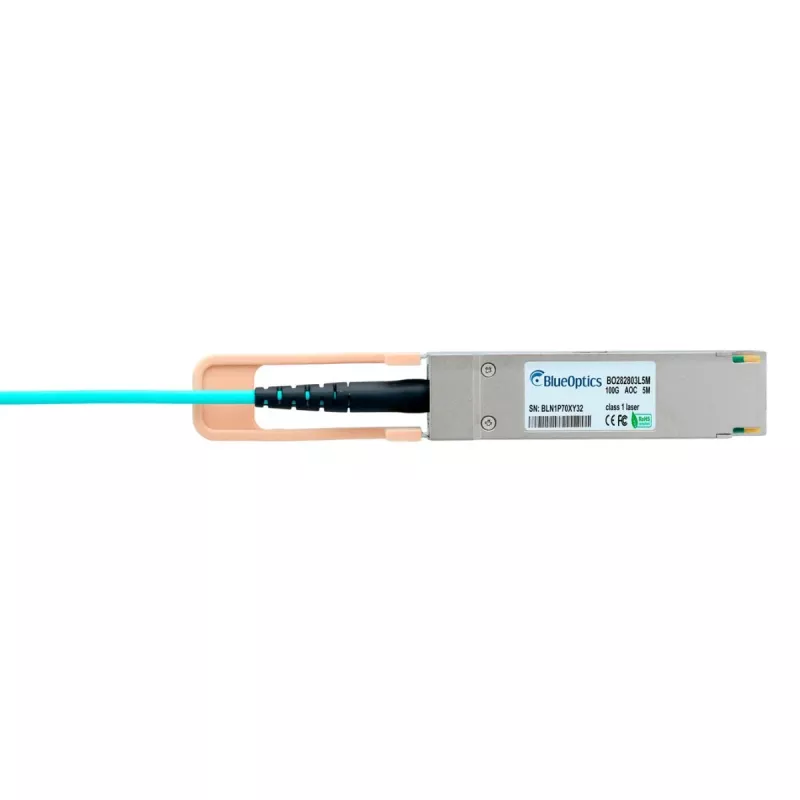

Ruckus 100G-QSFP-QSFP-AOC-3001 AOC QSFP28 BlueOptics BO282803L30M compatible

The BlueOptics BO282803L30M is a high-performance Active Optical Cable (AOC) designed for 100 Gigabit Ethernet connectivity. It is fully compatible with Ruckus 100G-QSFP-QSFP-AOC-3001 and provides a reliable, low-power solution for data center interconnects, high-performance computing, and enterprise networking.

Advantages

This AOC offers significant advantages over traditional copper cables, including longer reach, lighter weight, and immunity to electromagnetic interference. With a length of 30 meters, it enables flexible network design and efficient cable management. The hot-pluggable QSFP28 connectors ensure easy installation and maintenance.

Suitable for

• Data Center Interconnects
• High-Performance Computing
• Enterprise Networking
• Ruckus 100G-QSFP-QSFP-AOC-3001 compatible equipment

Key specifications

• Product Type: Active Optical Cable (AOC)
• Data Rate: 100 Gigabit Ethernet (100G)
• Interface Type: QSFP28
• Cable Length: 30 meters (98.4 feet)
• Connector Type: QSFP28 to QSFP28
• Fiber Type: Multi-Mode Fiber (MMF)
• Wavelength: 850 nm
• Number of Channels: 4 Transmit (Tx) + 4 Receive (Rx)
• Power Consumption: < 2.5 W per end
• Supply Voltage: 3.3 V
• Hot-Pluggable: Yes
• Operating Temperature: 0°C to 70°C (32°F to 158°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Standard Compliance: IEEE 802.3bm 100GBASE-SR4, MSA Compliant
• Certifications: CE, FCC, RoHS

Recommendations

For optimal performance, ensure that both ends of the cable are connected to compatible 100G QSFP28 ports. This cable is ideal for short-reach, high-bandwidth applications within racks or between adjacent racks.
