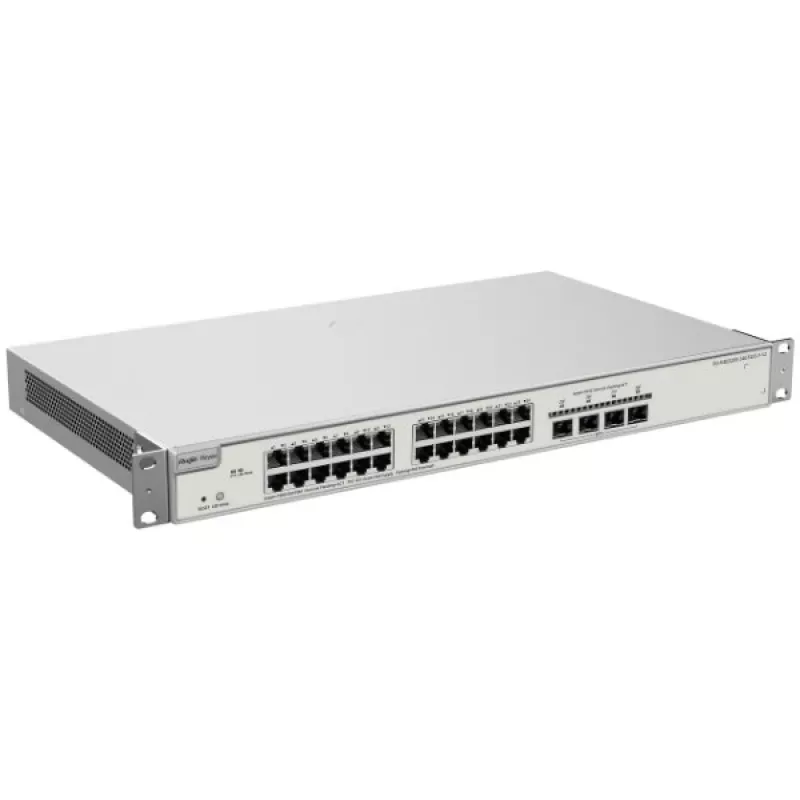

Ruijie Reyee RG-NBS3200-24GT4XS-P-V2 switch Gigabit PoE+ de 24 puertos con 4 uplinks 10G SFP+, presupuesto 370W, Layer 2+ gestionado

Network congestion and insufficient power delivery can cripple a growing business. The Ruijie Reyee RG-NBS3200-24GT4XS-P-V2 solves this by combining 24 Gigabit PoE+ ports with four 10G SFP+ uplinks and a generous 370W PoE budget, ensuring high-speed connectivity and reliable power for access points, IP cameras, and VoIP phones.

Who is it for

This switch is ideal for small to medium businesses, branch offices, and retail environments that need to power multiple PoE devices while maintaining high throughput to the core network. It suits IT administrators who require simple yet powerful management without complex CLI configuration.

Main features

• 24× 10/100/1000Base-T PoE+ ports (IEEE 802.3af/at) with 370W total power budget
• 4× 10G SFP+ uplink ports for high-speed backbone or server connections
• Layer 2+ management via intuitive web UI or Ruijie Cloud app/platform
• 128 Gbps switching capacity and 96 Mpps forwarding rate for wire-speed performance
• Comprehensive security: ACL, port security, DHCP snooping, ARP inspection
• Advanced QoS with 802.1p and DSCP prioritization for voice and video
• Supports STP/RSTP/MSTP and LACP link aggregation for resilient networks
• Rack-mountable 1U design with smart fan for quiet operation

Specifications

• Ethernet Ports: 24× 10/100/1000Base-T Gigabit Ethernet
• Uplink Ports: 4× 10G SFP+
• PoE Standard: IEEE 802.3af/at (PoE/PoE+)
• Total PoE Power Budget: 370 W
• Switching Capacity: 128 Gbps
• Forwarding Rate: 96 Mpps
• MAC Address Table Size: 16K
• VLAN Support: 4K VLANs (IEEE 802.1Q)
• Jumbo Frame Support: 10 KB
• Management: Layer 2+ Managed (Web UI, Ruijie Cloud App/Platform)
• Power Supply: Internal AC 100-240V, 50/60Hz
• Mounting: Rack-mountable (1U)
• Fan: Smart Fan
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Spanning Tree Protocols: STP, RSTP, MSTP
• Link Aggregation: LACP
• Security Features: ACL, Port Security, DHCP Snooping, ARP Inspection
• QoS: 802.1p, DSCP

Tips

To maximize PoE budget, connect high-power devices like PTZ cameras or Wi-Fi 6 access points directly to the switch and avoid daisy-chaining. Use the 10G SFP+ uplinks to connect to a core switch or NAS for bottleneck-free data transfers. Enable DHCP snooping and ARP inspection to protect against rogue devices on your network.
