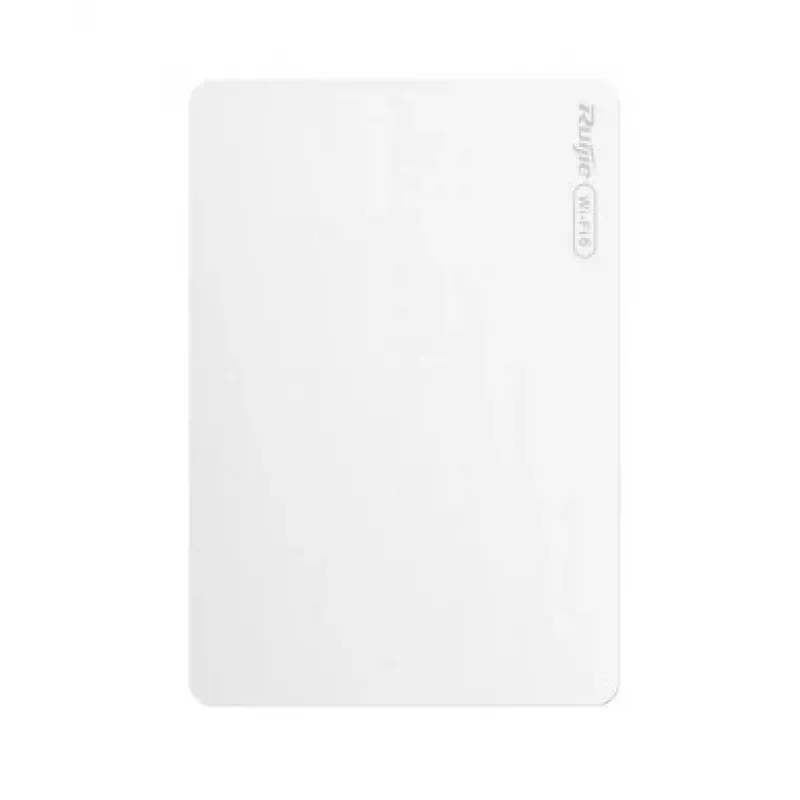

Ruijie Reyee RG-RAP62-Wall Punto de Acceso de Pared AX3000 Dual-Band Wi-Fi 6 con Switch Gigabit de 5 Puertos, PoE In/Out, Mesh, Gestión en la Nube

The Ruijie Reyee RG-RAP62-Wall is a high-performance AX3000 dual-band Wi-Fi 6 wall-plate access point designed for seamless connectivity in hotels, offices, and multi-dwelling units. Combining a 5-port Gigabit switch with PoE passthrough, it simplifies deployment and reduces cabling. With Reyee Mesh technology and cloud management, it delivers reliable, scalable, and easy-to-manage wireless networks.

Advantages

Wi-Fi 6 (802.11ax) delivers faster speeds, lower latency, and improved capacity for dense environments. The integrated 5-port Gigabit switch provides wired connections for nearby devices, while PoE input and output (up to 10W) power the access point and a downstream device like an IP phone or camera. Reyee Mesh enables self-organizing, self-healing mesh networks with seamless roaming (802.11k/v/r). Cloud management via Ruijie Cloud simplifies remote monitoring and configuration.

Suitable for

• Hotel guest rooms and corridors
• Office meeting rooms and open areas
• Multi-dwelling units (apartments, dormitories)
• Retail stores and hospitality venues
• Any environment requiring high-density Wi-Fi with wired device connectivity

Key specifications

• Wireless Standard: Wi-Fi 6 (802.11ax), AX3000
• Frequency Bands: Dual-Band (2.4 GHz & 5 GHz)
• Max Data Rate: 2.4 GHz: 574 Mbps, 5 GHz: 2402 Mbps
• Ethernet Ports: 5x Gigabit Ethernet (10/100/1000 Mbps)
• PoE Input: 1x 802.3af/at PoE In
• PoE Output: 1x 802.3af PoE Out (max 10W)
• Antenna: Internal omni-directional, 2x 5.4 dBi (2.4 GHz & 5 GHz)
• MIMO: 2x2
• Mounting: Wall-plate / wall-mount
• Management: Ruijie Cloud, Reyee Mesh
• Security: WPA3, WPA2-PSK/Enterprise
• Power Consumption: <15W (excluding PoE Out load)
• Recommended Concurrent Clients: 100+

Recommendations

For optimal performance, use with a PoE+ switch (802.3at) to ensure full PoE Out capability. The RG-RAP62-Wall is ideal for new installations or upgrades where both Wi-Fi 6 and wired connectivity are needed in a compact, wall-mounted form factor.
