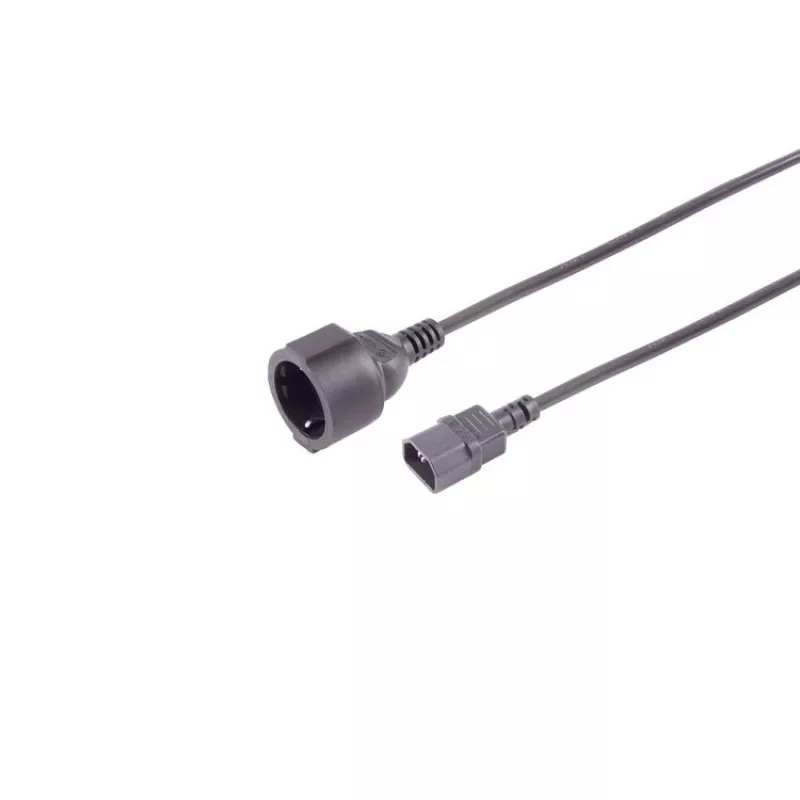

S CONN MAXIMUM CONNECTIVITY cable adaptador IEC C14 a CEE 7/3, 0,5 m, 3 x 1,0 mm², negro 09-07015

Connect a device with an IEC C14 inlet to a standard Schuko socket. This adapter cable solves the problem of mismatched power connectors in server rooms, UPS setups, and PDUs, where many devices use IEC C14 inputs but wall outlets provide CEE 7/3 Schuko sockets.

Who is it for

IT professionals and system integrators who need a short, reliable power link between a Schuko wall outlet and equipment with an IEC C14 connector, such as UPS units, PDUs, or servers.

Main features

• IEC C14 male to CEE 7/3 Schuko female connectors
• 0.5 m length for tidy rack or desk installations
• 3 x 1.0 mm² conductors, H05VV-F cable standard
• Rated for 250 V AC and 10 A
• Black PVC jacket

Specifications

• Connector A: IEC 60320 C14 male
• Connector B: CEE 7/3 Schuko female
• Cable length: 0.5 m
• Conductor cross-section: 3 x 1.0 mm²
• Cable standard: H05VV-F
• Rated voltage: 250 V AC
• Rated current: 10 A
• Colour: Black
• Jacket material: PVC
• Number of conductors: 3

Tips

Use this cable to connect a UPS or PDU with an IEC C14 input directly to a wall outlet, eliminating the need for an additional adapter.
