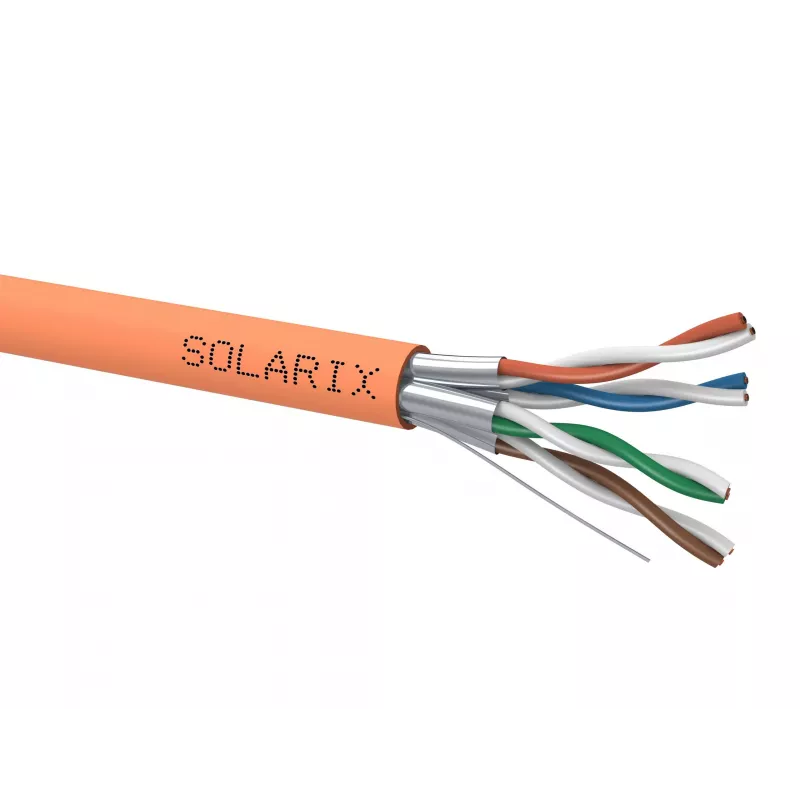

SOLARIX CAT.6A S/FTP LSOH B2ca s1d1a1 cobre desnudo macizo 23 AWG bobina de 500m

The SOLARIX CAT.6A S/FTP LSOH B2ca s1d1a1 installation cable is a high-performance twisted pair cable designed for demanding network environments. With 500 meters on a wooden spool, it provides reliable 10 Gigabit Ethernet connectivity up to 500 MHz. The S/FTP shielding (overall braid + foil per pair) ensures excellent protection against electromagnetic interference, while the LSOH jacket and Euroclass B2ca s1d1a1 fire rating make it safe for indoor installations in data centers and commercial buildings.

Advantages

• Supports 10GBASE-T data rates for future-proof networks
• S/FTP shielding minimizes crosstalk and external noise
• LSOH jacket reduces toxic smoke in fire situations
• B2ca s1d1a1 Euroclass fire rating for enhanced safety
• Solid bare copper conductors (23 AWG) ensure signal integrity
• 500-meter length on a wooden spool for large-scale installations

Suitable for

• Data center cabling
• Commercial building structured cabling
• High-speed network backbones
• Industrial environments requiring robust shielding

Key specifications

• Cable type: Twisted Pair, S/FTP
• Category: CAT.6A
• Conductor: Solid Bare Copper, 23 AWG
• Number of pairs: 4
• Jacket material: LSOH
• Fire rating: B2ca s1d1a1
• Length: 500 m
• Packaging: Wooden Spool
• Frequency bandwidth: Up to 500 MHz
• Data transfer rate: 10 Gbit/s
• Outer diameter: Approx. 7.8 mm
• Colour: Grey
• Standards: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Operating temperature: -20°C to +60°C
• Installation temperature: 0°C to +50°C

Recommendations

For optimal performance, ensure proper grounding of the S/FTP cable and use compatible CAT.6A connectors. Suitable for fixed installations in dry indoor environments.
