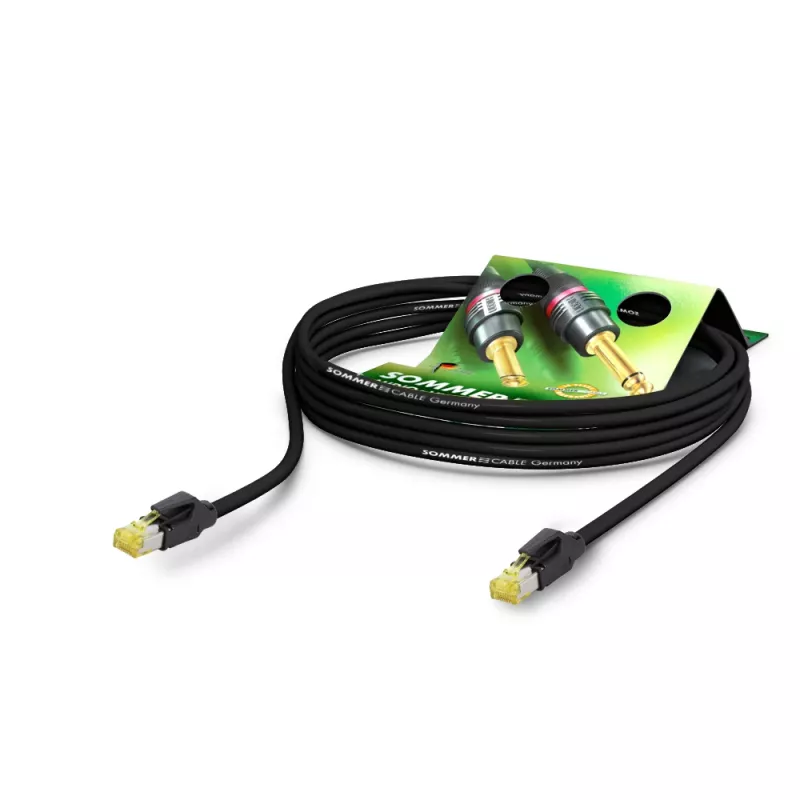

Sommer Cable SC-Mercator CAT.7 PUR cable de red, 8 x 0,14 mm², RJ45 a RJ45, HIROSE, negro, 2 m (P7HS-0200-SW)

The Sommer Cable SC-Mercator CAT.7 PUR Network Patch Cable is a high-performance, professional-grade Ethernet cable designed for demanding applications in audio/video, studio, stage, industrial, and data center environments. With a length of 10 meters and a sleek black finish, this cable features RJ45 male connectors on both ends, utilizing premium HIROSE connectors for reliable, secure connections. The cable is constructed with S/FTP shielding (PiMF + Overall Braid Shield) and a robust PUR (Polyurethane) jacket, ensuring excellent protection against interference and physical wear. It supports data transfer rates up to 10 Gigabit Ethernet (10GBASE-T) and a bandwidth of up to 600 MHz, making it ideal for high-speed, high-bandwidth networks.

Advantages

This cable offers superior shielding and durability, ensuring stable data transmission even in electrically noisy environments. The PUR jacket is halogen-free, flexible, and resistant to oils, chemicals, and abrasion, making it suitable for both indoor and outdoor use. The stranded AWG 26/7 conductors provide flexibility while maintaining signal integrity, and the 100 Ohm impedance ensures compatibility with standard Ethernet equipment.

Suitable for

• Professional audio/video installations
• Studio and stage networking
• Industrial Ethernet applications
• Data center patching
• High-speed data transfer up to 10 Gbps

Key specifications

• Cable Type: Network Patch Cable
• Cable Category: CAT.7
• Connector 1: RJ45 Male
• Connector 2: RJ45 Male
• Cable Length: 10 meters
• Jacket Material: PUR (Polyurethane)
• Shielding: S/FTP (PiMF + Overall Braid Shield)
• Data Transfer Rate: Up to 10 Gbps
• Bandwidth: Up to 600 MHz
• Conductor Material: Oxygen-Free Copper (OFC)
• Conductor Gauge: AWG 26/7 (Stranded)
• Outer Diameter: 7.5 mm
• Impedance: 100 Ohm
• Color: Black
• Connector Brand: HIROSE
• Halogen-Free: Yes
• Number of Pairs: 4 Twisted Pairs
• Operating Temperature: -30°C to +70°C

Recommendations

For optimal performance, use this cable with CAT.7 compatible devices and avoid sharp bends or kinks during installation. The PUR jacket provides excellent durability, but ensure proper strain relief at connection points.
