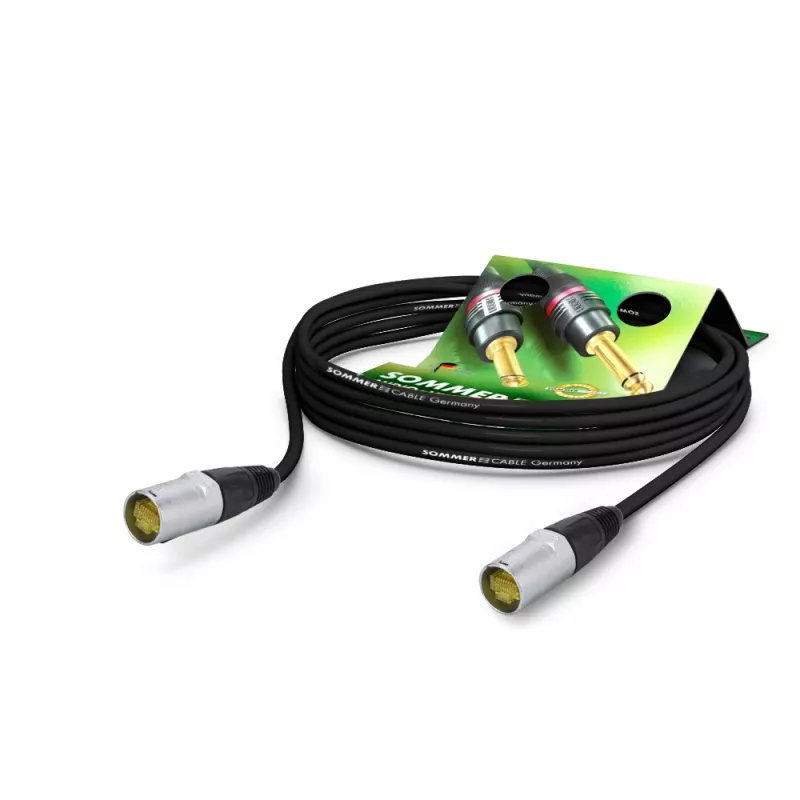

Sommer Cable SC-Mercator CAT.7 PUR cable de red, 8 x 0,14 mm², RJ45 a RJ45, NEUTRIK, negro, 5 m (P7NE-0500-SW)

The Sommer Cable SC-Mercator CAT.7 S/FTP PUR Network Cable is a high-performance industrial-grade patch cable designed for demanding applications in studio, live, outdoor, and event technology. With its robust PUR jacket and S/FTP shielding, it ensures reliable data transmission up to 10 Gigabit Ethernet and a bandwidth of 600 MHz. This 1.0 meter cable features gold-plated RJ45 connectors and supports PoE++ (IEEE 802.3af/at/bt), making it ideal for powering devices over the network.

Advantages

• Superior shielding (S/FTP) for interference-free transmission in electrically noisy environments
• Durable PUR jacket resistant to abrasion, oil, and UV, suitable for outdoor and industrial use
• Supports PoE++ for high-power devices up to 100W
• Halogen-free and flame-retardant (IEC 60332-1-2) for safety in public installations
• Gold-plated contacts ensure long-term corrosion resistance and optimal signal integrity

Suitable for

• Industrial Ethernet networks (PROFINET, EtherCAT)
• Live sound and lighting systems
• Outdoor and event technology
• Data centers and server rooms requiring high reliability
• PoE-powered devices such as cameras, access points, and IoT sensors

Key specifications

• Cable Standard: CAT.7
• Shielding: S/FTP (PiMF)
• Data Rate: 10 Gigabit Ethernet (10GBASE-T)
• Bandwidth: 600 MHz
• Conductor: 4 x 2 x AWG26/7 stranded OFC copper
• Jacket Material: PUR (Polyurethane)
• Connector: RJ45 male to RJ45 male, gold-plated contacts (50µ")
• Length: 1.0 m
• Outer Diameter: 7.5 mm
• Impedance: 100 Ohm
• Operating Temperature: -30°C to +70°C
• Color: Black
• PoE Support: PoE, PoE+, PoE++ (IEEE 802.3af/at/bt)
• Halogen-free: Yes
• Flammability Rating: IEC 60332-1-2

Recommendations

For optimal performance in harsh environments, pair this cable with Sommer Cable's ruggedized RJ45 connectors and cable glands. Ensure proper strain relief and avoid sharp bends to maintain signal integrity.
