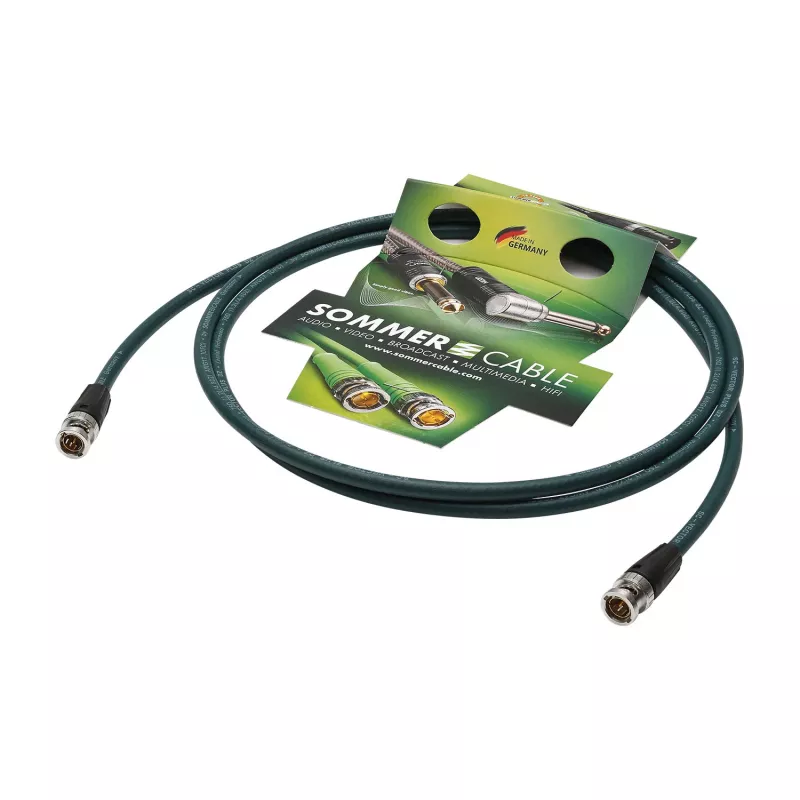

Sommer Cable SC-Vector PLUS 1.2/4.8 DZ Cable de vídeo Patch UHD, conector BNC macho a conector BNC macho, NEUTRIK, verde, 10 m (DZGR-1000-GN-SW)

The Sommer Cable SC-Vector Plus 1.2/4.8 DZ HD-SDI Video Patch Cable is a professional-grade coaxial cable designed for high-definition video transmission. Featuring BNC male connectors on both ends, this 0.5-meter patch cable delivers exceptional signal integrity for HD-SDI, 3G-SDI, and HDTV applications. With its double shielding and 75 Ohm impedance, it ensures reliable performance in broadcast, studio, and video production environments.

Advantages

This cable offers superior shielding effectiveness (100% foil + 95% braid) to minimize electromagnetic interference, ensuring pristine video quality. The solid bare copper conductor and gas-foamed PE dielectric provide low attenuation and high velocity of propagation (82%). Its robust PVC jacket withstands harsh conditions, making it ideal for permanent installations or patching.

Suitable for

• Broadcast studios and OB vans
• Video production and post-production facilities
• HD-SDI and 3G-SDI signal distribution
• HDTV and SD-SDI video patching
• Security and surveillance systems

Key specifications

• Cable type: SC-Vector Plus 1.2/4.8 DZ
• Connectors: BNC male (75 Ohm) both ends
• Length: 0.5 m
• Impedance: 75 Ohm
• Conductor: Solid bare copper, 1 x 1.2 mm (AWG 17)
• Dielectric: Gas-foamed PE, 4.8 mm diameter
• Shielding: Double (copper braid + AL/PT foil)
• Jacket: PVC, 6.1 mm diameter
• Attenuation: 22.5 dB/100m @ 1 GHz, 40.5 dB/100m @ 3 GHz
• Return loss: >20 dB up to 3 GHz
• Operating temperature: -30°C to +70°C
• Colour: Black

Recommendations

For optimal performance, use with 75 Ohm BNC connectors and avoid sharp bends. This cable is ideal for short patch connections in 19-inch racks or between devices.
