Soporte de pared con brazo oscilante Chief negro

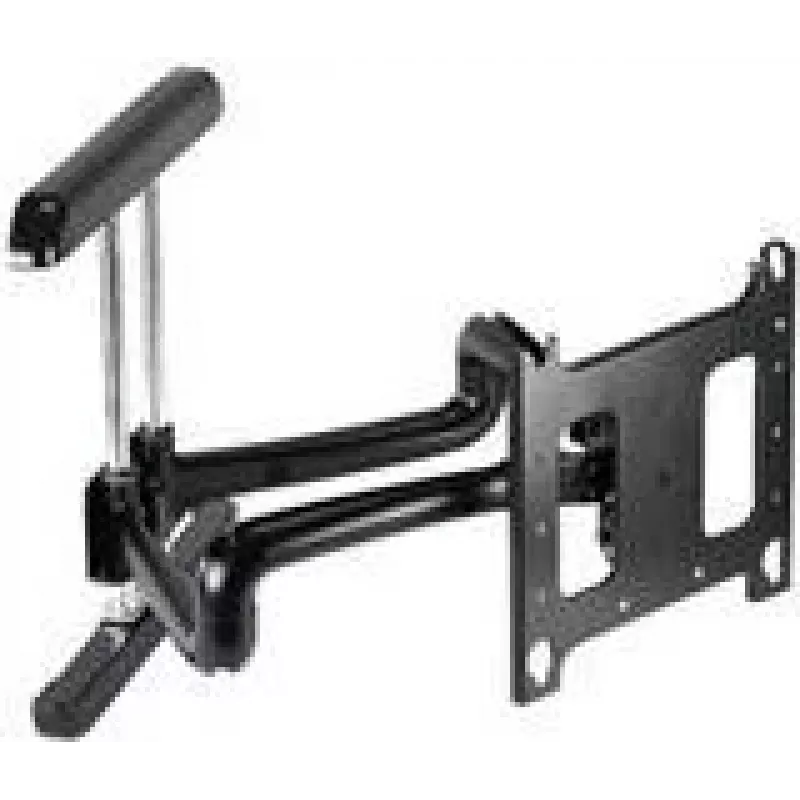

The Chief Wall Mount Swing Arm (model PDRUB) is a full-motion mounting solution for LCD and plasma flat panels. Designed to support displays up to 90.7 kg, the black swing arm enables flexible placement and optimal viewing from multiple angles while remaining compact when stowed.

Advantages

The mount uses Centris Technology for fingertip tilt adjustment and a ClickConnect system for tool-free latching with an audible click to confirm the panel is secured. Post-installation height adjustment up to 1" (25 mm) simplifies alignment. The arm extends up to 37" (93.98 cm) for broad viewing positions and features an integrated CableTrac system to route cables through the arm for a neater installation. The screen can be mounted in portrait or landscape orientation; optional PAC400 or MAC400 accessories enable rotation without removing the screen.

Suitable for

• Residential and commercial LCD or plasma displays
• Rooms requiring wide viewing angles or variable seating positions
• Installations where clean cable management is desired

Key specifications

• Maximum weight capacity: 90.7 kg
• Tilt range: -17° to 5° (Centris Technology fingertip tilt)
• Swivel: 2.5°
• Extension: up to 37" (93.98 cm); low-profile in home position
• Post-installation height adjustment: up to 1" (25 mm)
• Colour: Black
• Mounting orientation: portrait or landscape (rotation optional with PAC400/MAC400)

How to use

Mount the swing arm to a suitable wall surface following the included installation template and hardware. Attach the flat panel to the mounting bracket and use the ClickConnect mechanism to latch the display in place until an audible click is heard. Adjust the tilt with Centris Technology for fingertip control and fine-tune height using the post-installation adjustment. Extend or retract the arm to set the desired viewing distance and route cables through the CableTrac channels inside the arms for a tidy setup.

Recommendations

Ensure the wall structure and fasteners used are rated to support the mount and the display weight (up to 90.7 kg). Use PAC400 or MAC400 accessories when rotation between portrait and landscape is required without removing the screen. Periodically check fasteners and cable routing for security and wear.
