Soporte de pared InLine Basic 23120A para televisor plano 37-70 pulgadas

The InLine Basic 23120A wall mount is designed for flat screen TVs from 37 to 70 inches and supports up to 50 kg. Its compatible VESA range from 200 x 200 mm to 600 x 400 mm accommodates a wide variety of displays. The mount offers a tilt adjustment between -10° and 5° and sits 5.6 cm from the wall, providing a low-profile, space-saving installation with a black finish to match most interiors.

Advantages

The mount combines broad VESA compatibility and a 50 kg load capacity to suit many mid-to-large size TVs. Its slim 5.6 cm distance from the wall reduces visual bulk while the -10° to 5° tilt range helps optimize viewing angle and reduce reflections. Constructed for single-display support in a discreet black finish, the unit is straightforward to integrate into living rooms, offices, or commercial spaces.

Suitable for

• Mounting 37–70 inch flat screen TVs in homes and apartments
• Wall installation in meeting rooms and small offices
• Use in public or commercial display areas where a slim profile is desired
• Replacement of older fixed mounts with improved tilt capability

Key specifications

• Compatible screen size: 37–70 inches
• Maximum load capacity: 50 kg
• VESA compatibility: 200 x 200 mm up to 600 x 400 mm

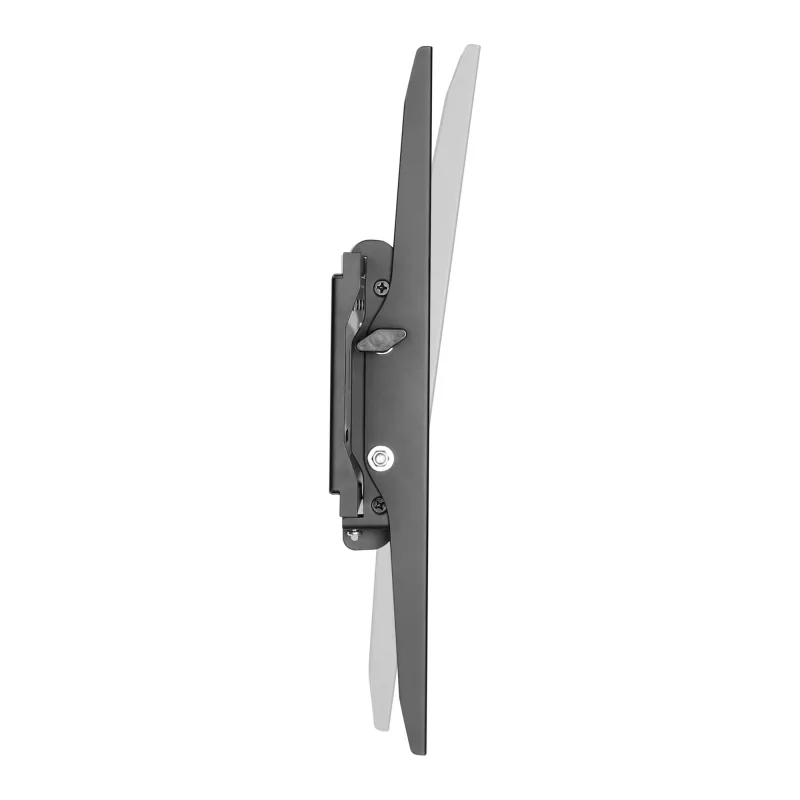

• Tilt adjustment: -10° to 5°
• Profile from wall: 5.6 cm
• Colour: Black
• Supports a single display

How to use

Select a suitable mounting location on a solid wall or appropriate stud, verifying that the wall and fixings can bear the combined weight of the TV and mount. Attach the mount plate to the wall using appropriate anchors and screws (not supplied if not included), then fix the TV brackets to the display according to the VESA pattern. Lift the TV onto the wall mount and secure it in place, then adjust tilt between -10° and 5° to achieve the desired viewing angle. Confirm all fastenings are tight and the display is stable before leaving the installation.

Recommendations

Use appropriate wall anchors or bolts for the wall material and ensure TV weight does not exceed 50 kg. Measure the TV VESA pattern before installation to confirm compatibility. When installing at height or with a large display, use two people for safe lifting and alignment. Periodically check fastenings for tightness and integrity.
