Soporte de pared para pantalla plana B-Tech Heavy Duty Twin Cantilever Arm VESA 800 x 600 peso máximo 125 kg

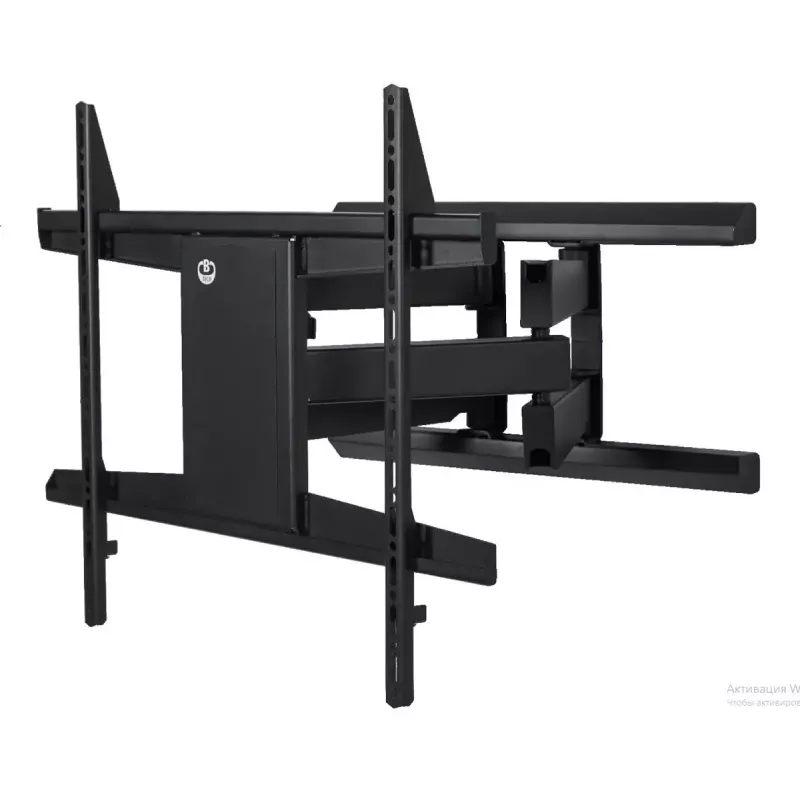

The B-Tech Heavy Duty Twin Cantilever Arm Wall Mount (BT8228/B) is engineered for extra-large flat screens, supporting displays from 65" to 120" and up to 125 kg. It offers VESA compatibility from 300 x 200 mm to 800 x 600 mm and an adjustable tilt range of -3° to 15°. The mount extends from 9 cm to 62.8 cm from the wall and includes integrated cable management and cover plates for a neat installation suitable for commercial and residential environments.

Advantages

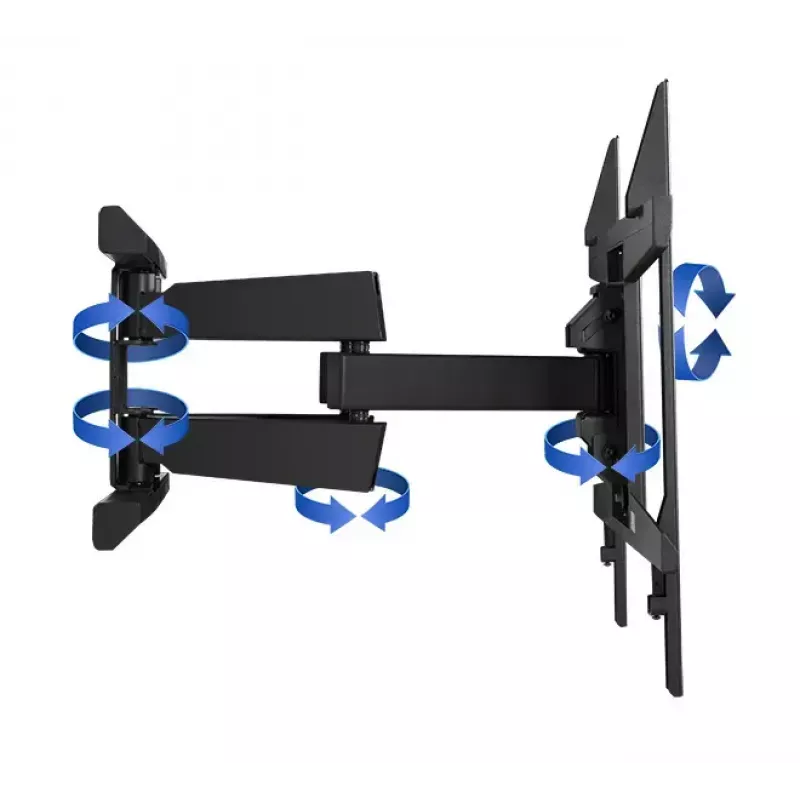

This twin cantilever arm mount provides tool-less tilt and swivel adjustments with three swivel points for smooth repositioning, whether folded flat or fully extended. The slim-line design allows close-to-wall installation, supports both portrait and landscape orientations, and offers up to ±2° of fine screen levelling and lateral adjustment after mounting. Included features such as keyhole mounting, a drilling template, safety screws, and all necessary hardware simplify and secure installation.

Suitable for

• Large TVs and commercial displays (65"–120")
• Conference rooms and meeting spaces
• Retail and digital signage installations
• Home theatre and living-room wall mounting

Key specifications

• Maximum weight capacity: 125 kg
• Supported screen size: 165.1 cm (65") to 3.05 m (120")
• VESA compatibility: 300 x 200 mm to 800 x 600 mm
• Tilt range: -3° to 15°
• Screen levelling: ±2°
• Extension from wall: 9 cm to 62.8 cm
• Number of displays: 1
• Finish: Metal, Black

How to use

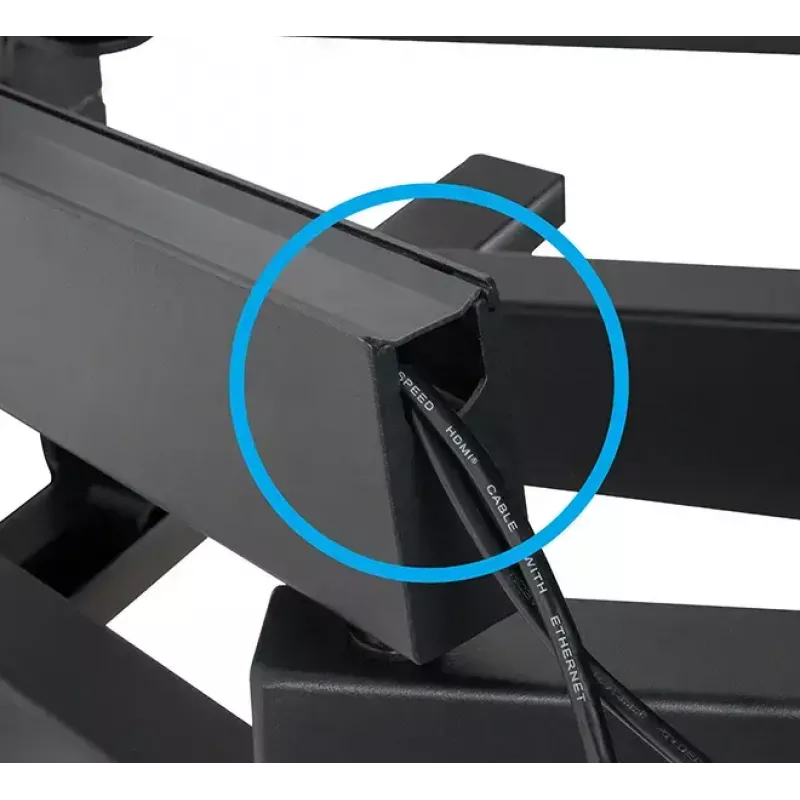

Position the wall plate using the included drilling template and secure it with appropriate fixings for your wall type. Mount the arm assembly to the wall plate, then attach the screen to the VESA brackets and hook it onto the mount. Use the tool-less tilt and swivel points to set the desired viewing angle and perform fine levelling up to ±2°. Route cables through the integrated cable management channels and fit the cover plates to conceal fixings and wiring.

Recommendations

Ensure the wall and fixings are rated to support the combined weight of the mount and screen (maximum 125 kg). For safety and optimal performance, follow the supplied installation template and use appropriate anchors for the specific wall material; consider professional installation for heavy or high-mounted screens.
