Soporte de pared para TV EQUIP 43 pulgadas–95 pulgadas inclinación perfil bajo para televisores de 75 kg, VESA 200x200–800x400, inclinación 0–8°, distancia a la pared 4,2 cm, negro

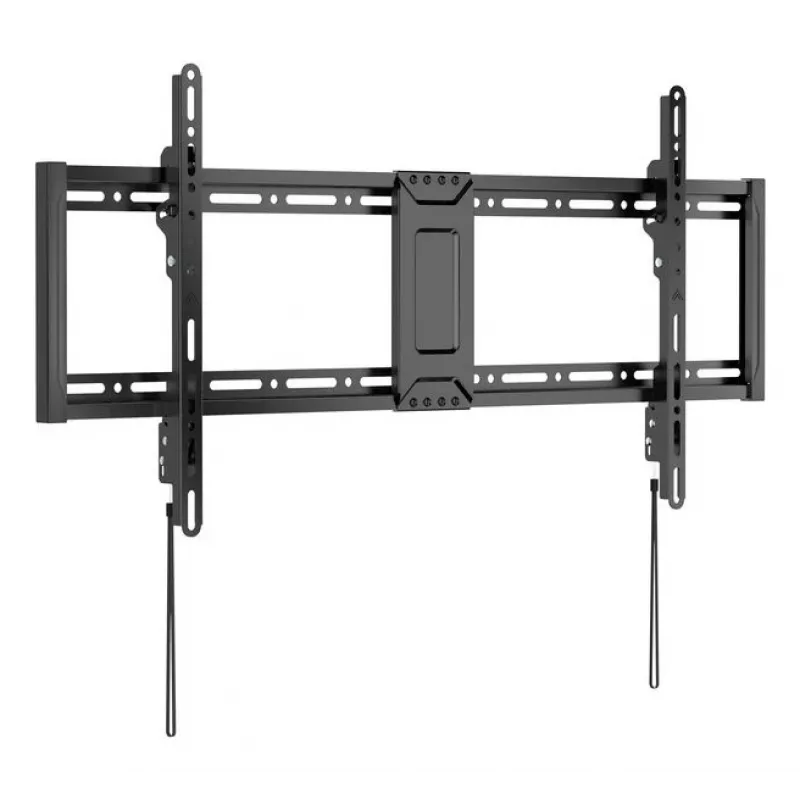

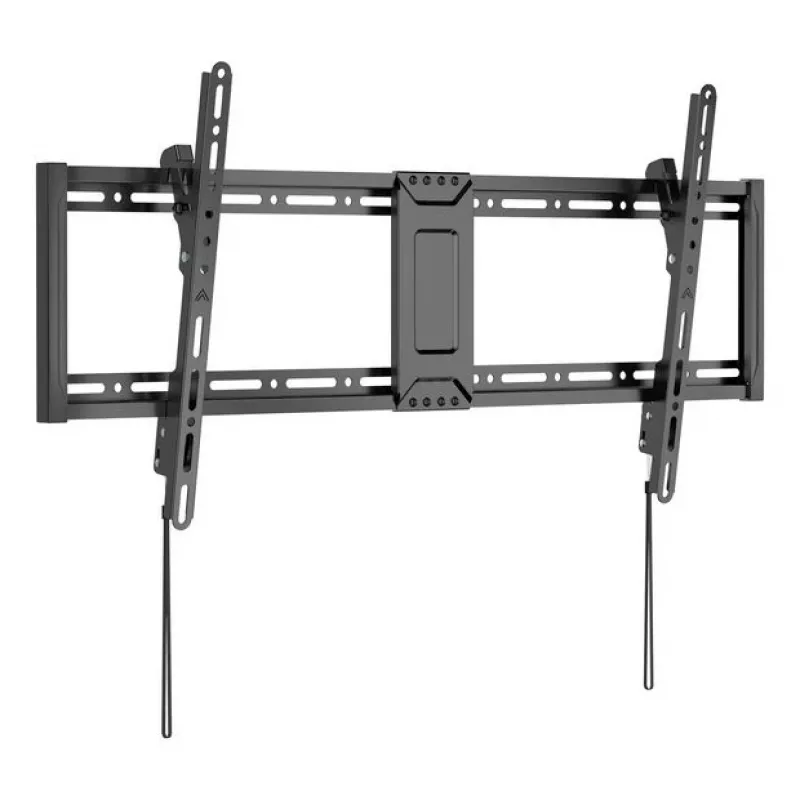

The Equip 650361 43"–95" Tilt Slim TV Wall Mount Bracket is a slim, low-profile bracket for securely mounting single large-screen televisions from 43 to 95 inches (109.2 cm–2.41 m). It supports VESA mounting patterns from 200×200 up to 800×400 mm, has a maximum load capacity of 75 kg and offers a controlled tilt range to improve viewing angles while keeping the display close to the wall.

Advantages

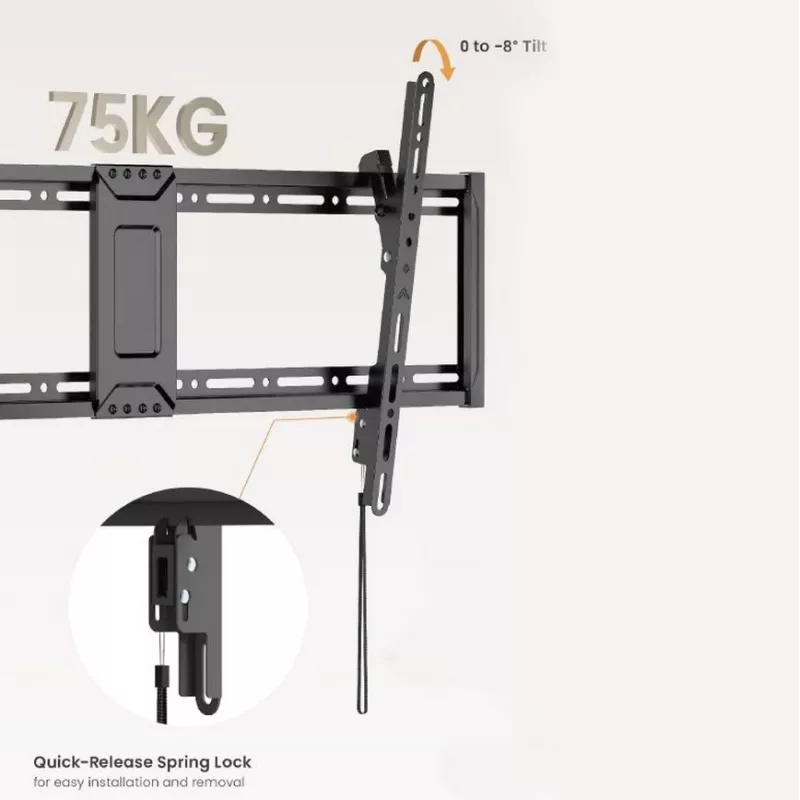

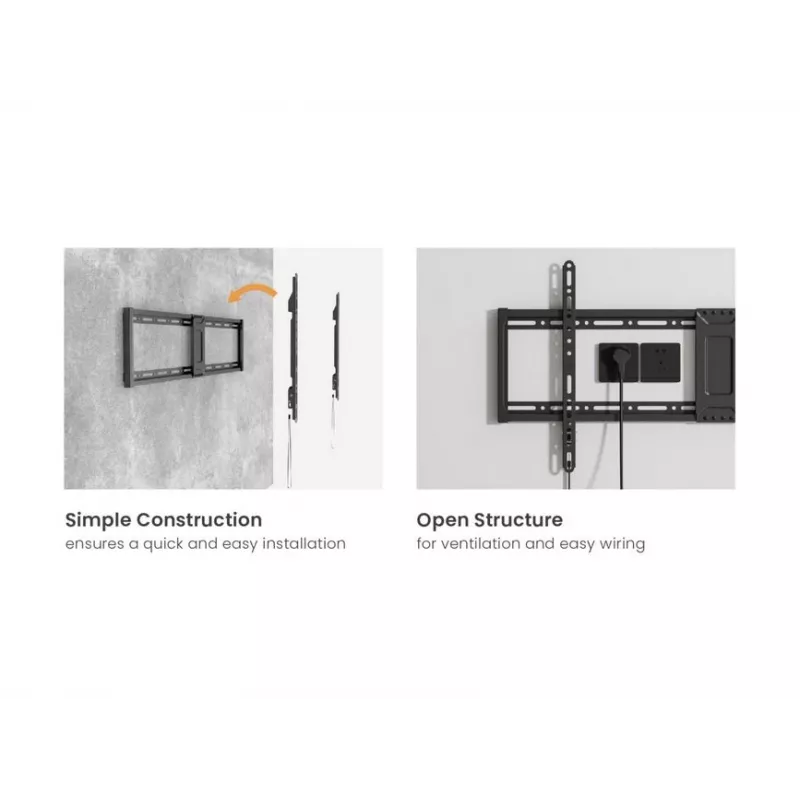

This slim tilt mount combines a compact 4.2 cm wall offset with a robust 75 kg load capacity, making it suitable for large LED/LCD/OLED TVs. The design includes automatic spring locks with quick-release cords for easier installation and removal, an open architecture for better ventilation and cable access, and VESA compliance for wide compatibility with major TV brands and models.

Suitable for

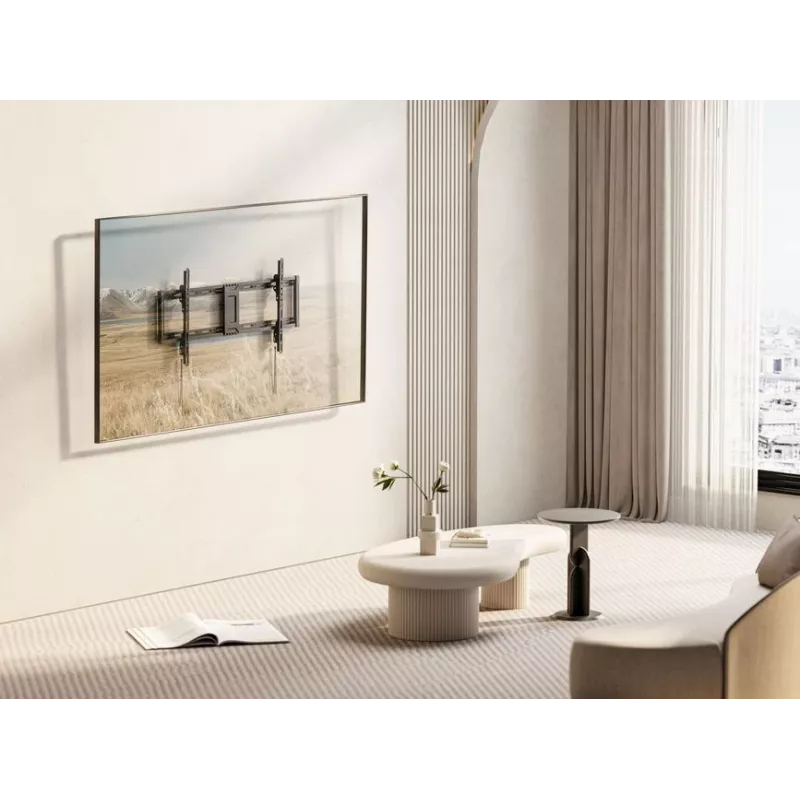

• Living rooms and home theaters
• Bedrooms
• Offices and meeting rooms
• Commercial display installations where a slim profile is required

Key specifications

• Supported screen sizes: 43"–95" (109.2 cm–2.41 m)
• Maximum weight capacity: 75 kg
• VESA compatibility: 200×200 mm to 800×400 mm

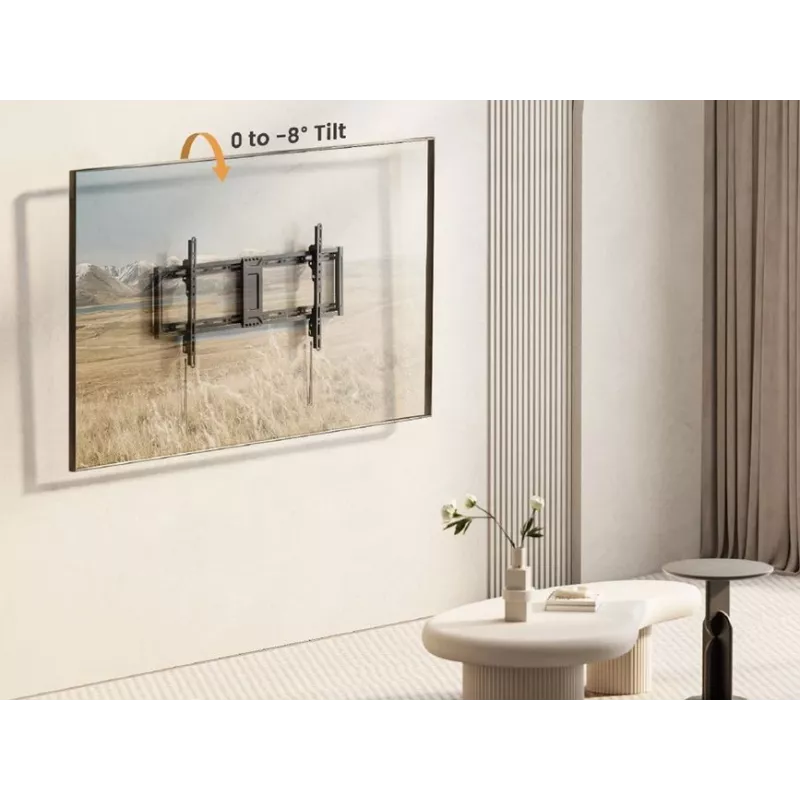

• Tilt range: 0–8°
• Wall offset (distance from wall): 4.2 cm
• Number of displays supported: 1
• Materials: ABS, stainless steel
• Colour: Black

How to use

Attach the bracket to a suitable load-bearing wall following the included instructions and using the supplied hardware. Match the TV's VESA holes to the mounting plate and secure the display to the bracket. Use the quick-release cords to engage or disengage the automatic spring locks when installing or removing the TV. Adjust the tilt within the 0–8° range to reduce glare and set the preferred viewing angle.

Recommendations

For safe installation, mount the bracket to studs or a solid concrete wall and verify the combined weight of the TV and accessories does not exceed 75 kg. Use appropriate tools and follow the supplied manual; seek professional installation if unsure.
