Soporte de pared Schwaiger LWHT5540 513 190,5 cm (75") negro

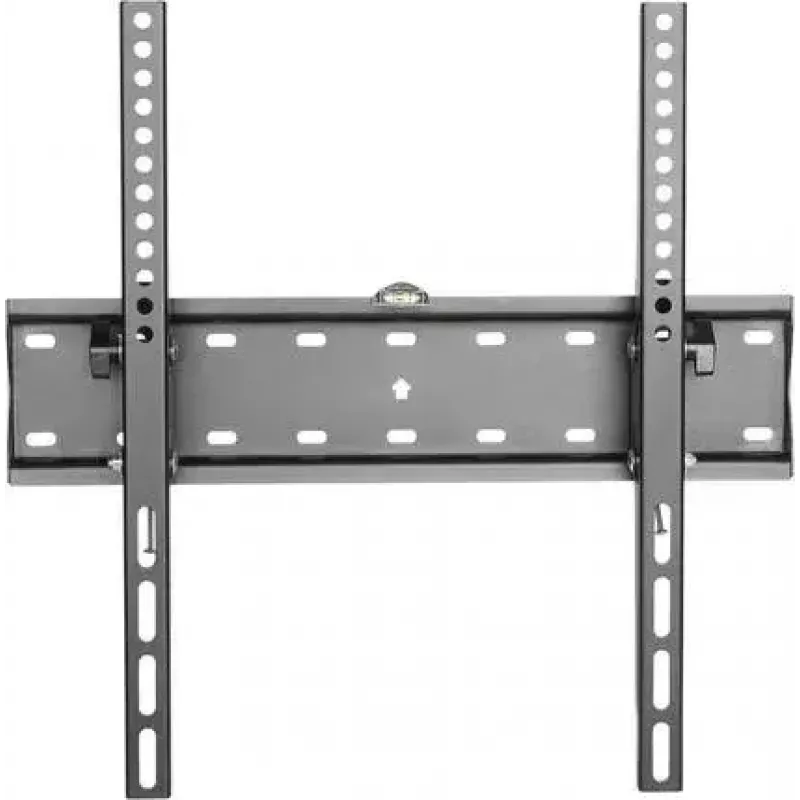

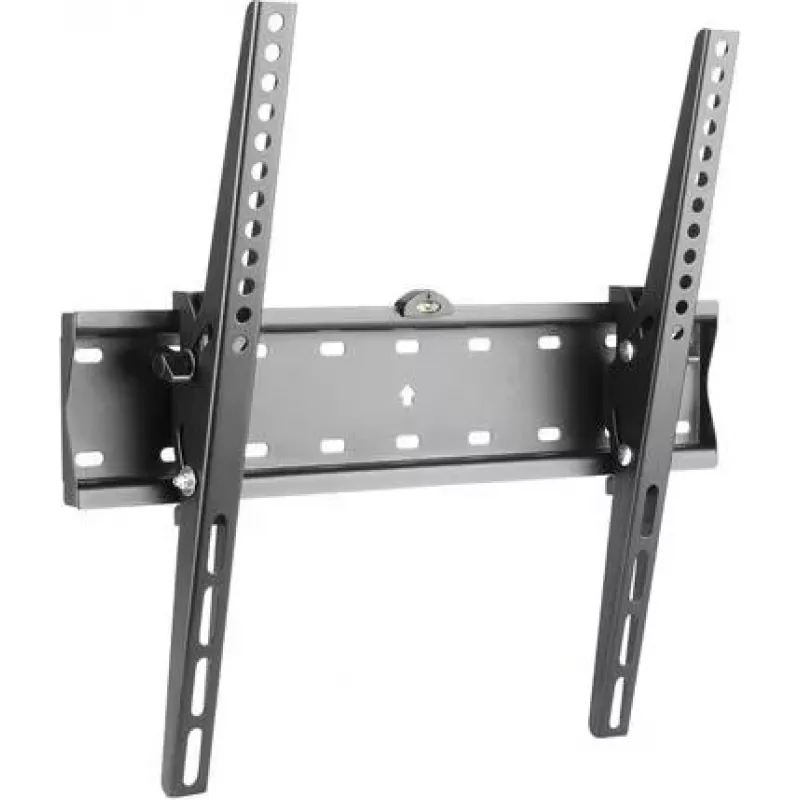

The Schwaiger LWHT5540 513 wall mount bracket is designed for mounting a single flat-panel display ranging from 32" to 75". Finished in black, the bracket provides a stable, low-profile solution for TVs and monitors that conform to VESA patterns between 200 x 200 mm and 400 x 400 mm. It supports displays up to 40 kg and offers a tilt adjustment to help achieve a comfortable viewing angle.

Advantages

This wall mount delivers a reliable combination of strength and adjustability: a maximum load capacity of 40 kg ensures secure support for most consumer TVs within the specified size range, while the tilt range from -12° to 12° allows reduction of glare and optimization of sight lines. The compact, black design keeps the installed display close to the wall for a neat appearance and helps maintain a low visual profile in living rooms, conference rooms or public spaces.

Suitable for

• Home entertainment — mounting LED, LCD or plasma TVs between 32" and 75"
• Office meeting rooms and huddle spaces where a single display is required
• Retail or public information displays with compatible VESA patterns
• Wall installations where a tilted viewing angle is beneficial to reduce reflections

Key specifications

• Compatible screen sizes: 32"–75"
• Supported VESA patterns: 200 x 200 mm up to 400 x 400 mm
• Maximum load capacity: 40 kg
• Tilt adjustment: -12° to 12°
• Number of displays supported: 1
• Finish: black

How to use

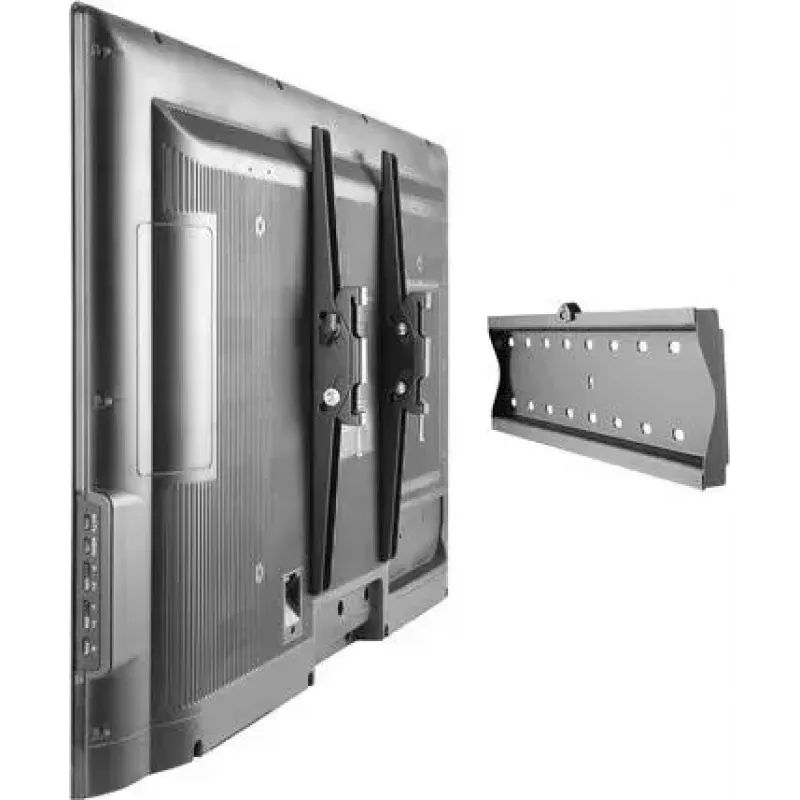

Choose a suitable mounting location on a solid wall or into appropriate wall anchors rated for the combined weight of the bracket and display. Attach the bracket plate to the display using screws that match the display’s VESA threaded holes, then secure the wall plate to the wall following the included mounting template and hardware guidelines. After hanging the display on the wall plate, adjust the tilt between -12° and 12° to achieve the desired viewing angle and tighten any adjustment screws to lock the position. Verify all fastenings and confirm the display is stable before regular use.

Recommendations

Use appropriate wall anchors or fixings for your wall type (solid masonry, drywall with studs, or concrete). Confirm that the combined weight of the display and mount does not exceed 40 kg and that the display’s VESA pattern falls within the supported 200 x 200 mm to 400 x 400 mm range. For safety and optimal positioning, consider two people when lifting and aligning large screens and follow local building regulations for wall-mounted installations.
