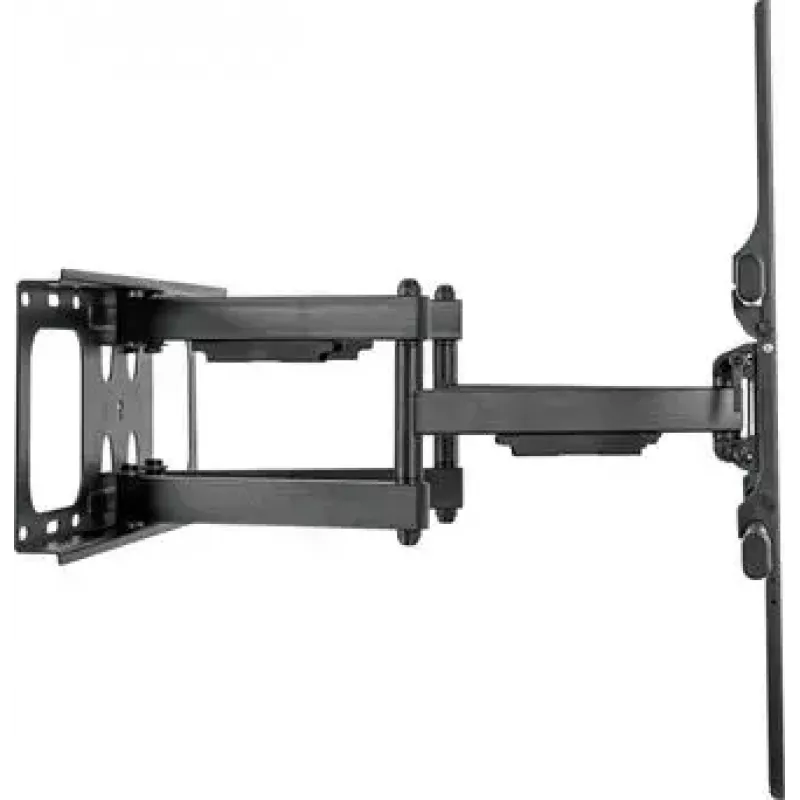

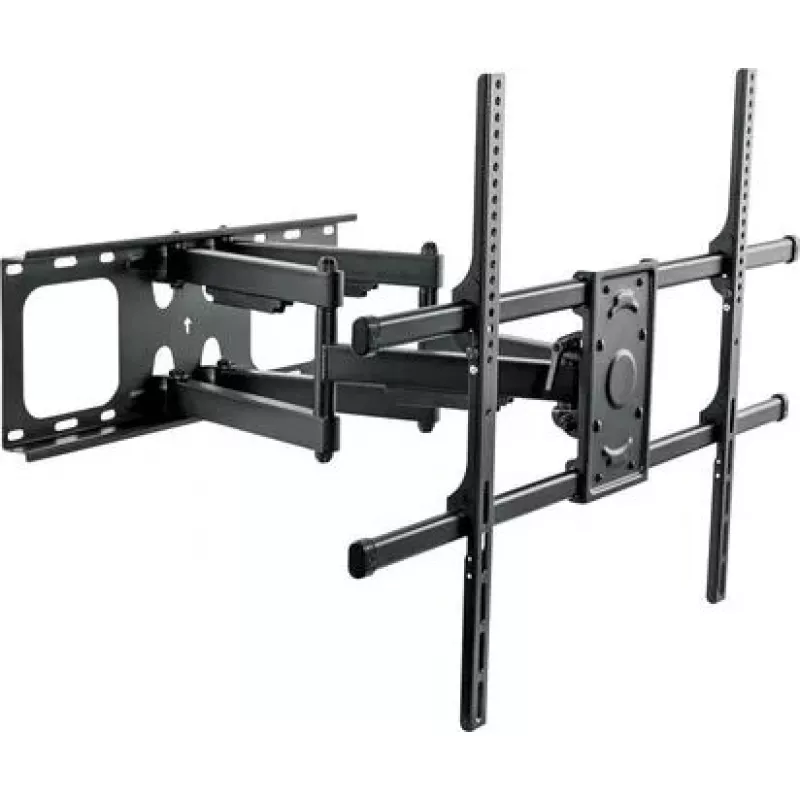

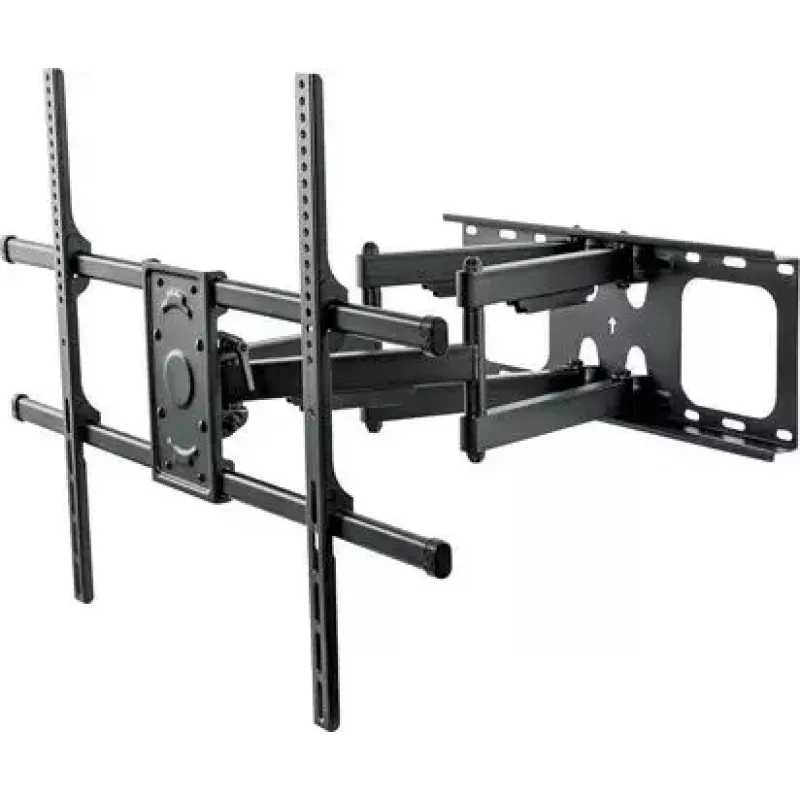

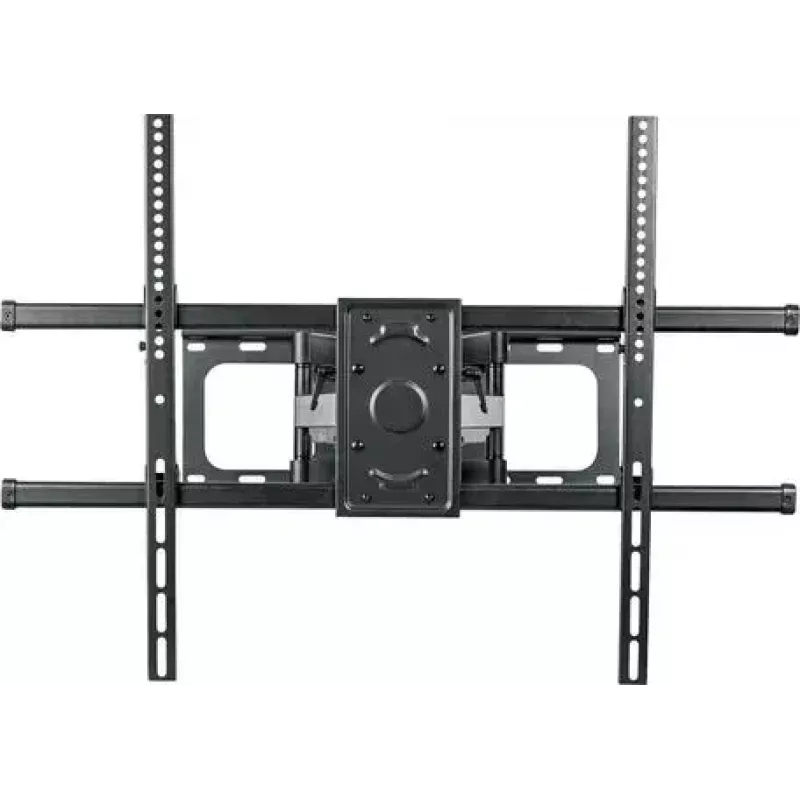

Soporte de pared Schwaiger MOTION 8 2,29 m negro 75 kg 50–90 inch

The Schwaiger MOTION 8 wall mount is designed for mounting a single flat-panel display ranging from 50 to 90 inches and supporting up to 75 kg. Constructed in black finish, the bracket provides adjustable distance from the wall between 6.9 cm and 63.5 cm and accepts a wide range of VESA patterns from 200 x 200 mm up to 800 x 600 mm. Tilt and rotation adjustments allow fine positioning with a tilt range from -15° to +5° and a small rotational adjustment for alignment.

Advantages

The mount combines a high load capacity with extended compatibility across many screen sizes and VESA standards, reducing the need to check multiple mounting options. The adjustable extension range offers flexibility for recessed or protruding installations, while tilt and rotation adjustments facilitate optimal viewing angle and screen leveling. A black finish provides a discreet appearance compatible with most décor and AV setups.

Suitable for

• Home living rooms and media centers with large flat-screen TVs (50–90")
• Conference rooms and meeting spaces requiring wall-mounted displays
• Retail and public display installations needing a secure, adjustable mount
• Environments where variable distance from the wall is required for cable access or ventilation

Key specifications

• Maximum load capacity: 75 kg
• Supported screen size range: 50–90 inches
• VESA compatibility: 200 x 200 mm up to 800 x 600 mm
• Adjustment from wall: 6.9 cm to 63.5 cm

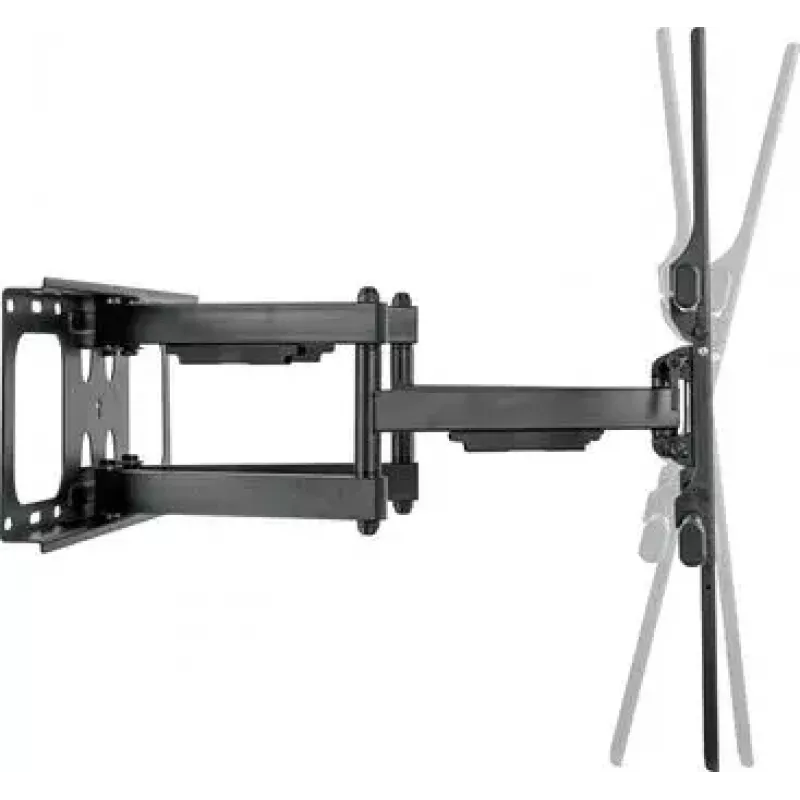

• Tilt range: -15° to +5°
• Rotation adjustment: approximately 3°
• Number of displays supported: 1
• Colour: Black

How to use

Mount the bracket to a suitable load-bearing wall following the mounting instructions provided by the manufacturer and using appropriate anchors or bolts for the wall material. Attach the display to the VESA interface on the bracket, ensuring the screen’s weight does not exceed the specified 75 kg limit and that the chosen VESA pattern is within the supported range. Adjust the distance from the wall to achieve the desired projection, then set the tilt and small rotation to level and angle the screen for optimal viewing. Verify all fasteners are tightened and check that cables have sufficient slack.

Recommendations

Use the mount on solid walls or properly reinforced surfaces and select appropriate fixings for concrete, brick, or stud walls. Confirm the display’s VESA pattern and weight before installation. For safety and best results, two people are recommended for mounting heavier displays and professional installation is advised for commercial or elevated installations.
