Soporte de TV/peana Peerless SA761PU 190,5 cm (75") Negro

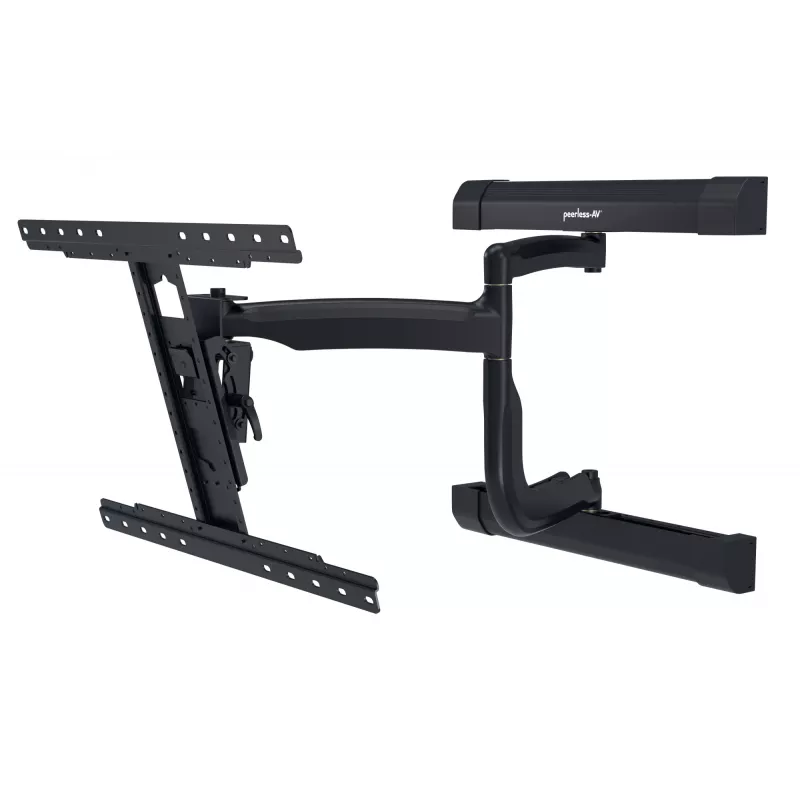

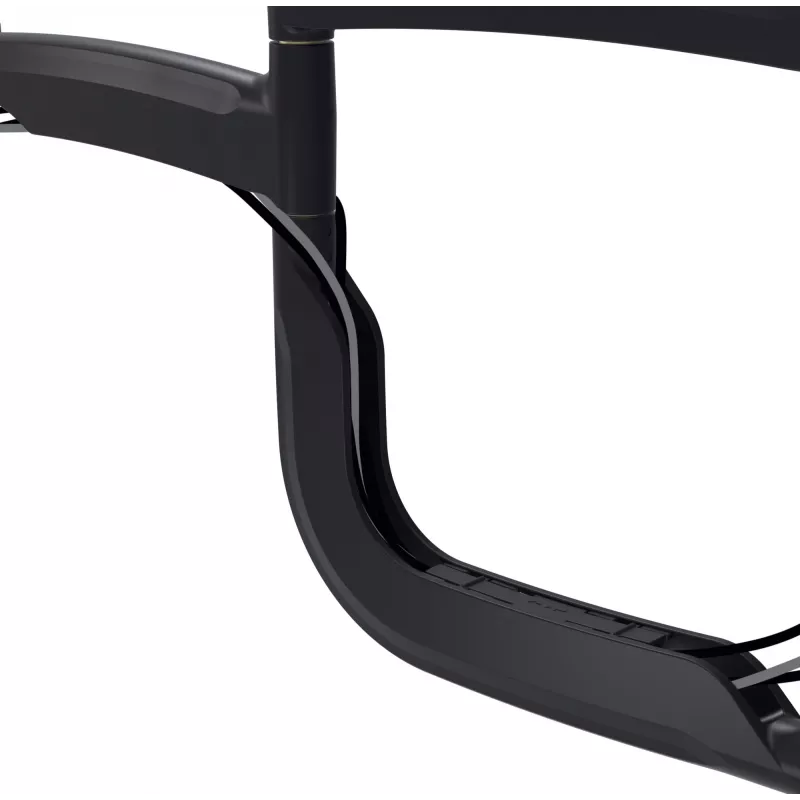

The Peerless SA761PU TV mount supports screens from 39" to 75" (up to 190.5 cm) and a maximum weight of 57 kg. Designed for versatile installations, the mount offers a retractable arm with a minimum distance to the wall of 3.1" (79 mm) and an extension up to 26.6" (676 mm). It includes an I-shaped adaptor plate to avoid blocking rear connections, integrated cable management to conceal cables, and a Hook-and-Hang™ system that enables single-person installation.

Advantages

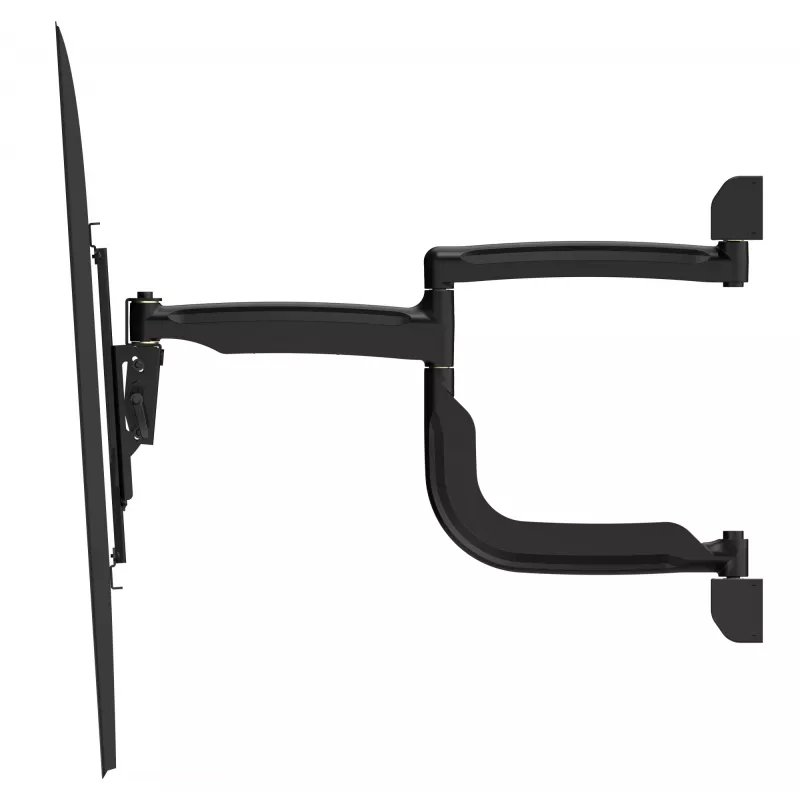

The articulating wall arm provides smooth extension and retraction for flexible viewing positions and lateral movement. Height adjustment after installation allows post-install leveling. One-Touch™ tilt gives +15°/-5° vertical tilt for easy angle adjustment. The mount supports a wide range of VESA patterns (200 x 100 mm to 600 x 400 mm) and keeps cables organized for a cleaner installation.

Suitable for

• Mounting 39"–75" TVs up to 57 kg
• Situations requiring adjustable viewing distance (79 mm to 676 mm)
• Installations where rear connections must remain accessible
• Single-person installation using Hook-and-Hang™

Key specifications

• Model: Peerless SA761PU
• Screen size compatibility: 39"–75" (up to 190.5 cm)
• Maximum load: 57 kg
• VESA compatibility: 200 x 100 mm to 600 x 400 mm
• Tilt range: -5° to +15°
• Height adjustment range: 0–13 mm
• Distance to wall: min 79 mm, max 676 mm
• Color: Black
• MPN: SA761PU, EAN: 735029266587

How to use

Attach the wall plate securely to a suitable stud or mounting surface following included instructions. Fix the I-shaped adaptor plate to the back of the display using the appropriate VESA holes and hardware. Use the Hook-and-Hang™ feature to hang the display on the wall plate, then complete final mounting and tighten fasteners. Adjust height within the 0–13 mm range and set the desired tilt using the One-Touch™ tilt mechanism. Extend or retract the arm to position the display between 79 mm and 676 mm from the wall. Route cables through the integrated cable management channels before finalizing the installation.

Recommendations

Check the TV’s weight and VESA pattern before installation to ensure compatibility. Mount the wall plate into a solid structural element (stud or concrete). Use the manufacturer-supplied hardware and follow local building codes. If unsure about wall type or load-bearing capacity, consult a professional installer.
