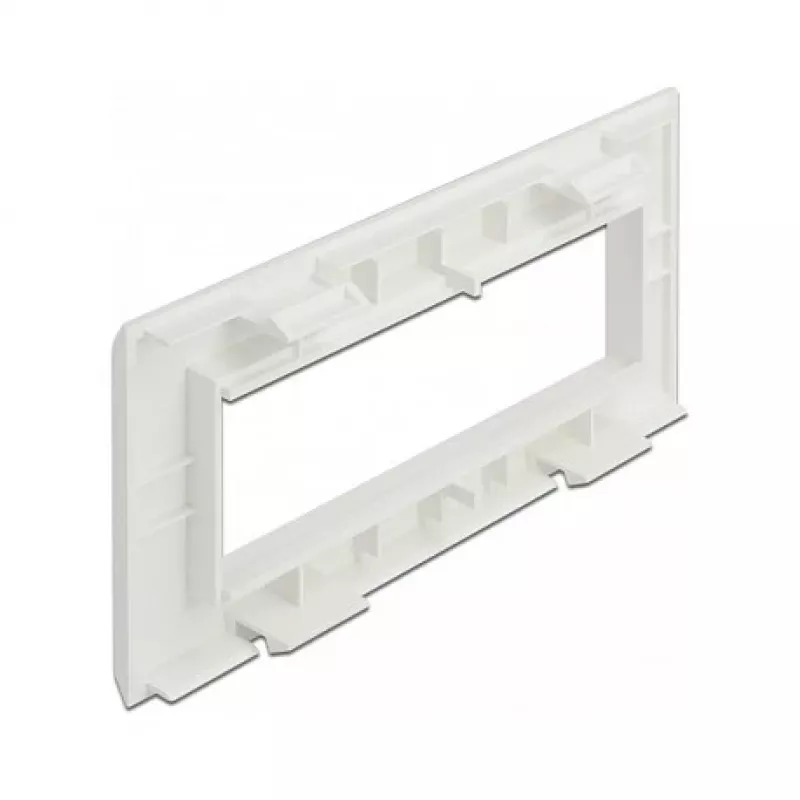

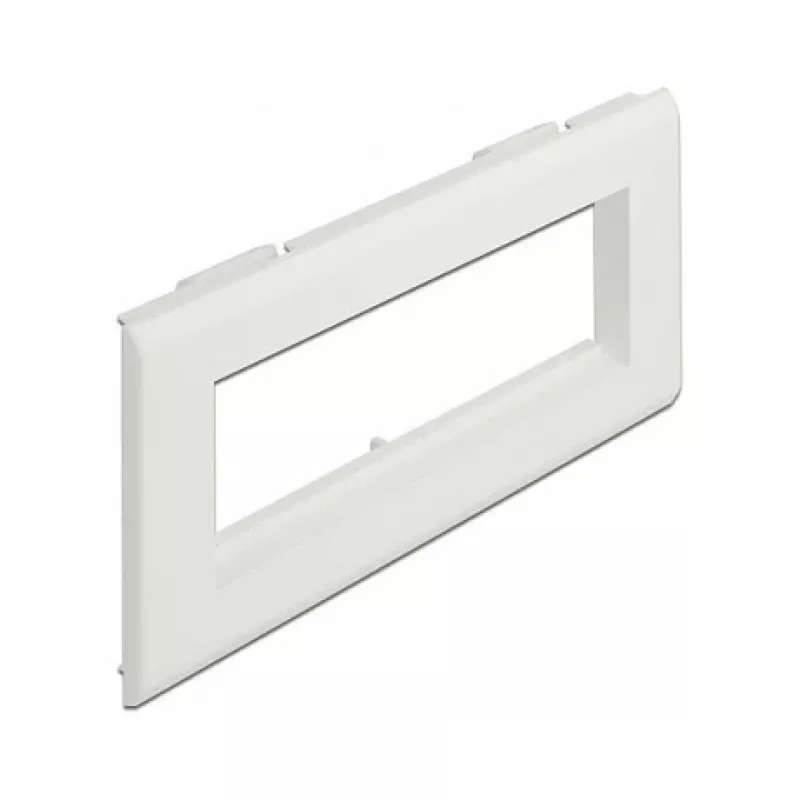

Soporte modular DeLOCK Easy 45 175 x 80 mm

The DeLOCK Easy 45 module holder is designed to mount Easy 45 modules with dimensions 45 x 45 mm or 22.5 x 45 mm into installation trunking. Manufactured from durable white ABS, this 175 x 80 mm holder provides a screwless snap‑in installation for trunking openings of approximately 76.5 mm.

Advantages

The holder supports standardised Easy 45 modules, enabling flexible combination of sockets, HDMI, USB and other connectors. Its screwless design allows tool‑free installation by inserting the holder into the trunking opening until it snaps into place. The ABS construction offers a stable, lightweight and durable solution for module mounting.

Suitable for

• Mounting Easy 45 modules (45 x 45 mm and 22.5 x 45 mm)
• Installation trunking with ~76.5 mm opening
• Organising AV, network and power connections in desks, cabinets or service channels

Key specifications

• Brand: DELOCK
• Model: Easy 45 module holder
• Dimensions (holder): 175 x 80 mm
• Material: Acrylonitrile Butadiene Styrene (ABS)
• Colour: White
• Compatible module sizes: 45 x 45 mm and 22.5 x 45 mm
• Installation type: Snap‑in, screwless for trunking opening ≈ 76.5 mm
• Manufacturer country: Taiwan
• MPN: 81317
• EAN: 4043619813179

How to use

Choose the required Easy 45 modules and assemble them into the module holder. Align the holder with the installation trunking opening (approx. 76.5 mm) and press it into the opening until it snaps into place. No tools or screws are required. To remove or reconfigure modules, pull the holder out of the trunking and change modules as needed.

Recommendations

Use compatible Easy 45 modules only and ensure the trunking opening matches the specified ≈ 76.5 mm to guarantee secure snap‑in fixation. Avoid excessive mechanical stress on installed connectors and follow any additional instructions supplied with individual modules.
