Spacetronik módulo conector coaxial F-Type / IEC - 100 uds. blanco

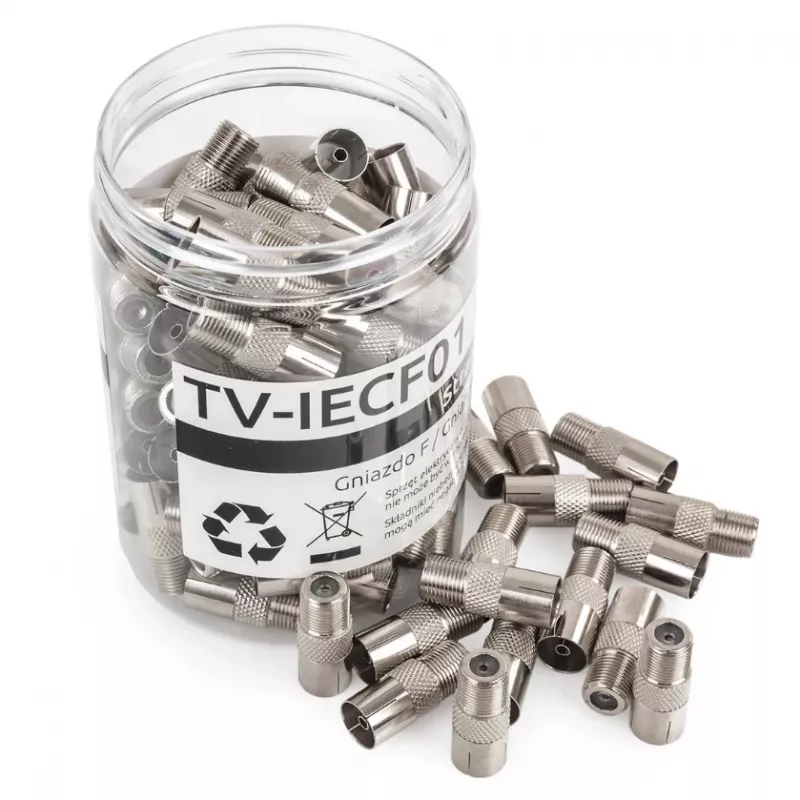

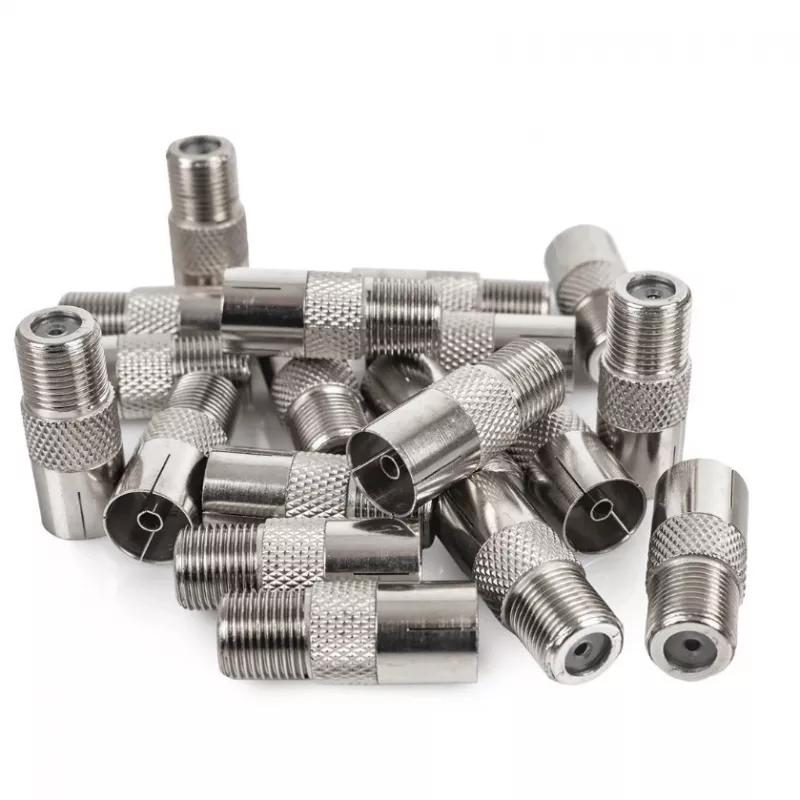

The Spacetronik TV-IECF01 is a high-quality coaxial connector module designed for professional satellite, terrestrial, and cable TV installations. This pack contains 100 pieces of white F-Type / IEC female pass-through connectors, ideal for modular wall plates and distribution boxes. Manufactured with nickel-plated brass connectors and an ABS plastic housing, it ensures reliable signal transmission with low insertion loss and excellent shielding.

Advantages

This connector module offers a compact, modular design that simplifies installation in standard wall plates or distribution systems. The F-Type connector supports DC pass for LNB power, making it suitable for satellite TV setups. With a frequency range of 5-2400 MHz and 75 Ohm impedance, it is compatible with DVB-T/T2, DVB-C, FM/DAB+, and SAT applications. The high shielding effectiveness minimizes interference, ensuring clear signal quality.

Suitable for

• Satellite TV (SAT) installations
• Terrestrial TV (DVB-T/T2) systems
• Cable TV (DVB-C) networks
• Radio (FM/DAB+) distribution
• Modular wall plates and distribution boxes

Key specifications

• Product Type: Coaxial Connector Module
• Connector 1: F-Type Female
• Connector 2: IEC Coaxial Female (TV Coaxial Female)
• Configuration: Pass-through / Straight
• Impedance: 75 Ohm
• Frequency Range: 5 - 2400 MHz
• Insertion Loss: < 1.5 dB
• Return Loss: > 10 dB
• DC Pass: Yes (on F-Type connector)
• Material (Connectors): Nickel-plated Brass
• Material (Housing): ABS Plastic
• Color: White
• Quantity: 100 pieces
• Mounting: Module for Wall Plates / Distribution Boxes
• Indoor use only

Recommendations

For optimal performance, use with high-quality coaxial cables and ensure proper termination. Suitable for indoor installations only. Always follow local regulations for TV and satellite installations.
