Splitter de vídeo DeLOCK 93250

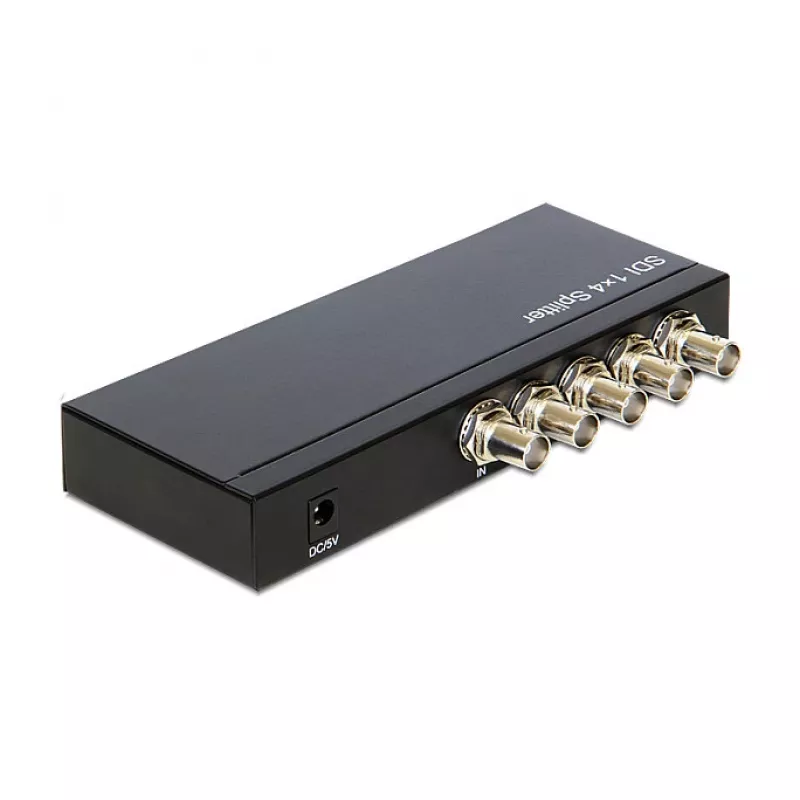

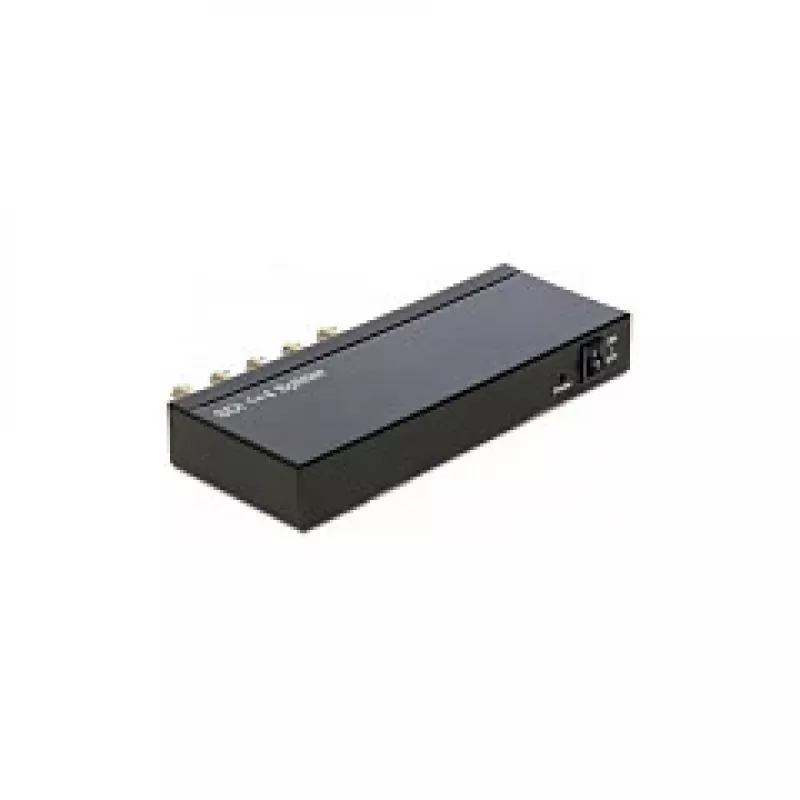

The DeLOCK 93250 video splitter receives a single SDI input and distributes the signal to up to four SDI outputs. It is compatible with common SDI video modes including 1080i, 1080p, 720p and 480i, and uses BNC connectors. The unit is housed in a compact metal casing (162 x 82 x 25 mm) with a black finish and requires an AC input of 100–240 V, 50–60 Hz.

Advantages

The DeLOCK 93250 provides four identical SDI outputs from one SDI source, enabling simultaneous connection of monitors, recorders or other SDI devices. Metal housing ensures durability and stable signal transmission via BNC connectors. Wide AC input range allows use in different regions without additional power adapters.

Suitable for

Key specifications

How to use

Connect the SDI source (for example a DVR or HD‑SDI camera) to the SDI input BNC connector. Use BNC cables to connect up to four output devices to the SDI output connectors. Plug the power cable into an appropriate AC supply (100–240 V, 50–60 Hz) and switch on the unit. Confirm signal presence on each output device and adjust source/output equipment settings as required.

Recommendations

Use high‑quality 75 Ω BNC SDI cables and keep cable runs within recommended SDI length limits for the supported resolution to ensure reliable signal quality. Install the splitter in a ventilated location and avoid exposure to moisture.
