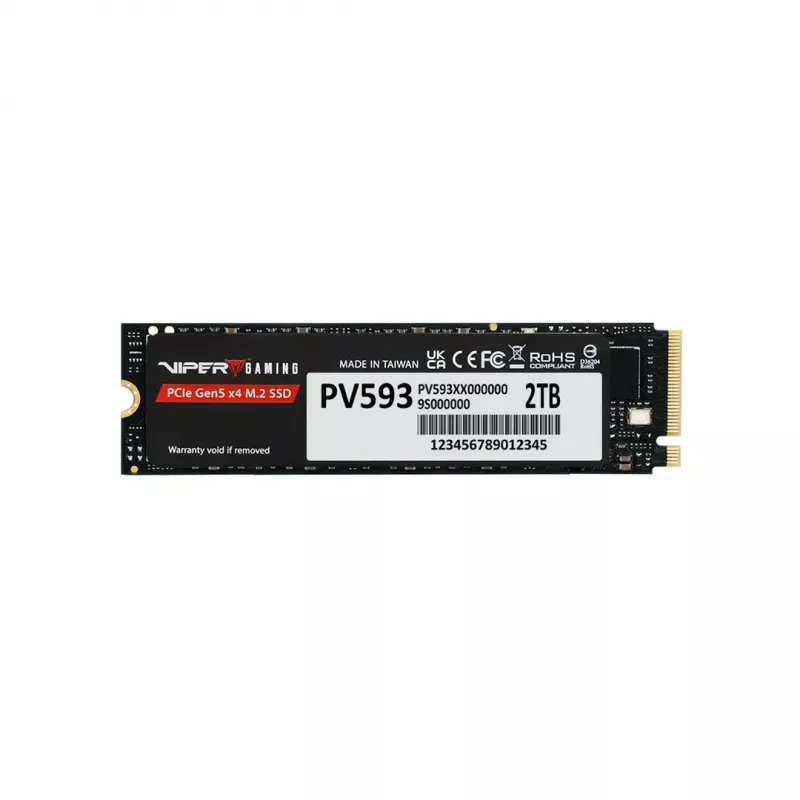

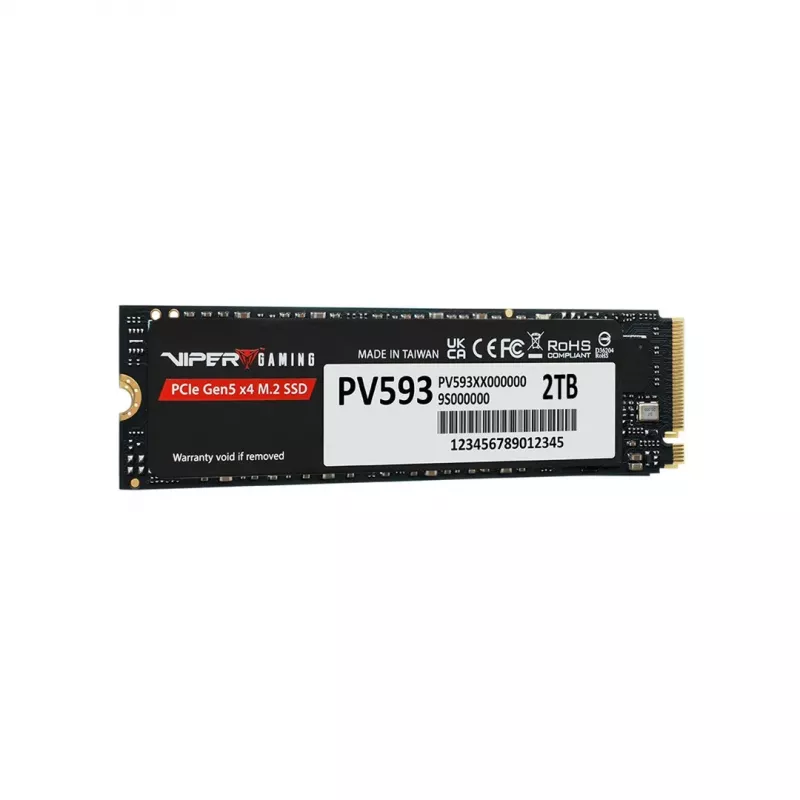

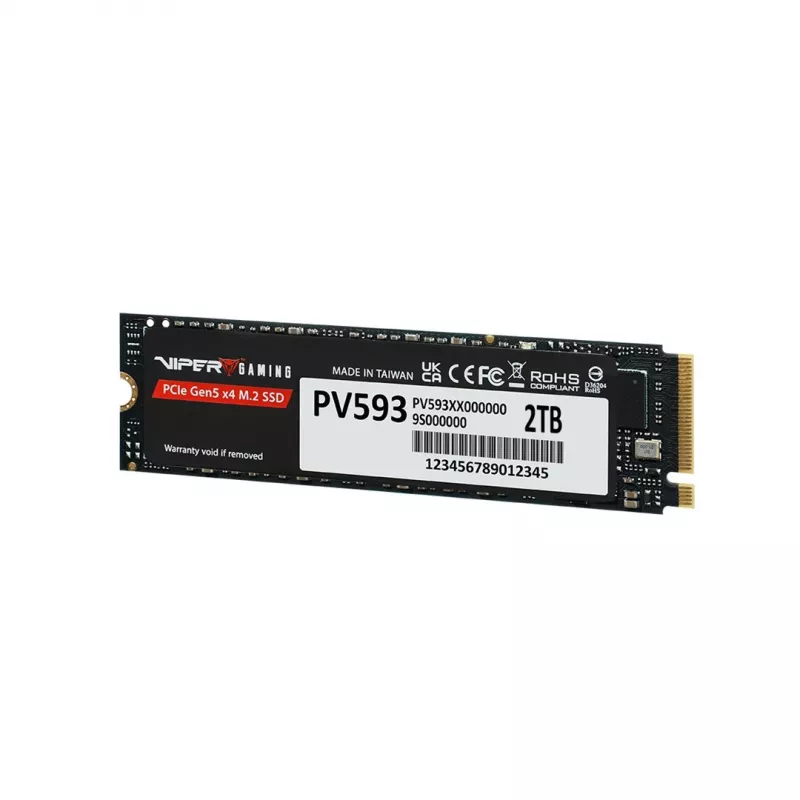

SSD M.2 2280 NVMe PCIe Gen5 x4 PATRIOT PV593P2TBM28H 2 TB, NVMe 2.0, 14000/13000 MB/s

M.2 2280 NVMe PCIe Gen5 x4 SSD PATRIOT PV593P2TBM28H is a high-performance M.2 2280 NVMe SSD with 2 TB capacity and PCIe 5.0 x4 interface. The drive supports NVMe 2.0 and delivers sequential read/write speeds of up to 14,000/13,000 MB/s, random read/write performance up to 2,000,000/1,650,000 IOPS, and a TBW rating of 1400. The compact 22 x 80 mm form factor and 11 g weight make it suitable for desktop and laptop upgrades; the operating temperature range is 0–70 °C. Protect the SSD from moisture during storage and installation.

Advantages

The SSD offers extremely high sequential and random transfer rates enabled by PCIe Gen5 x4 and NVMe 2.0, allowing fast load times and rapid file transfers. A 2 TB capacity provides ample space for large applications, games and media, while a TBW rating of 1400 indicates durability for sustained write workloads. The M.2 2280 form factor is compact and compatible with modern motherboards that support M.2 PCIe drives.

Suitable for

• Gaming systems requiring fast game load and install times
• Content creation workflows (video editing, 3D assets, large project files)
• System and application drive for high-performance desktops and laptops
• Fast storage upgrades where PCIe Gen5 x4 M.2 slots are available

Key specifications

• Form factor: M.2 2280 (22 × 80 mm)
• Interface: PCI Express 5.0 x4
• Protocol: NVMe 2.0
• Capacity: 2 TB
• Sequential read speed (CDM): up to 14,000 MB/s
• Sequential write speed (CDM): up to 13,000 MB/s
• Random read (4KB): up to 2,000,000 IOPS
• Random write (4KB): up to 1,650,000 IOPS
• TBW (endurance): 1400
• Operating temperature: 0–70 °C
• Dimensions (H×W×D): 3.8 mm × 22 mm × 80 mm
• Weight: 11 g

How to use

Install the SSD into an available M.2 PCIe Gen5 x4 slot on a compatible motherboard following the motherboard manufacturer’s installation instructions. Secure the M.2 2280 module with the appropriate standoff and screw, then format and initialize the drive in your operating system before use. Ensure your system firmware/BIOS and drivers support NVMe and PCIe 5.0 to achieve maximum performance.

Recommendations

Store and install the SSD in a dry environment and protect it from moisture. For sustained peak performance, use on systems with adequate cooling and up-to-date firmware; back up important data regularly.
