STABILA LAR 160 Set de láser rotativo de 5 piezas con receptor, trípode, mira niveladora y maletín

Precision horizontal levelling and alignment on large construction sites can be challenging without the right equipment. The STABILA LAR 160 5-piece rotary laser set provides a complete solution for professionals who need accurate, reliable horizontal levelling over long distances. With a working range of up to 600 metres in diameter when used with the included receiver, this self-levelling rotary laser ensures fast and precise measurements even in bright outdoor conditions.

Who is it for

This set is ideal for builders, surveyors, landscapers, and contractors who require a robust and accurate tool for site levelling, foundation alignment, and interior fit-out tasks. It is particularly suited for users who need to work over large areas and in demanding environments, thanks to its IP65 protection against dust and water.

Main features

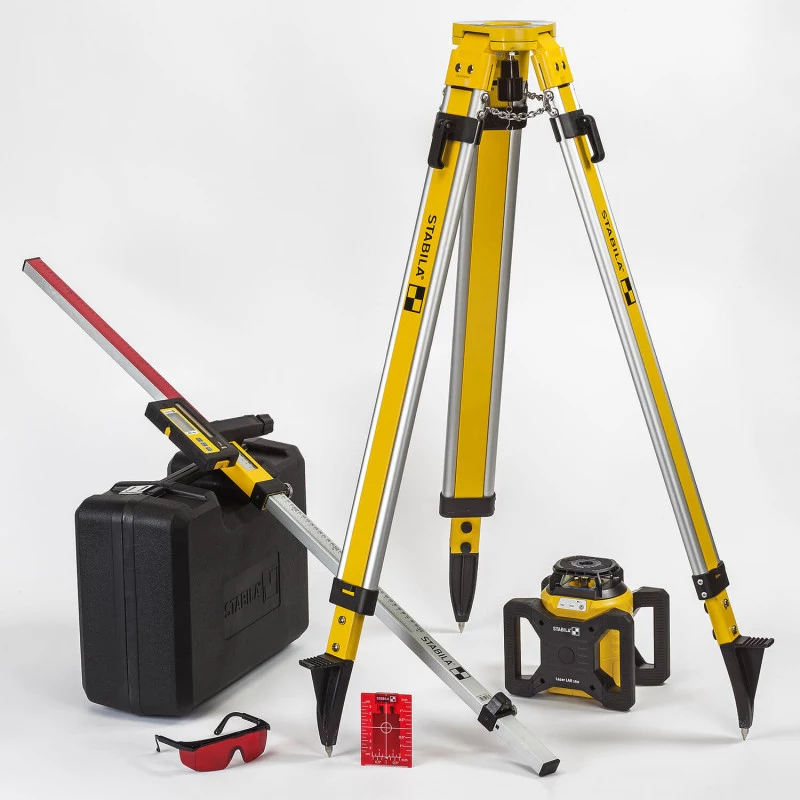

• Complete 5-piece set: LAR 160 rotary laser, REC 160 R receiver, BT 170 H tripod, NL levelling rod, and carrying case.
• High accuracy of ±0.1 mm/m for precise levelling.
• Self-levelling range of ±5° with automatic horizontal levelling.
• Working range up to 600 m diameter with receiver.
• Rotation speed of 600 rpm for fast and continuous reference lines.
• Manual tilt function for setting slopes in one axis.
• IP65 protection class for durability on site.
• Long operating time of approximately 24 hours with 2 x D batteries.
• Digital receiver with acoustic guidance for easy detection of the laser beam.

Specifications

• Laser class: 2
• Laser wavelength: 635 nm (red)
• Accuracy: ±0.1 mm/m
• Self-levelling range: ±5°
• Working range with receiver: 600 m diameter
• Rotation speed: 600 rpm
• Operating time: approx. 24 hours
• Power source: 2 x D 1.5V batteries
• Protection class: IP65
• Tripod connection: 5/8"
• Operating temperature: -10°C to +50°C

Tips

For best results, set up the tripod on stable ground and allow the laser to self-level before starting work. Use the receiver with acoustic guidance to quickly locate the beam in bright outdoor conditions. When working on slopes, engage the manual tilt function to set the desired incline.
