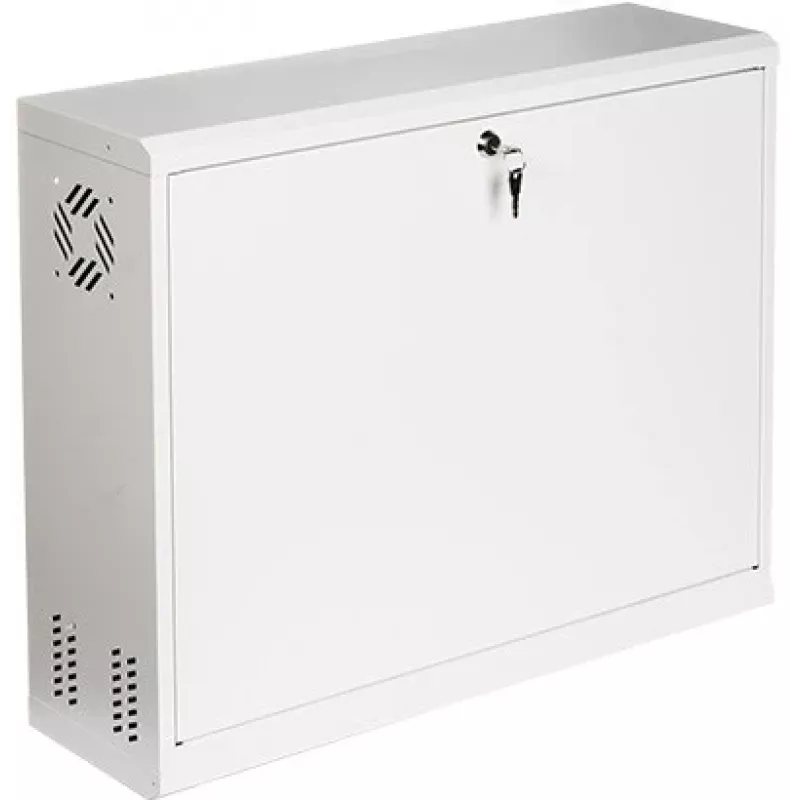

STALFLEX CR19-3U-180-W Caja de pared de 19 pulgadas 3U, Blanco, 180 mm de profundidad

The STALFLEX CR19-3U-180-W is a high-quality 19-inch wall mount rack cabinet designed for secure and efficient installation of network and IT equipment. With a 3U height and 180mm depth, this compact enclosure is ideal for small to medium-sized setups where space is at a premium. Constructed from cold-rolled steel with a durable powder-coated white finish, it offers robust protection for your valuable components.

Advantages

This wall mount rack cabinet provides a professional and organized solution for mounting 19-inch equipment. The tempered glass front door with key lock ensures security while allowing easy monitoring of equipment status. Adjustable mounting rails accommodate various device depths, and top/bottom cable entry knockouts simplify cable management. The passive ventilation design (perforated top and bottom) helps maintain optimal operating temperatures without active cooling.

Suitable for

• Network switches, patch panels, and routers in small server rooms or wiring closets
• Audio/video equipment in commercial or residential installations
• Security system components such as DVRs and power supplies
• Any 19-inch rack-mountable device requiring a compact, wall-mounted enclosure

Key specifications

• Rack Standard: 19-inch
• Rack Units (U): 3U
• External Dimensions (W x H x D): 530 x 180 x 180 mm
• Mounting Type: Wall-mount
• Material: Cold-rolled steel, powder coated
• Door: Tempered glass front door with key lock
• Side Panels: Fixed
• Cable Entry: Top and bottom knockouts
• Mounting Rails: Two pairs, adjustable depth
• Load Capacity: 20 kg
• IP Rating: IP20
• Colour: White
• Ventilation: Passive (perforated top/bottom)
• Construction: Welded frame, fully assembled
• Compliance: RoHS, CE

Recommendations

For optimal performance, ensure the wall mount rack is securely attached to a solid wall capable of supporting the total weight of the cabinet and installed equipment. Use appropriate fixings (not included) suitable for the wall type. Plan cable routing through the top or bottom knockouts to maintain a tidy installation.
