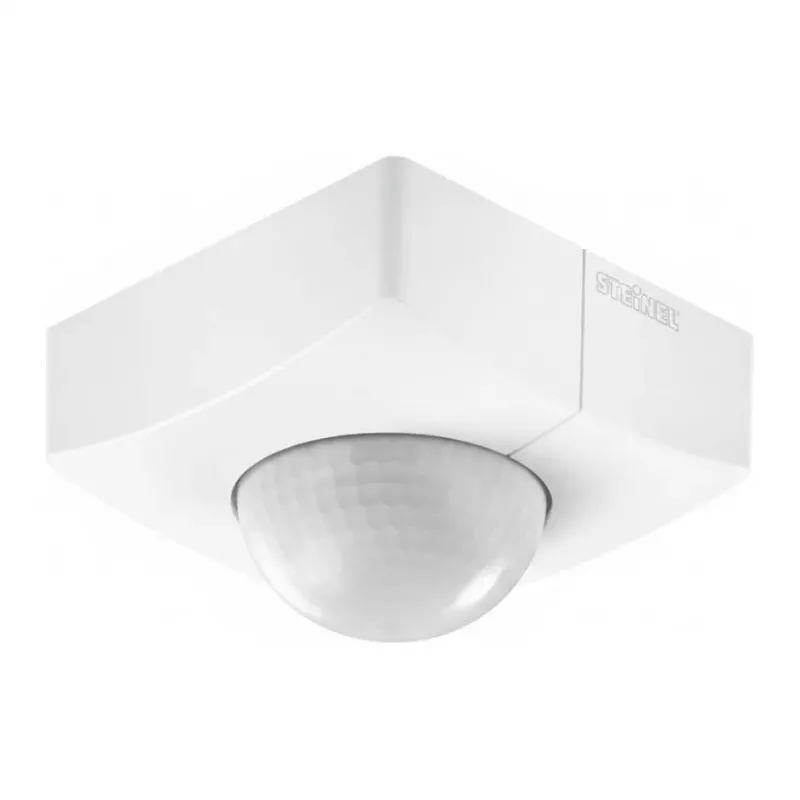

Steinel IS 3360 MX-E DALI2 AP WS detector de movimiento por infrarrojos pasivo

The Steinel IS 3360 MX-E DALI2 AP WS is a high-performance passive infrared (PIR) motion detector designed for professional indoor and outdoor use. With a 360° detection angle and a maximum range of 12 meters (tangential), it provides reliable presence detection and constant light control. The device features a DALI-2 interface, making it ideal for integration into modern building automation systems. Its surface-mounted design allows for easy installation on ceilings or walls, and the IP54 rating ensures protection against dust and water splashes.

Advantages

This motion detector offers precise detection with 1416 switching zones and 12 detection levels, minimizing false triggers. The adjustable time setting (30 seconds to 30 minutes) and twilight setting (2-1000 lux) provide flexibility for various applications. The UV-resistant plastic housing ensures long-lasting durability, even in harsh environments.

Suitable for

• Large indoor areas such as corridors, stairwells, and parking garages
• Outdoor areas requiring reliable motion detection
• Building automation systems with DALI-2 compatibility
• Energy-efficient lighting control in commercial and industrial settings

Key specifications

• Sensor technology: Passive Infrared (PIR)
• Detection angle: 360°
• Detection range (max.): 12 m (tangential)
• Mounting type: Surface-mounted (ceiling/wall)
• Installation height: 2.5 - 4 m (optimal 2.8 m)
• Interface: DALI-2 (Input Device)
• IP rating: IP54
• Operating temperature: -20 to +50 °C
• Time setting: 30 sec - 30 min
• Twilight setting: 2 - 1000 Lux
• Power supply: DALI Bus (10-22V DC)
• Colour: White
• Material: UV-resistant plastic

Recommendations

For optimal performance, install the detector at a height of 2.8 meters and ensure the detection area is free of obstructions. This device is compatible with DALI-2 lighting systems and can be used for both presence detection and constant light control.
