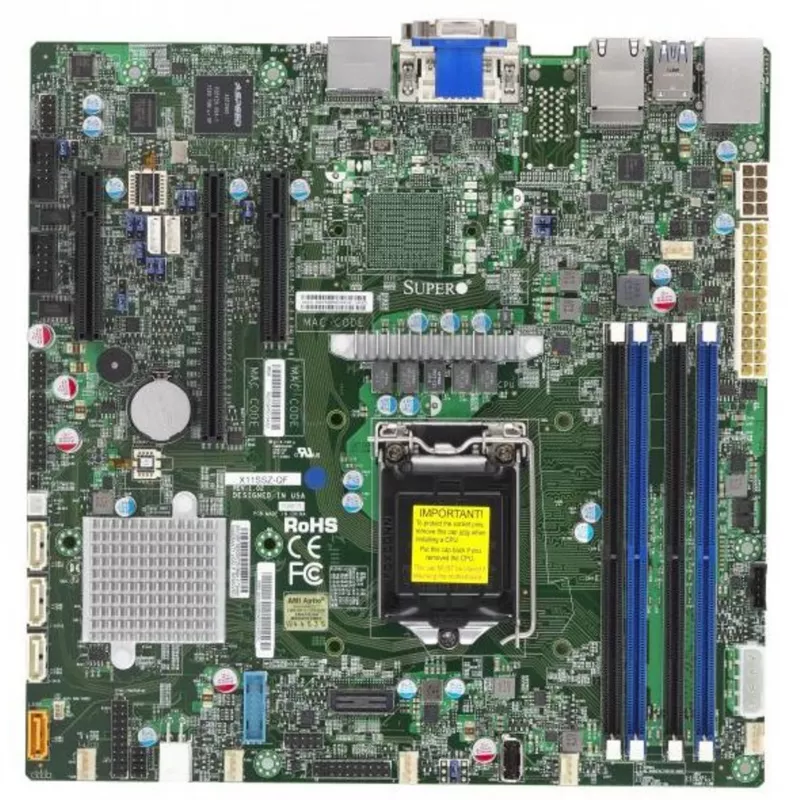

Supermicro X11SSZ-QF Placa base Micro-ATX, LGA 1151, Intel C236, DDR4, doble Gigabit LAN, IPMI, gráficos integrados, audio HD

The Supermicro X11SSZ-QF is a high-performance Micro-ATX motherboard designed for Intel Xeon E3-1200 v5/v6 and 6th/7th Gen Core processors. Featuring the Intel C236 chipset, it supports up to 64GB of DDR4 ECC/Non-ECC memory and offers extensive expansion options. With dual Gigabit Ethernet, IPMI 2.0 remote management, and onboard graphics, this motherboard is ideal for server and workstation applications.

Advantages

Reliable and stable platform with IPMI 2.0 for remote monitoring and control. Supports ECC memory for data integrity. Dual Intel i210-AT Gigabit LAN controllers provide high-speed networking. Onboard graphics via Aspeed AST2400 BMC and Intel HD Graphics offer flexible display options.

Suitable for

• Small to medium business servers
• Workstations requiring ECC memory support
• Home lab and virtualization environments
• Embedded and industrial applications

Key specifications

• CPU Socket: LGA 1151
• Supported CPUs: Intel Xeon E3-1200 v5/v6, 6th/7th Gen Core i3/Pentium/Celeron
• Chipset: Intel C236
• Form Factor: Micro-ATX
• Memory: 4 x DDR4 DIMM slots, up to 64GB, ECC/Non-ECC, up to 2400MHz
• Expansion Slots: 1 x PCIe 3.0 x16, 2 x PCIe 3.0 x4 (in x8), 1 x PCIe 3.0 x1
• Storage: 8 x SATA3 (6Gbps), RAID 0/1/5/10 (Intel RSTe)
• LAN: Dual Gigabit Ethernet (Intel i210-AT)
• Video Output: 1 x VGA, 1 x DVI-D, 1 x HDMI, 1 x DisplayPort
• Audio: Realtek ALC888S, 7.1-Channel HD Audio
• USB: 2 x USB 3.0, 2 x USB 2.0 (rear)
• IPMI: IPMI 2.0 with KVM over IP (dedicated LAN)
• Power: 24-pin ATX, 8-pin EPS

Recommendations

For optimal performance, pair with Intel Xeon E3-1200 v6 processors and ECC DDR4 memory. Ensure adequate cooling for the CPU and chipset.
