Switch de red de sobremesa TP-Link 8 puertos 10/100Mbps

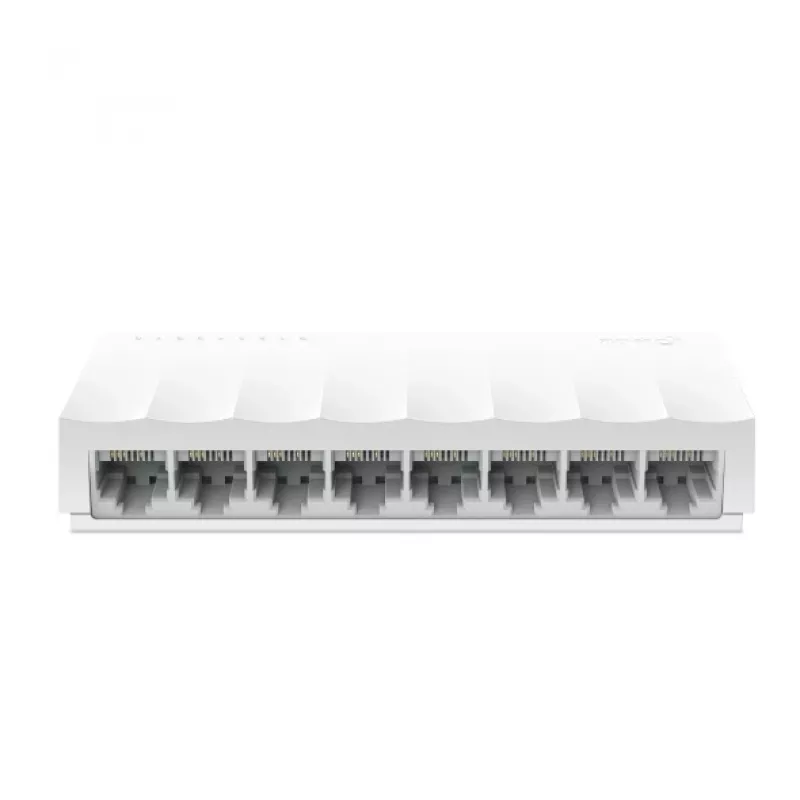

The TP-Link LiteWave Series Unmanaged Switch (model LS1008) is an 8‑port 10/100Mbps desktop network switch designed to expand wired networks simply and reliably. This unmanaged Fast Ethernet switch offers plug‑and‑play operation, Auto‑MDI/MDIX on all ports and a compact, fanless design for quiet desktop use. It supports IEEE 802.3i/802.3u/802.3x standards and uses a DC‑in power connector.

Advantages

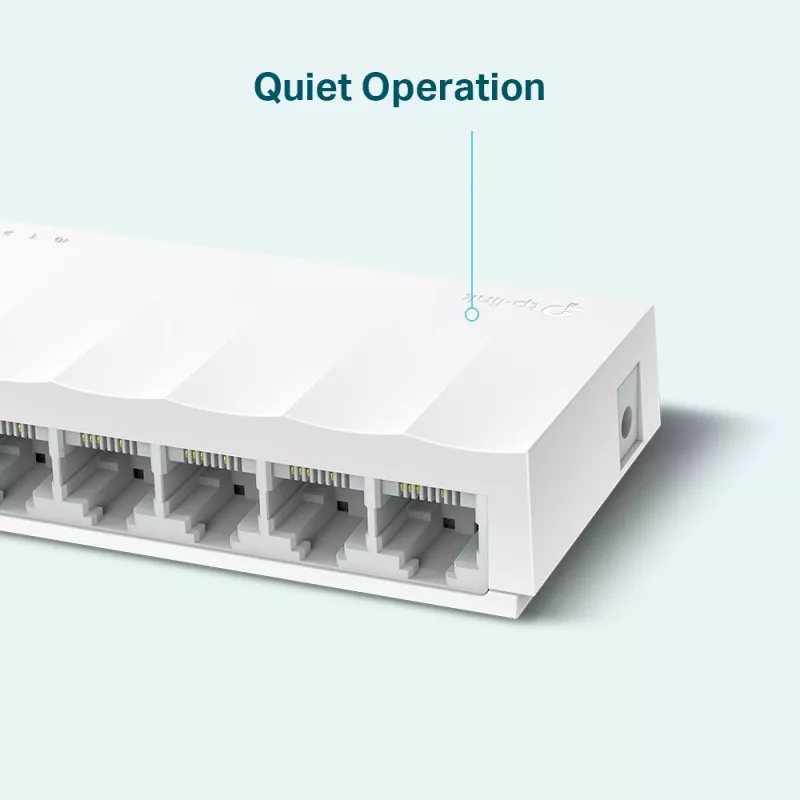

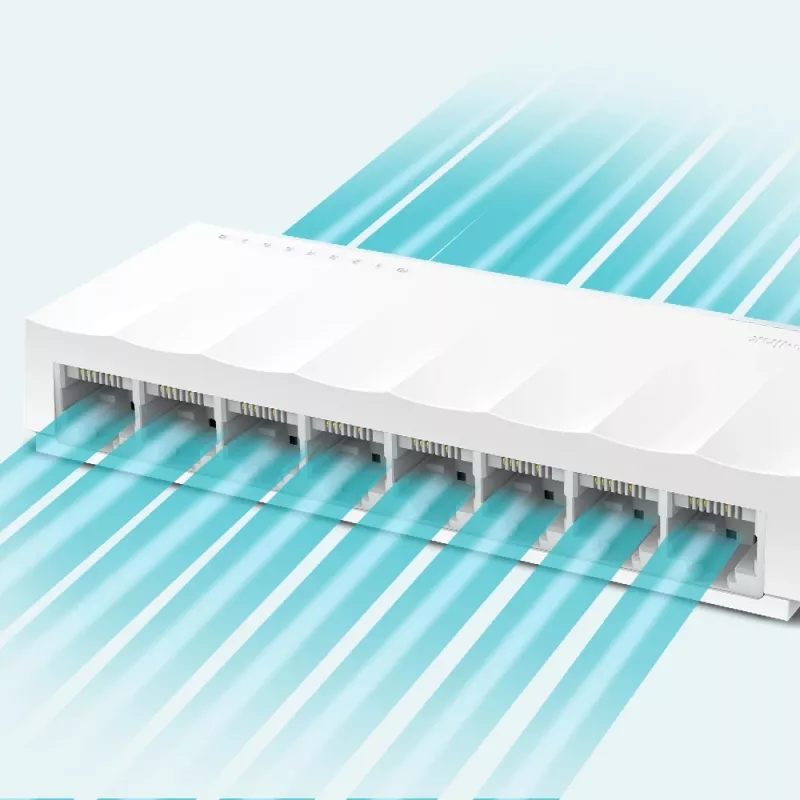

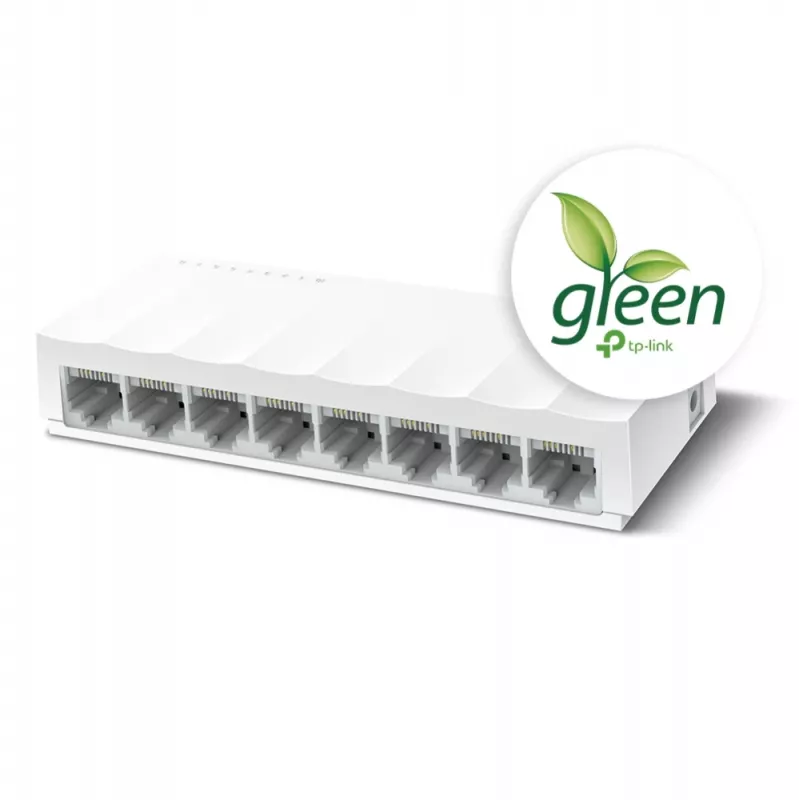

The switch provides eight Fast Ethernet ports with a switching capacity suitable for small office or home networks, a MAC address table for device learning, and Auto‑MDI/MDIX to eliminate the need for crossover cables. Energy‑efficient technology adjusts power consumption based on link status and cable length to reduce power use. The fanless, compact white chassis is suited for desktop placement and quiet operation.

Suitable for

• Expanding wired connections for home networks
• Small office / home office (SOHO) networking
• Connecting computers, printers and IP cameras
• School dormitory or shared living network setups
• Basic surveillance and IPTV device connections

Key specifications

• Model: LS1008
• Ports: 8 × 10/100Mbps Fast Ethernet (RJ‑45)
• Switching capacity: 1.6 Gbit/s
• MAC address table: 2000 entries
• Networking standards: IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
• Auto‑MDI/MDIX: All ports
• Power: DC‑in connector
• Colour: White
• Switch type: Unmanaged

How to use

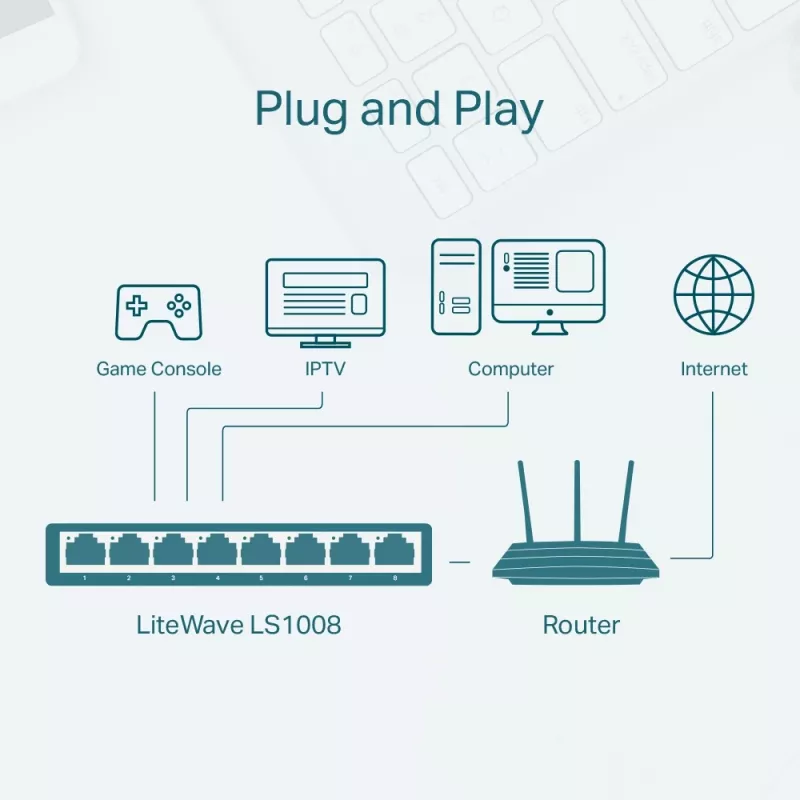

Place the LS1008 on a flat surface near your router or modem and connect its DC power adapter to the power socket. Use standard Cat5e/Cat6 Ethernet cables to connect your router to any LAN port on the switch and then connect your devices to the remaining ports. The switch is plug‑and‑play and requires no additional configuration; the LEDs indicate link and activity status for each port.

Recommendations

Install the switch in a well‑ventilated indoor location away from direct heat or moisture. For best performance, use quality Cat5e or Cat6 cables and place the switch on a stable surface; since the device is unmanaged, monitor network needs and consider a managed switch if you require VLANs, QoS configuration or advanced traffic control.
