Switch Ethernet gestionado PLANET Industrial L2+ 16 puertos 10/100/1000T PoE 4 puertos 10G SFP+

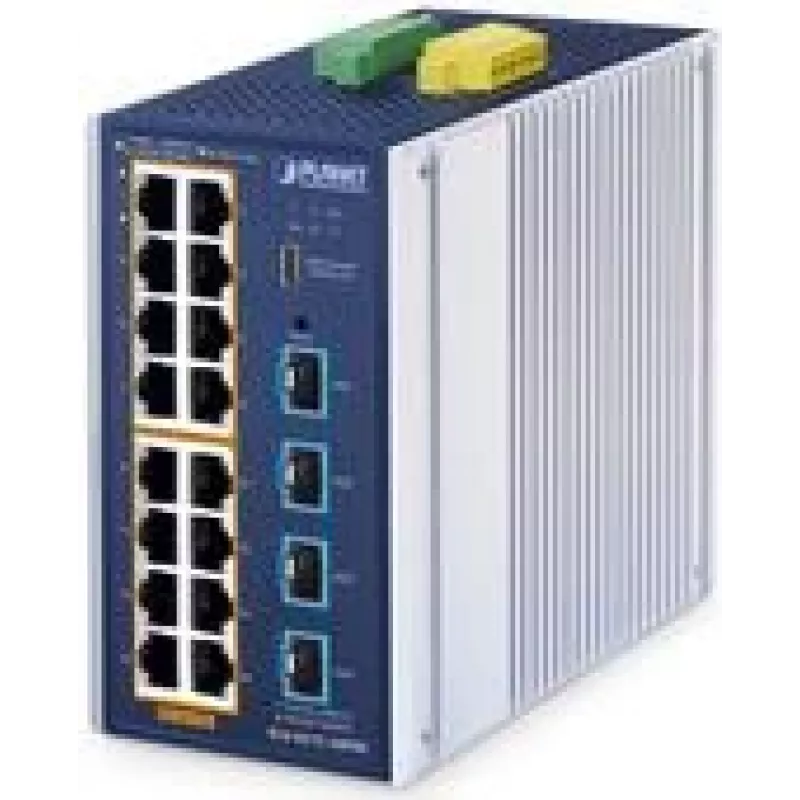

The PLANET IGS-4215-16P4X is an industrial L2+ managed Gigabit PoE+ switch with 16 10/100/1000BASE-T ports supporting IEEE 802.3at PoE+ (up to 36 W per port) and four 10GBASE-X SFP+ slots for high-speed uplinks. Equipped with L2+ static routing (IPv4/IPv6), advanced PoE management, Modbus TCP support for SCADA integration, and a rugged IP30 aluminum enclosure, the switch is designed for demanding industrial environments and offers dual power inputs for a maximum 360 W PoE budget, extended operating temperatures (-40 to 75 °C), and a USB Type-C console for management.

Advantages

The IGS-4215-16P4X provides high PoE power density and multiple 10G uplink options within a DIN-rail, industrial-rated chassis. It supports static L3 routing to improve inter-VLAN communication and includes cybersecurity features (SSHv2, TLS1.3, SNMPv3, RADIUS, TACACS+), Modbus TCP for factory automation monitoring, redundant ring and ERPS fast-recovery for high availability, and SFP-DDM diagnostics for optical transceivers. Advanced PoE functions such as PD alive check, scheduled power recycling and PoE scheduling help maintain device uptime and reduce energy consumption.

Suitable for

• Industrial Ethernet networks and plant-floor automation integrating SCADA/HMI via Modbus TCP
• IP surveillance systems with multiple PoE IP cameras and ONVIF device management
• Wireless network deployments requiring multiple PoE access points
• Enterprise edge and SMB sites needing VLAN routing, QoS and Layer 2/Layer 3 control
• Long-distance fiber uplinks and aggregation using 10G SFP+ connections

Key specifications

• Model: PLANET IGS-4215-16P4X (MPN: IGS-4215-16P4X)
• Ports: 16 x 10/100/1000T PoE+ ports, 4 x 10G SFP+ slots
• PoE standard and per-port power: IEEE 802.3at PoE+, up to 36 W per port
• Total PoE power budget: 360 W (with dual power inputs)
• Switching capacity: 112 Gbit/s
• Layer support: L2 features plus IPv4/IPv6 static L3 routing
• Management: Web GUI, CLI (Telnet/SSH/console via USB-C), SNMP (SNMPv3 supported)
• Industrial design: IP30 aluminum case, operating temperature -40 to 75 °C
• Security: DHCP Snooping, IP Source Guard, Dynamic ARP Inspection, ACLs, RADIUS/TACACS+
• Extra: Modbus TCP, ONVIF support, DI/DO terminal block, SFP-DDM
• Weight and colour: approx. 1.754 kg; aluminium/blue

How to use

Install the switch on a DIN-rail in a suitable industrial cabinet or enclosure and connect power using the provided dual power inputs for full PoE budget when required. Connect Ethernet devices to the Gigabit PoE+ ports and fiber uplinks to the SFP+ slots using compatible transceivers. Configure network settings, VLANs, static IPv4/IPv6 routes, QoS and security policies through the web GUI, SSH/console or SNMP management. For SCADA or HMI integration, enable Modbus TCP and map the required monitoring parameters. Use the ONVIF function in the web GUI to discover and manage ONVIF-compliant cameras and to upload floor plans for camera placement.

Recommendations

For maximum PoE capacity (360 W) ensure both power inputs are connected to redundant power sources. Use PoE scheduling and scheduled power recycling to reduce energy usage and improve device stability. When extending PoE beyond 100 m, enable the Extend mode to supply up to 15 W at distances up to 250 m at 10 Mbps duplex. Use 10G SFP+ transceivers matched to required distance (SR/LR) and monitor SFP parameters using DDM for preventive maintenance.
