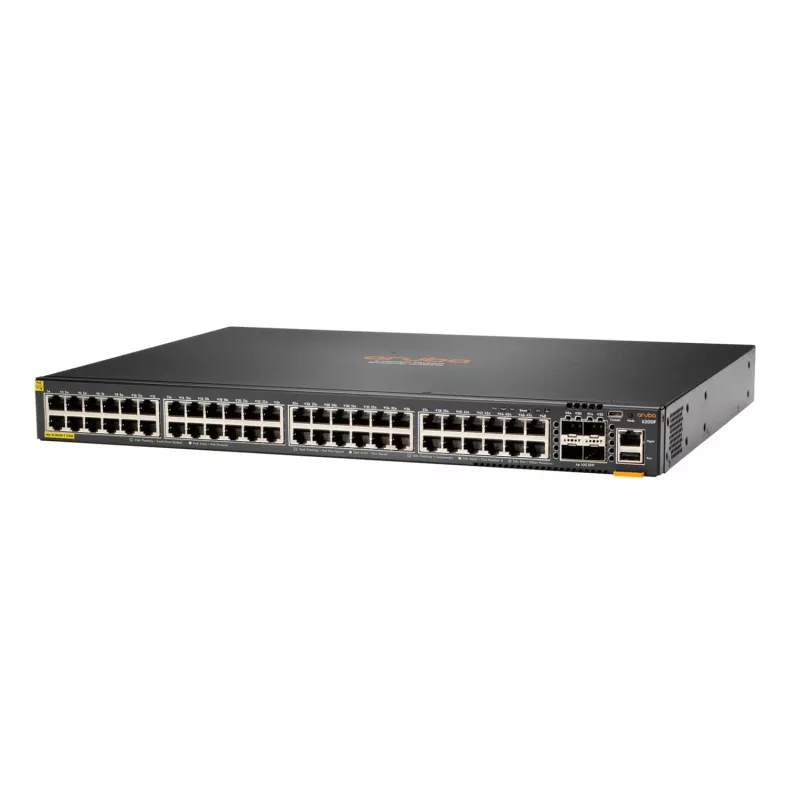

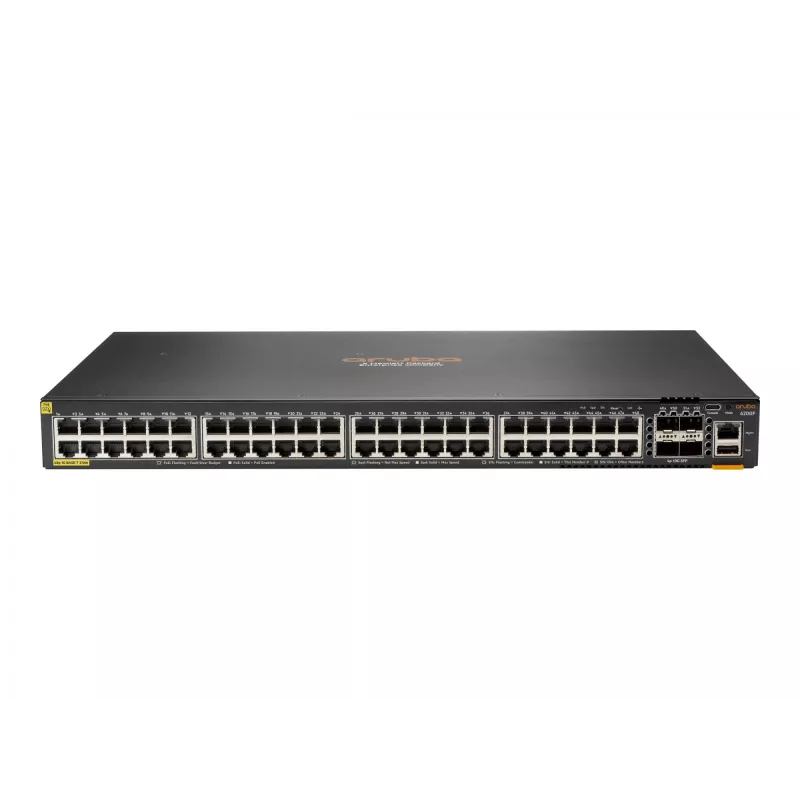

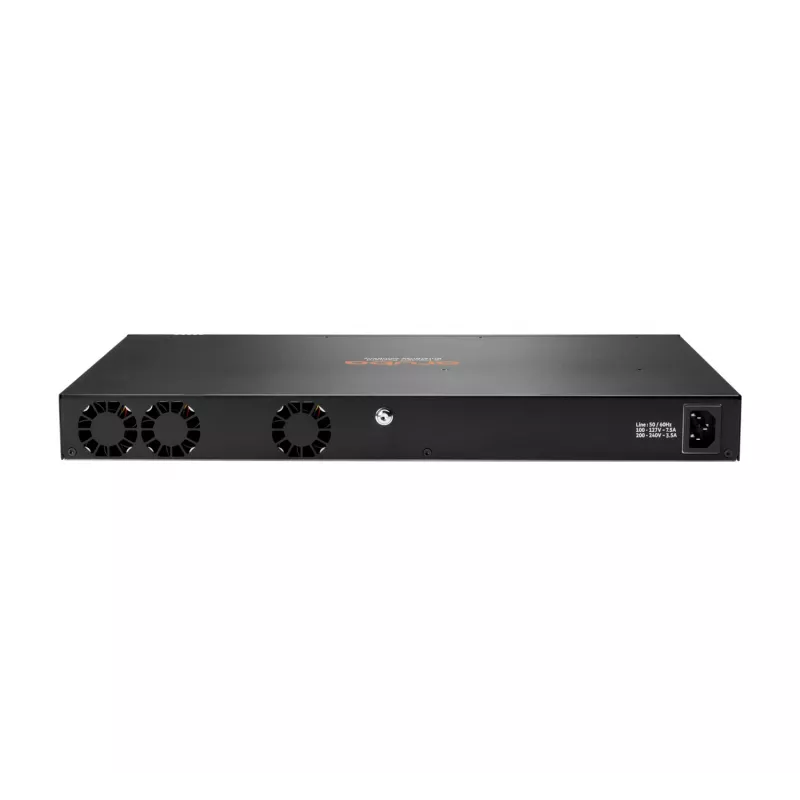

Switch gestionado HPE Aruba Networking CX 6200F 48G PoE 4SFP+ 370W

The HPE Aruba Networking CX 6200F 48G PoE 4SFP+ 370W (JL727B) is a managed Layer 3 access switch with 48 Gigabit Ethernet ports, four SFP+ uplink slots and 370 W of PoE budget. Built on Aruba Gen7 ASIC architecture and the Aruba CX software platform, this switch delivers wire-speed switching, advanced telemetry and programmable automation for enterprise branch offices, campus access layers and SMB networks. It supports stacking with Aruba Virtual Stacking Framework (VSF) and integrates with Aruba NetEdit and the Aruba CX Mobile App for simplified configuration and validation.

Advantages

The CX 6200F provides low-latency, non-blocking performance and distributed switching using Aruba Gen7 ASICs, together with built-in analytics via the Aruba Network Analytics Engine (NAE) for real-time monitoring and troubleshooting. Automation features include Python agents, REST APIs, a time-series database for operational state, and compatibility with Aruba NetEdit for rapid, safe network-wide changes. The unit supports up to 370 W PoE to power wireless access points and IoT devices, offers four SFP+ 10G uplinks for high-speed connectivity, and can be stacked with up to eight members for simplified management and scale.

Suitable for

• Enterprise branch offices and campus access-layer deployments
• Small and medium business (SMB) networks requiring managed L3 switching
• Environments needing PoE to power APs, IP cameras and other IoT devices
• Networks that require automated configuration validation and analytics

Key specifications

• Model: HPE Aruba Networking CX 6200F 48G PoE 4SFP+ 370W (JL727B)
• Ports: 48 x Gigabit Ethernet (10/100/1000) RJ-45
• Uplinks: 4 x SFP+ (10G)
• PoE budget: 370 W (IEEE 802.3at/802.3af support)
• Switching capacity: 176 Gbit/s
• MAC address table: 32768 entries
• Stacking: Aruba Virtual Stacking Framework (up to 8 switches)
• Management: Aruba CX OS, Aruba NetEdit, Aruba CX Mobile App, REST APIs
• Weight: 5.1 kg
• Standards: IEEE 802.1Q, 802.1p, 802.3az, 802.3x, 802.3ad, 802.3ae, 802.3at, 802.3af, 802.1AX, 802.1D, 802.1s, 802.1w, 802.1v, 802.1ab, 802.3z, 802.3ab

How to use

Rack-mount the switch and connect power and uplink SFP+ modules as required. Use the Aruba CX Mobile App for initial discovery and basic configuration or import device data into Aruba NetEdit to perform template-based provisioning and validation. Configure VLANs, Layer 3 interfaces and PoE profiles through the Aruba CX operating system or via REST APIs and automation scripts. For redundancy and simplified management, create an Aruba VSF stack by connecting member switches using the supported stacking ports or SFP+ links and follow Aruba stacking procedures.

Recommendations

Deploy the CX 6200F in access-layer roles where managed L3 features, PoE delivery and integrated analytics are required. Use Aruba NetEdit to validate configurations after bulk changes and enable the Network Analytics Engine to collect telemetry for faster troubleshooting. Plan PoE power allocation according to connected device classes to avoid exceeding the 370 W budget.
