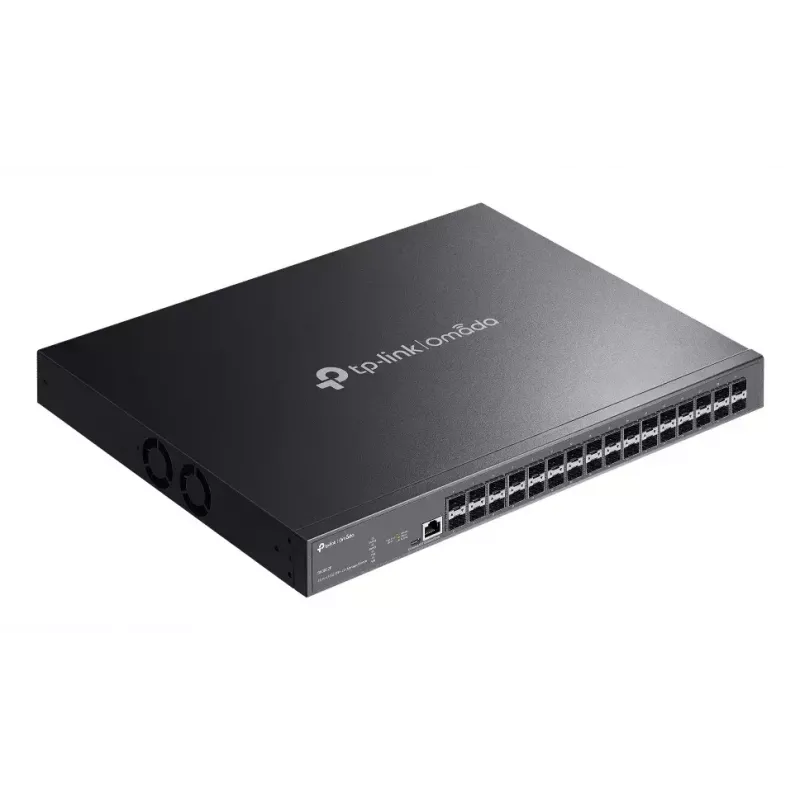

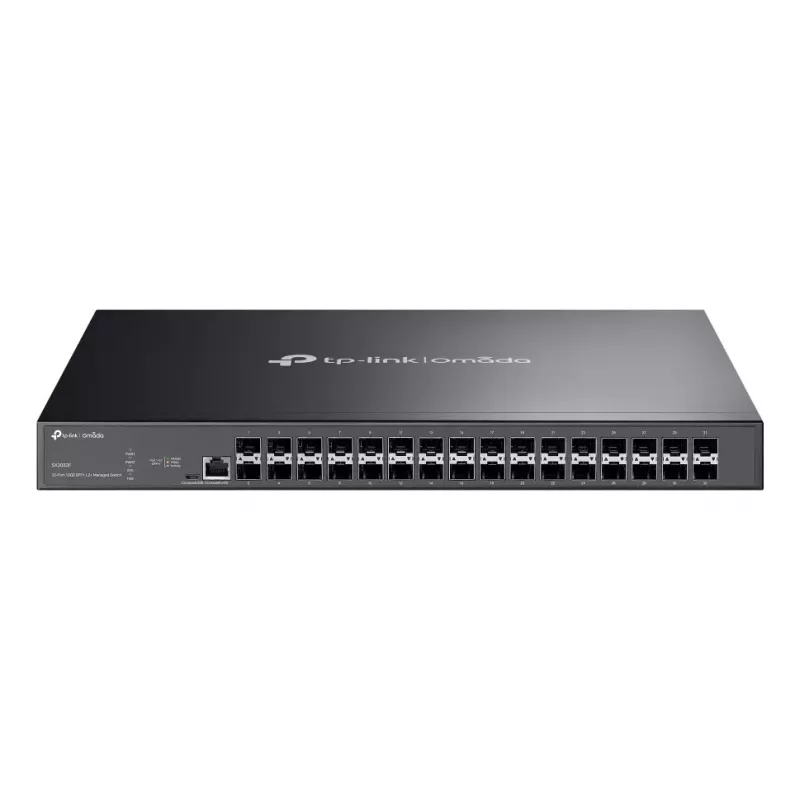

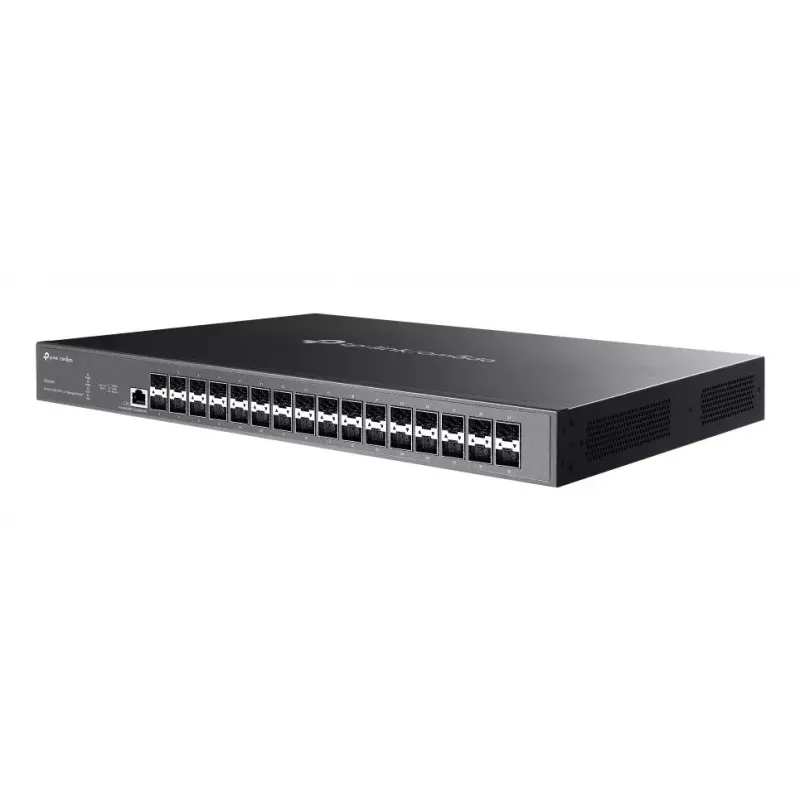

TP-Link Omada switch gestionado L2+ de 32 puertos 10GE SFP+

The TP-Link Omada SX3032F is a Managed L2+ switch equipped with 32 SFP+ 10G ports and one RJ‑45 Ethernet port. Designed for building full 10G multi‑gigabit networks, it provides a switching capacity of 640 Gbit/s and a MAC address table of 32,000 entries. The SX3032F supports standard L2+/L3 features and common networking protocols to enable reliable traffic management in enterprise and service provider environments.

Advantages

The Omada SX3032F offers high port density with 32 SFP+ 10G ports for fiber or direct‑attach connections, a 640 Gbit/s switching capacity to handle heavy throughput, and a large MAC address table for efficient forwarding. As a managed L2+ device, it supports IEEE 802.1Q VLAN tagging, IEEE 802.1x authentication and other industry standards for secure and segmented networks. The unit’s black rack‑mount design fits standard network cabinets.

Suitable for

• Data center uplinks and aggregation
• High‑capacity campus and enterprise core distribution
• Multi‑site networks requiring cloud‑managed Omada SDN control
• Service provider access and fiber backbone connections

Key specifications

• Switch type: Managed L2+
• Ports: 32 × SFP+ (10G), 1 × RJ‑45 Ethernet
• Switching capacity: 640 Gbit/s
• MAC address table: 32,000 entries
• Supported standards: IEEE 802.3ah, IEEE 802.3x, IEEE 802.1x, IEEE 802.1p, IEEE 802.1ab, IEEE 802.1Q
• Colour: Black

How to use

Install the SX3032F in a standard 19‑inch rack and connect SFP+ transceivers or direct‑attach cables to the SFP+ ports for uplinks and aggregation. Use the RJ‑45 management port for initial out‑of‑band configuration or connect the device to your Omada SDN controller for centralized management. Configure VLANs, link aggregation, QoS, and 802.1x authentication through the switch’s web UI, CLI, or the Omada controller according to your network design.

Recommendations

For optimal performance, use compatible 10G SFP+ modules or DACs certified for the switch, keep firmware up to date, and manage the device via the Omada SDN controller when operating across multiple sites to simplify monitoring and policy enforcement.
