Switch gestionado Layer-3 Gigabit Ethernet PLANET IGS-6325-16P4S 16 puertos PoE

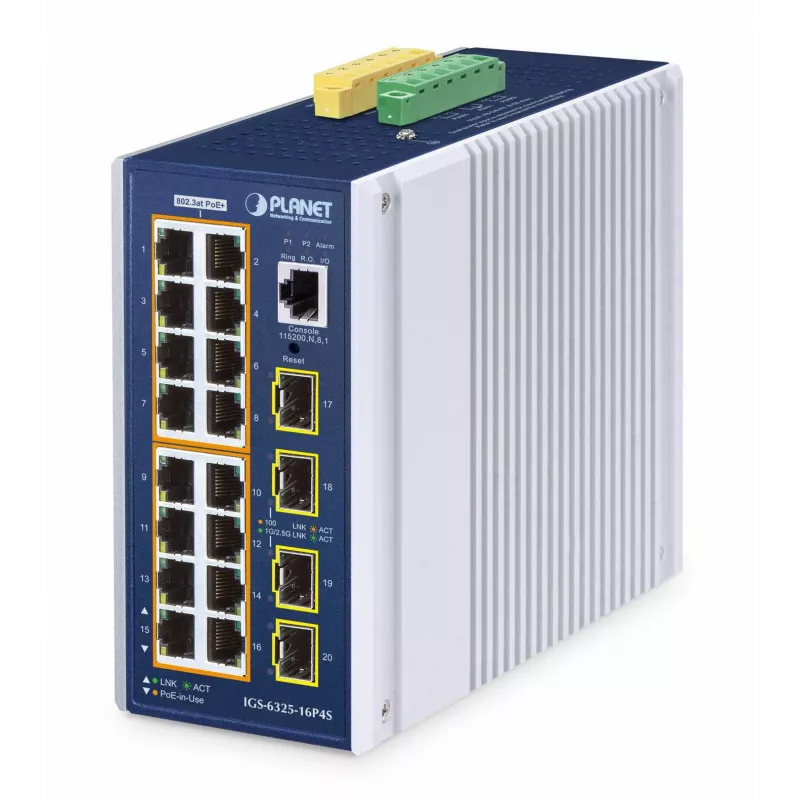

PLANET IGS-6325-16P4S is a managed Layer 3 gigabit Ethernet switch in an IP30 rugged metal case, offering 16 10/100/1000BASE-T PoE+ ports (up to 36 W per port) and 4 100/1000/2500BASE-X fiber SFP slots. Designed for harsh environments, it supports IPv4/IPv6 management, L2/L4 switching functions, OSPFv2 dynamic routing and ITU-T G.8032 ERPS ring recovery, with an overall PoE budget of 320 W and operating temperature range from -40 to 75 °C.

Advantages

The switch provides industrial-grade reliability and advanced security features including SSHv2, TLS/SSL, DHCP Snooping, IP Source Guard, ARP Inspection, 802.1x (port/MAC), RADIUS/TACACS+ and SNMPv3. It supports fast ring recovery (G.8032) and MSTP for high availability, high-power PoE for PTZ cameras and multi-radio APs, ONVIF device discovery, intelligent PoE alive check and PoE scheduling for energy saving. Additional functions include SMTP/SNMP event alerts, digital I/O for external alarms, SFP-DDM diagnostics and Modbus TCP for factory automation integration.

Suitable for

• Outdoor and indoor IP surveillance systems with multiple PoE cameras
• Wireless deployments requiring multi-channel, high-power PoE access points
• Industrial automation and SCADA/HMI integration using Modbus TCP
• Carrier or telecom edge with timing requirements (IEEE 1588)
• Factories and harsh environments requiring redundant ring and robust security

Key specifications

• Model: PLANET IGS-6325-16P4S
• Ports: 16 x 10/100/1000BASE-T PoE+ (802.3at), 4 x SFP (100/1000/2500BASE-X)
• PoE: up to 36 W per port, total PoE budget 320 W
• Switching capacity: 52 Gbps (as per product summary)
• Routing: Layer 3 IPv4/IPv6 static routes and OSPFv2 dynamic routing
• Redundancy: ITU-T G.8032 ERPS, MSTP (802.1s)
• Security: SSHv2, TLS/SSL, DHCP Snooping, IP Source Guard, ARP Inspection, 802.1x, RADIUS, TACACS+, SNMPv3
• Management: Web GUI, CLI/console, Telnet, SNMPv3
• Industrial features: Digital Input/Output, operating temperature -40 to 75 °C, IP30 metal casing
• SFP: supports 100BASE-FX and 1000BASE-SX/LX SFPs, SFP-DDM supported

How to use

Install the IGS-6325-16P4S on a DIN rail or rack as recommended for the IP30 enclosure and connect power to redundant inputs. Use the web-based GUI, CLI or SNMP management to configure VLANs, Layer 3 routing or OSPFv2, set up PoE schedules and ONVIF device discovery, and configure security policies (802.1x, ACLs, DHCP Snooping). Insert appropriate SFP transceivers for fiber links and monitor SFP parameters through DDM. Set up event alerts (SMTP/SNMP trap) and configure digital I/O actions for external alarms.

Recommendations

For stable operation in surveillance and wireless deployments, reserve sufficient PoE budget per port (up to 36 W) and use PoE scheduling or weekly power recycling to reduce device crashes; enable ring protection (G.8032) or MSTP for redundancy and configure SNMPv3/SSH for secure remote management.
