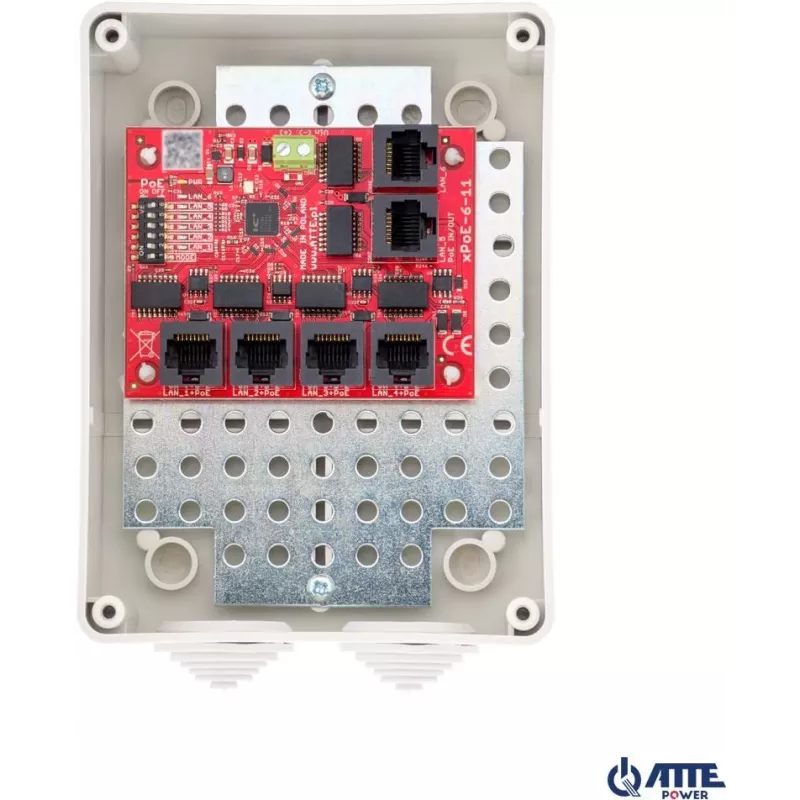

Switch PoE ATTE xPoE-6-11-S3 6 puertos, 4 puertos PoE, 2 uplink, 10/100 Mbps, presupuesto 60W, sobremesa/pared

The ATTE xPoE-6-11-S3 is a compact 6-port PoE switch designed for small to medium-sized networks requiring power and data over a single cable. With 4 PoE+ ports (30W each) and a total budget of 60W, it supports devices like IP cameras, VoIP phones, and wireless access points. Two additional uplink ports provide flexible connectivity. The switch features long-range PoE up to 250m, VLAN port isolation, QoS, and flow control, making it ideal for surveillance and office deployments.

Advantages

• Cost-effective PoE+ solution with 4 ports and 60W budget
• Long-range PoE extends reach to 250m for remote devices
• VLAN port isolation enhances security and traffic management
• QoS prioritizes critical traffic for smooth video and voice
• Metal housing for durability, desktop or wall-mount installation

Suitable for

• Small business networks
• IP surveillance systems
• VoIP phone deployments
• Wireless access point connectivity
• Remote device powering

Key specifications

• 6 Ethernet ports: 4 PoE+ (802.3af/at) + 2 uplink
• Port speed: 10/100 Mbps
• PoE power per port: up to 30W
• Total PoE budget: 60W
• Switching capacity: 1.2 Gbps
• Packet forwarding rate: 0.89 Mpps
• MAC address table: 1K entries
• Jumbo frame support: 1536 bytes
• Power supply: External DC 48V, 1.25A
• Max power consumption: 65W (with PoE)
• Operating temperature: -10°C to 50°C
• Storage temperature: -40°C to 70°C
• Operating humidity: 10% to 90% non-condensing
• Enclosure: Metal
• Mounting: Desktop / Wall-mount

Recommendations

For optimal performance, use quality Cat5e or higher cabling. The switch is plug-and-play, no configuration required. For advanced features like VLAN, access the web-based management interface.
