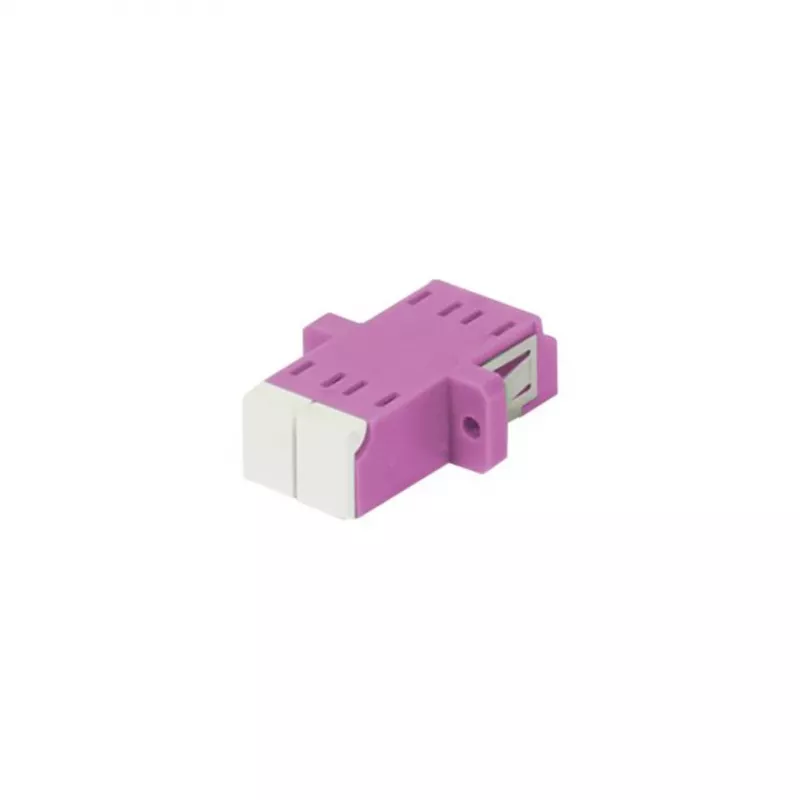

SYNERGY21 acoplador de fibra óptica LC-LC dúplex multimodo OM4, violeta erika, PVC, con brida, con tapa de protección láser unilateral

The SYNERGY21 LC-LC Duplex Multimode OM4 Fiber Optic Coupler (S215424V2) is a high-performance adapter designed for reliable fiber optic connections in data centers and LAN environments. Featuring a flanged design with one-sided laser protection shutter, this coupler ensures safe and efficient signal transmission.

Advantages

This coupler offers low insertion loss (<0.2 dB) and high return loss (>20 dB), ensuring minimal signal degradation. The durable PVC housing and 500 mating cycles guarantee long-term reliability. The integrated laser protection shutter enhances safety during installation and maintenance.

Suitable for

• Data centers requiring high-density fiber connections
• Local Area Networks (LAN) with OM4 multimode fiber
• Fiber optic patch panels and distribution frames

Key specifications

• Product Type: Fiber Optic Adapter / Coupler
• Adapter Type: LC to LC
• Connector Type: LC Female (both sides)
• Fiber Mode: Multimode
• Fiber Grade: OM4
• Core/Cladding Diameter: 50/125 µm
• Configuration: Duplex
• Color: Erika Violet
• Mounting Type: Flanged (Panel Mount)
• Special Feature: One-sided Laser Protection Shutter
• Housing Material: PVC
• Insertion Loss: < 0.2 dB (typical)
• Return Loss: > 20 dB (typical)
• Durability: 500 Mating Cycles
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Wavelength Compatibility: 850nm / 1300nm
• Compliance: RoHS Compliant

Recommendations

For optimal performance, pair with SYNERGY21 OM4 patch cables and ensure proper cleaning of connectors before mating. This coupler is ideal for high-speed network applications requiring reliable and secure fiber connections.
