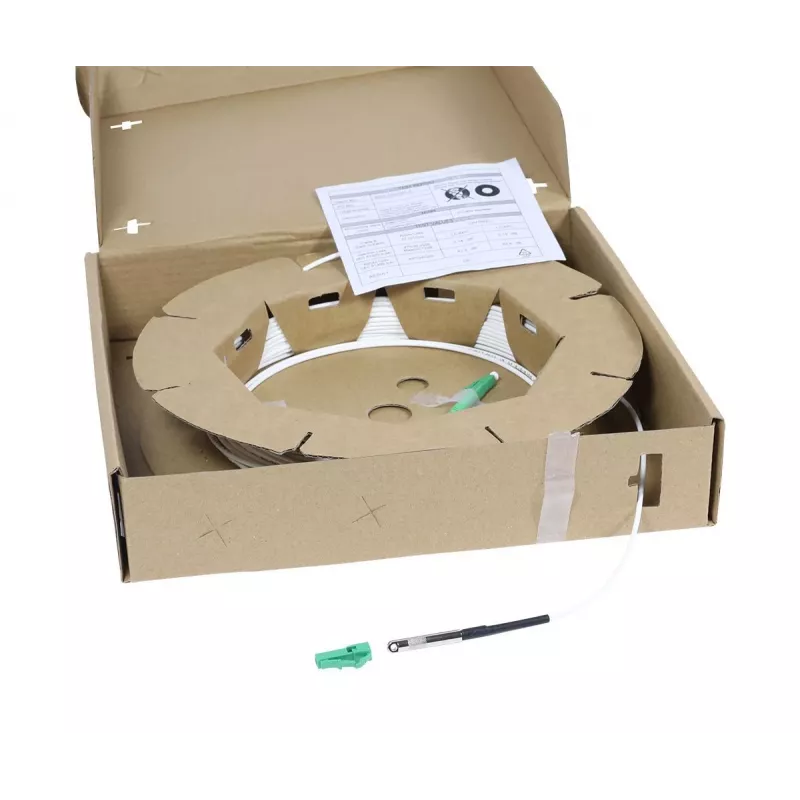

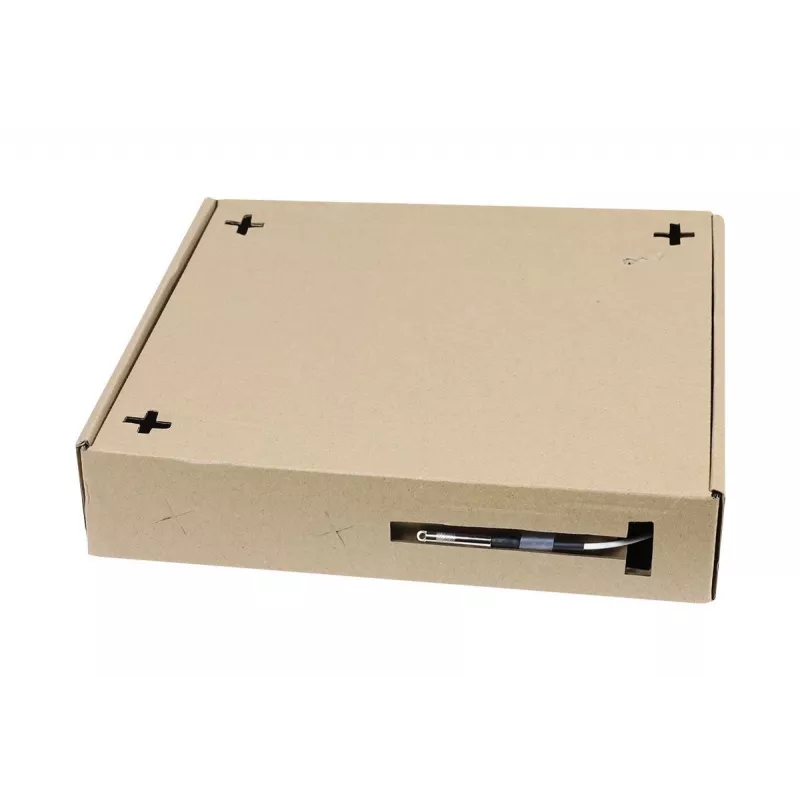

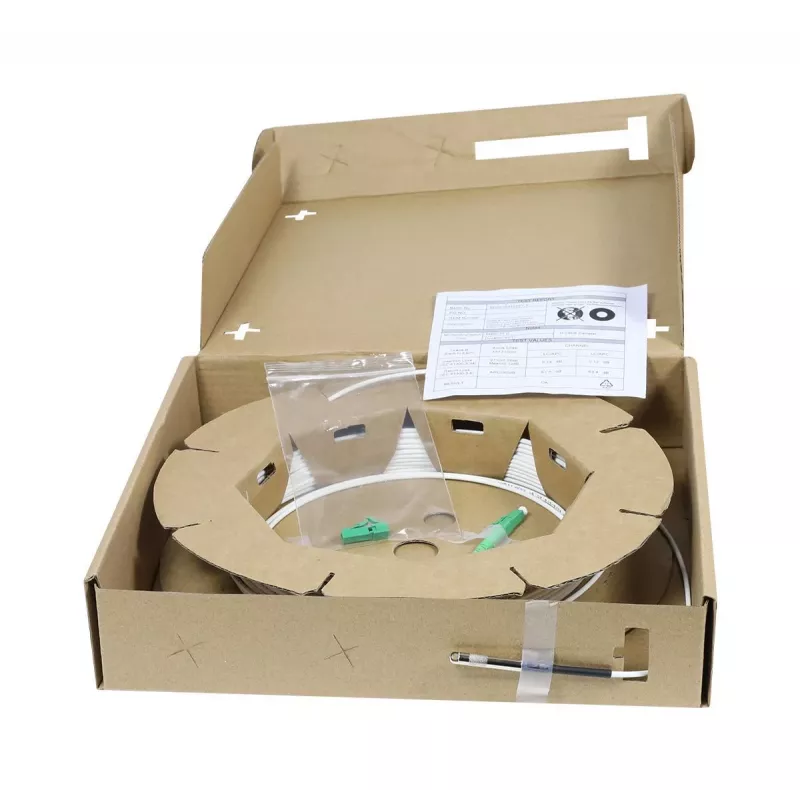

SYNERGY21 S218209 Cable de conexión de fibra óptica LC/APC a LC/APC OS2 monomodo 9/125µm G.657.A2 de 25m, 2,2mm, con guía de inserción

25-meter single-mode fiber patch cable with LC/APC connectors on both ends, built on bend-insensitive G.657.A2 fiber for reliable signal integrity even in tight routing scenarios. The 2.2mm jacket includes an integrated pulling aid, simplifying installation in conduits and cable trays.

Overview

The SYNERGY21 S218209 is a simplex OS2 fiber optic patch cable designed for high-performance connections in data centers, telecom rooms, and FTTH deployments. It uses 9/125µm single-mode fiber compliant with ITU-T G.657.A2, offering low attenuation and excellent bend resistance. Angled Physical Contact (APC) polish on both LC connectors minimizes back reflections, making it suitable for demanding optical networks.

What stands out

• Bend-insensitive G.657.A2 fiber tolerates tight bends without significant loss.
• LC/APC connectors ensure low return loss for stable, high-quality links.
• Integrated pulling aid speeds up installation and protects connectors during pulls.
• 25-meter length covers medium-distance patching between equipment and distribution panels.

Technical details

• Fiber type: Single-mode OS2, ITU-T G.657.A2
• Core/cladding diameter: 9/125 µm
• Connectors: LC/APC to LC/APC
• Polish: APC (Angled Physical Contact)
• Cable length: 25 m
• Jacket diameter: 2.2 mm
• Configuration: Simplex (1 fiber)
• Pulling aid: Integrated

Our verdict

A dependable, installer-friendly patch cable for single-mode links where bend performance and low reflections matter. The pulling aid is a practical touch that reduces installation effort and connector damage risk.
